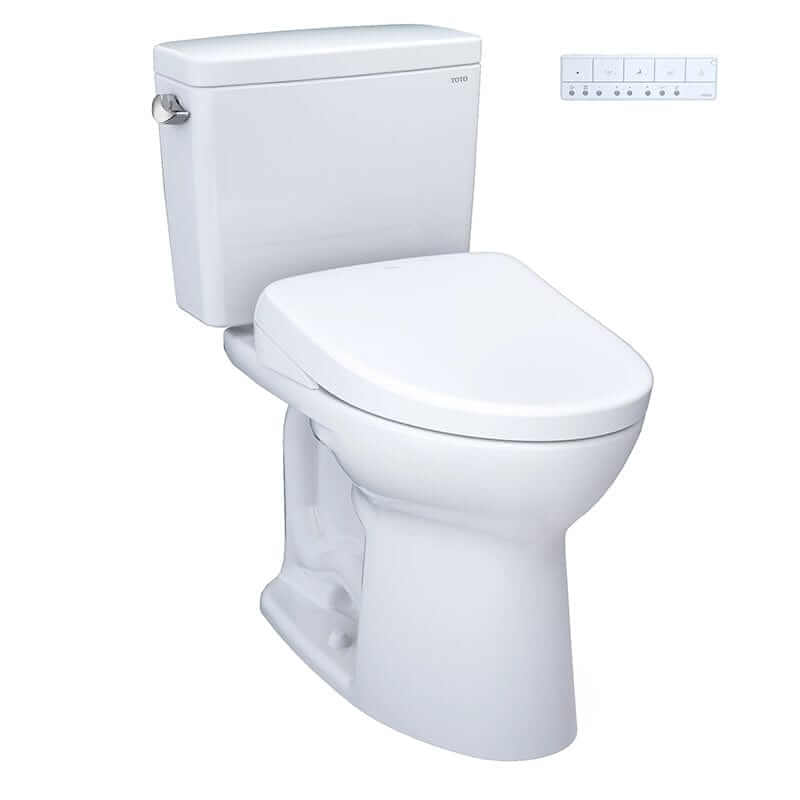

TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF toilet with bidet seat and control panel

TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF

TOTO
SKU: MW7764736CEGA#01

FREE Shipping + No Sales Tax

$2,644.00
$1,851.00
Style
Authorized TOTO National Dealer
Fast & Free Shipping On All Orders
Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.
Dedicated Customer Support Hundreds of 5-Star Reviews
Questions? Talk to a Real Person.
(877) 420-3443 Message Us

Buying more than one? Get volume pricing for contractors, builders and bulk orders.

TOTO Drake WASHLET+ S7A — MW7764736CEGA#01

The TOTO Drake WASHLET+ S7A Two-Piece Toilet puts TOTO's top-tier WASHLET+ S7A on a two-piece Drake body at TOTO's regular height that flushes at 1.28 GPF, and it is the only seat in the range with a touchless lid.

Choose the auto-flush configuration and the toilet flushes itself while the lid opens and closes untouched, so an ordinary visit needs no contact with the fixture at all; the standard configuration keeps the same seat and adds the kit only if you want it later.

  • Toilet Type: Two-piece WASHLET+ toilet
  • Height: Regular Height Toilet
  • Bowl Shape: Elongated
  • Flush: High-efficiency TORNADO FLUSH® — single 1.28 GPF (4.8 LPF)
  • Rough-In: 12"
  • Included WASHLET: WASHLET+ S7A (SW4736AT40)
  • Controls: Multifunction pearl white block-style remote, memory for up to 4 users
  • Auto Flush: Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model

High-efficiency TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single 1.28 GPF flush, which TOTO classes as high-efficiency.

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

Regular Height with a Concealed Connection

TOTO lists this Drake as a regular height toilet, and the WASHLET+ connection conceals the seat's supply line at the back of the bowl.

Adjustable Warm-Water Cleansing

The S7A washes front and rear with aerated warm water, with oscillating and pulsating modes and independently adjustable position, temperature and pressure.

Heated Seat and Five-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers five variable temperature settings.

Touchless Auto Open/Close Lid

The S7A is the only WASHLET tier with a touchless auto open/close lid, which is what separates it from the otherwise closely matched S7.

TOTO Drake S7A MW7764736CEGA Installation

TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF dimensions

TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF Compatibility

The TOTO Drake Washlet+ S7A is a two-piece elongated toilet with integrated smart bidet seat. Confirm these four things before ordering:

  • Rough-in measurement: 12-inch standard.
  • Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
  • Water supply: Standard ½-inch connection at the base of the toilet.
  • Electrical outlet: GFCI 120V within 3 feet (powers integrated WASHLET+ S7A bidet seat).

Installation steps

  1. Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
  2. Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
  3. Set the wax ring. Place a new wax ring on the flange, centered over the drain.
  4. Seat the new toilet. Lower the bowl onto the flange, press down firmly, and hand-tighten the bolts evenly.
  5. Attach the tank and connect. Bolt the tank to the bowl, reconnect the supply line, restore water, and plug into the GFCI outlet.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO Drake Washlet + S7A Two-Piece Downloads

TOTO Drake Washlet + S7A Two-Piece Installation Manual

TOTO Drake Washlet + S7A Two-Piece Spare Parts Manual

TOTO Drake Washlet + S7A Two-Piece Spec Sheet

Frequently Asked Questions about TOTO Drake S7A MW7764736CEGA

What's the difference between TOTO WASHLET and washlet+?

The WASHLET+ is designed to work seamlessly with certain TOTO toilets, hiding cords and creating a cleaner look, while a regular WASHLET can fit most standard toilets.

What is the difference between Toto Drake and Drake 2?

The difference between Toto Drake and Drake 2 is that the Drake 2 has newer features like a more advanced bidet system, improved flushing, and updated controls compared to the original Drake.

Is the TOTO WASHLET worth it?

Yes, a TOTO Washlet is worth it because it adds comfort, hygiene, and convenience with features like heated seats, warm water cleansing, and self-cleaning functions.

Why is TOTO Drake so good?

TOTO Drake is good because it combines powerful flushing, easy-to-clean surfaces, and a reliable bidet system for a comfortable and hygienic experience.

Is the TOTO Drake loud?

No, the TOTO Drake is not loud. It is designed to flush efficiently while keeping noise to a minimum.

TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF

TORNADO FLUSH® at 1.28 GPF

TOTO builds this Drake on its TORNADO FLUSH system, which the sheet describes as high-efficiency at 1.28 GPF.

This is a single-flush toilet: one volume, 1.28 GPF (4.8 LPF), with no reduced-flush setting to choose between.

The flush is operated by a chrome plated trip lever on the side of the tank, and the trap measures 2-1/8" across.

  • High-efficiency TORNADO FLUSH system
  • Single 1.28 GPF (4.8 LPF) flush
  • Chrome plated trip lever flush control
TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF

CEFIONTECT® Glaze on a Two-Piece Drake

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

This is a two-piece toilet, so the tank and bowl are separate components: the C776CEGT40 elongated bowl with the ST776EA tank.

TOTO lists this model as a regular height toilet. The WASHLET+ supply connection is concealed for a seamless installation.

  • CEFIONTECT glazed elongated bowl
  • Two-piece tank and bowl construction
  • Concealed WASHLET+ supply connection
TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

The S7A fitted to this regular height Drake cleanses front and rear using gentle aerated warm water, with both oscillating and pulsating features.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 86ºF–104ºF.

An instantaneous water heater supplies continuous warm water, the seat is heated across 82ºF–97ºF, and the warm air dryer offers five variable settings.

  • Front and rear aerated warm water
  • Oscillating and pulsating spray modes
  • Five-setting warm air dryer
TOTO Drake Washlet+ S7A Two-Piece 1.28 GPF

EWATER+®, PREMIST® and the Touchless Auto Open/Close Lid

EWATER+ auto-cleans the wand and the bowl after every use, and PREMIST automatically mists the bowl before each one.

The wand also cleans itself inside and out before and after every use.

The S7A is the only tier with a touchless auto open/close lid, driven by a multifunction pearl white block-style remote control that stores each user's settings. CLEAN RESIN keeps the wand and seat easier to maintain, and a night light is fitted.

  • EWATER+ on the wand and bowl
  • PREMIST before every use
  • Touchless auto open/close lid

What do you get with the Drake WASHLET+ S7A?

This is combination MW7764736CEGA#01: the two-piece Drake with the C776CEGT40 elongated CEFIONTECT bowl, the ST776EA tank, and the SW4736AT40 WASHLET+ S7A, in Cotton.

TOTO lists it as a regular height toilet — not Universal Height — and it flushes once at 1.28 GPF (4.8 LPF).

The bowl sets on a 12" rough-in and the trap measures 2-1/8" across.

The auto-flush model adds TOTO's THU857 Auto Flush Kit; the standard model does not include it, and TOTO lists it as an available upgrade.


TOTO Drake WASHLET+ S7A Two-Piece Toilet Features

Feature Details
Drake Toilet Features
TORNADO FLUSH® High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF).
Water Use Single flush, 1.28 GPF (4.8 LPF).
CEFIONTECT® Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Trap Diameter 2-1/8".
WASHLET+ Concealed Connection Concealed supply connection for seamless installation.
Two-Piece Construction Elongated front bowl toilet and tank with WASHLET+ S7A set.
Height Regular Height Toilet.
Flush Control Chrome plated trip lever.
Auto Flush Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model.
WASHLET S7A Features
Front and Rear Cleansing Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing Adjustable spray position, water temperature, and water pressure.
Instantaneous Water Heating Instantaneous water heater for continuous warm water and energy savings.
Warm Air Dryer Five variable temperature settings, 95ºF–140ºF.
Heated Seat Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer Automatic air deodorizer.
EWATER+® Auto-cleans the wand and bowl after every use.
PREMIST® Automatically mists the bowl before each use.
Self-Cleaning Wand Cleans itself inside and out before and after every use.
CLEAN RESIN® Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat Seamless seat design eliminates the gap where dirt collects.
Night Light Night light.
Controls Multifunction pearl white block-style remote control.
User Memory Personalized memory settings for up to 4 users.
Touchless Auto Open/Close Lid Touchless auto open/close lid — S7A only.
Auto Energy Saver Adjusts the seat temperature when inactive.


TOTO Drake WASHLET+ S7A Two-Piece Toilet Specifications

Specification Details
Combination Model MW7764736CEGA#01
Series Drake
Toilet Construction Two-Piece
Bowl Model C776CEGT40
Tank Model ST776EA
WASHLET Model SW4736AT40 (WASHLET+ S7A)
Bowl Shape Elongated
Color #01 Cotton
Height Classification Regular Height Toilet
Seat Height Not stated on this sheet
Rough-In 12"
Trap Diameter 2-1/8"
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH®
Flush Control Chrome plated trip lever
Auto Flush Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model
Electrical Not stated on this sheet
ADA Compliance Not stated on this sheet
Warranty One Year Limited Warranty (combination)
