What Makes a TOTO One-Piece Toilet Different
A one-piece toilet fuses the tank and bowl into one ceramic unit, so there is no bolted seam between them and no gap to work a cloth around. Four things sit behind that shape on TOTO's lines, and every model page states them: the flush system, the glaze, the rough-in adapter, and whether the bowl takes a WASHLET+ seat.
Most current TOTO one-piece models use TORNADO FLUSH, which TOTO describes as “two powerful nozzles that create a centrifugal, cyclonic rinsing action which reduces waste buildup and keeps the bowl cleaner”, delivered through a hole-free rim. The Aquia IV one-piece uses the DYNAMAX TORNADO FLUSH version at 1.28 or 0.9 gallons; the older UltraMax uses G-Max at 1.6 gallons. Volume is a legal question as much as a preference — our 1.28 vs 1.6 GPF guide lists the states that no longer permit 1.6 on a new installation.
The glaze is the second. TOTO's CEFIONTECT finish is an “extraordinarily smooth” glaze that “prevents particulates from adhering to porous, ceramic surfaces”, and it is listed on the UltraMax II, Nexus, Aquia IV, Carlyle II and Redington 1G bowls. The UltraMax uses a computer-designed, fully glazed trapway instead.
Third is Unifit, TOTO's rough-in adapter, which “will replace the lower half of your new TOTO toilet's trapway and adapt to the existing rough-in distance” in 10, 12 and 14 inch lengths. Fourth is the WASHLET+ connection: certain bowls carry a concealed channel, so a matching bidet seat installs with no visible hose or cord. Those pairings are sold as WASHLET+ toilet sets, and the fully integrated version is the NEOREST range.
Are TOTO Toilets Worth the Money?
TOTO toilets are worth the money if you are buying for the flush, the glaze and the fit rather than the name, because those three are what the price buys. Flush engineering is shared across a series regardless of volume, so a 1.28 model is not a weakened 1.6 — performance varies between series, not between volumes inside one.
The fit argument is the one buyers underrate. Unifit keeps a 10 or 14 inch bathroom from being shut out of the skirted lines, and the WASHLET+ connection lets you buy the bowl now and add the seat later without a hose down the wall. Both are decided at the time of order. The argument weakens at the entry end: the bare UltraMax runs G-Max at 1.6 gallons with no CEFIONTECT and no WASHLET+ channel, so the cheapest model here is not a discounted version of the priciest. Several of the same series names also appear in TOTO's two-piece toilets.
Which TOTO One-Piece Toilet Is the Best?
There is no single best TOTO one-piece toilet — the best one is whichever matches your rough-in, your bowl shape, and how much of the bidet you want built in. Here is how the lines separate on TOTO's own specifications:
- UltraMax — 1.6 GPF, G-Max, 12-inch rough-in, fully glazed trapway, SoftClose seat included. Sold elongated (MS854114S) and round (MS853113S), and the only round one-piece here.
- UltraMax II — 1.28 GPF TORNADO FLUSH, elongated, Universal Height and ADA compliant, 12-inch rough-in, CEFIONTECT, concealed WASHLET+ connection, WaterSense and CALGreen.

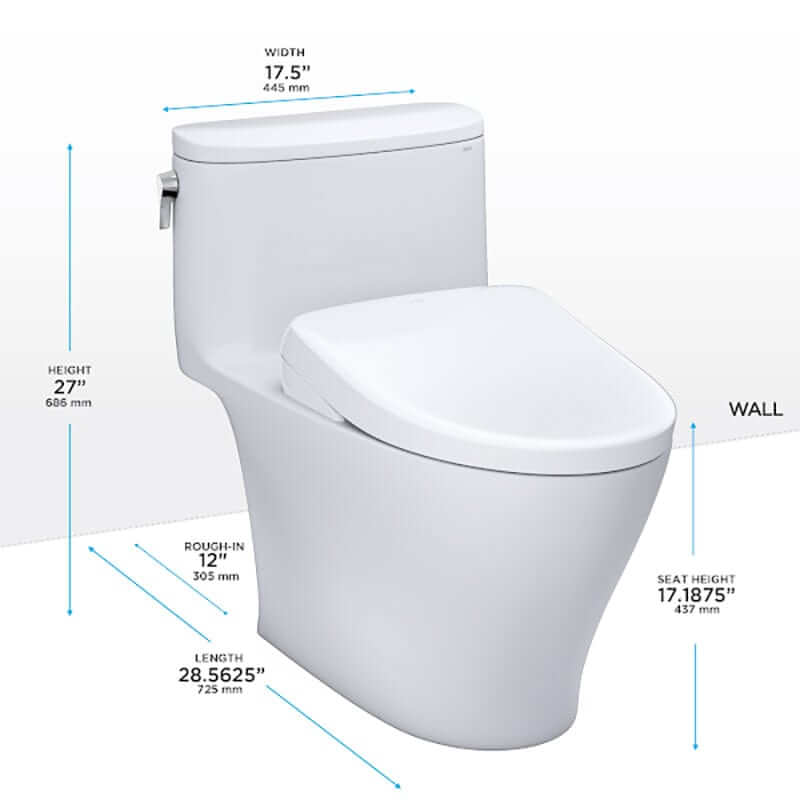

- Nexus — 1.28 GPF TORNADO FLUSH, elongated, Universal Height, CEFIONTECT, 14-inch rough-in optional. The Nexus 1G is the same body at 1.0 GPF.

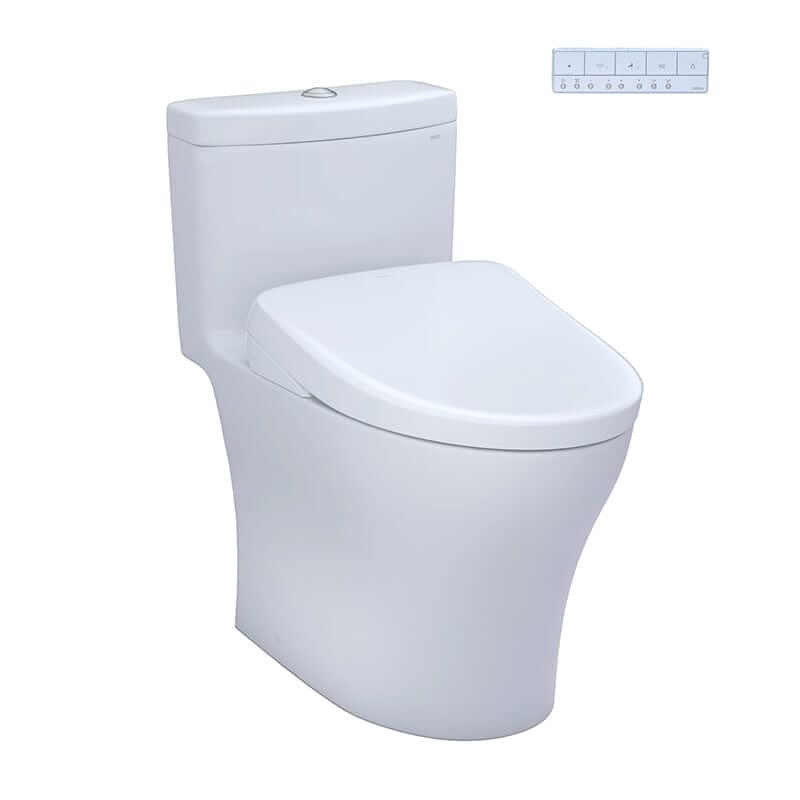

- Aquia IV one-piece — dual flush at 1.28 and 0.9 GPF, DYNAMAX TORNADO FLUSH, elongated, Universal Height, skirted, CEFIONTECT, WASHLET+ connection, 10-inch and 14-inch options.
- Carlyle II — 1.28 GPF TORNADO FLUSH, elongated, Universal Height and ADA compliant, skirted, CEFIONTECT, optional 10-inch and 14-inch configurations.
- Redington 1G — 1.0 GPF TORNADO FLUSH, elongated, Universal Height, completely skirted, CEFIONTECT, built to accommodate WASHLET+, 10-inch and 14-inch options.
- NEOREST — the integrated end. NX1, NX2, RS, AS and LS flush at 1.0 or 0.8 gallons with the bidet built into the fixture.
Check your rough-in before anything else
Rough-in is the distance from the finished wall to the center of the closet bolts, and it decides which of those lines can physically go in. Twelve inches is standard — our rough-in size guide puts it at around 90% of American bathrooms — but measure to the finished wall, not the baseboard. At 10 inches the list narrows to the Aquia IV, Carlyle II and Redington 1G: TOTO lists the UltraMax II at 12 inches with no adapter option, and the Nexus offers 14 but not 10. TOTO also warns that Unifit adapters “are not compatible with all TOTO toilet models”.
Then pick a height and a bowl shape
TOTO describes Universal Height as offering “toilets at a more manageable height”, and the UltraMax II, Nexus, Aquia IV, Carlyle II and Redington 1G are all built at it — compare the taller options in tall toilets. Bowl shape is a tape-measure job: from the seat bolts to the front rim, about 16.5 inches is round, about 18.5 inches elongated. Only the UltraMax is offered round.
Then decide how much bidet you want built in
A bare bowl ships with a SoftClose seat and nothing else. A WASHLET+ set pairs the bowl with a matched WASHLET — S2, S5, S7 or S7A — with the cord and supply hose concealed. A NEOREST builds the washing and drying into the fixture. Any electric option needs power: TOTO specifies “a standard residential electrical 120-volt outlet near the toilet”, recommends a GFCI outlet, and says it should be within three feet.
What Are the Disadvantages of TOTO Toilets?
The disadvantages of a TOTO one-piece toilet are practical rather than mechanical, and almost all are decisions made at the order stage. The fixture arrives fused, so setting it on the flange is a two-person lift. The Unifit adapter goes on during installation, so the rough-in length has to be ordered with the toilet and cannot be swapped later without pulling the fixture. And the technologies are spread unevenly — CEFIONTECT, TORNADO FLUSH and the WASHLET+ connection sit on the newer lines, not on the 1.6-gallon UltraMax. If your bathroom is a 10-inch rough-in, check that first; it rules out more models than any other measurement.
