TOTO Drake Washlet+ S7A Two-Piece - White toilet with a closed lid on a white background with control panel

TOTO Drake Washlet+ S7A Two-Piece

TOTO
SKU: MW7764736CSFGA#01

FREE Shipping + No Sales Tax

$2,704.00
$1,893.00
Style
Authorized TOTO National Dealer
Fast & Free Shipping On All Orders
Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.
Dedicated Customer Support Hundreds of 5-Star Reviews
Questions? Talk to a Real Person.
(877) 420-3443 Message Us

Buying more than one? Get volume pricing for contractors, builders and bulk orders.

TOTO Drake WASHLET+ S7A — MW7764736CSFGA#01

The TOTO Drake WASHLET+ S7A Two-Piece Toilet - 1.6 GPF puts TOTO's top-tier WASHLET+ S7A on a two-piece Drake body at Universal Height that flushes at 1.6 GPF, and it is the only seat in the range with a touchless lid.

Choose the auto-flush configuration and the toilet flushes itself while the lid opens and closes untouched, so an ordinary visit needs no contact with the fixture at all; the standard configuration keeps the same seat and adds the kit only if you want it later.

  • Toilet Type: Two-piece WASHLET+ toilet
  • Height: Universal Height — seat height 17-3/16" [437mm]
  • Bowl Shape: Elongated
  • Flush: TORNADO FLUSH® — single 1.6 GPF (6.0 LPF)
  • Rough-In: 12"
  • Included WASHLET: WASHLET+ S7A (SW4736AT40)
  • Controls: Multifunction pearl white block-style remote, memory for up to 4 users
  • Auto Flush: Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model

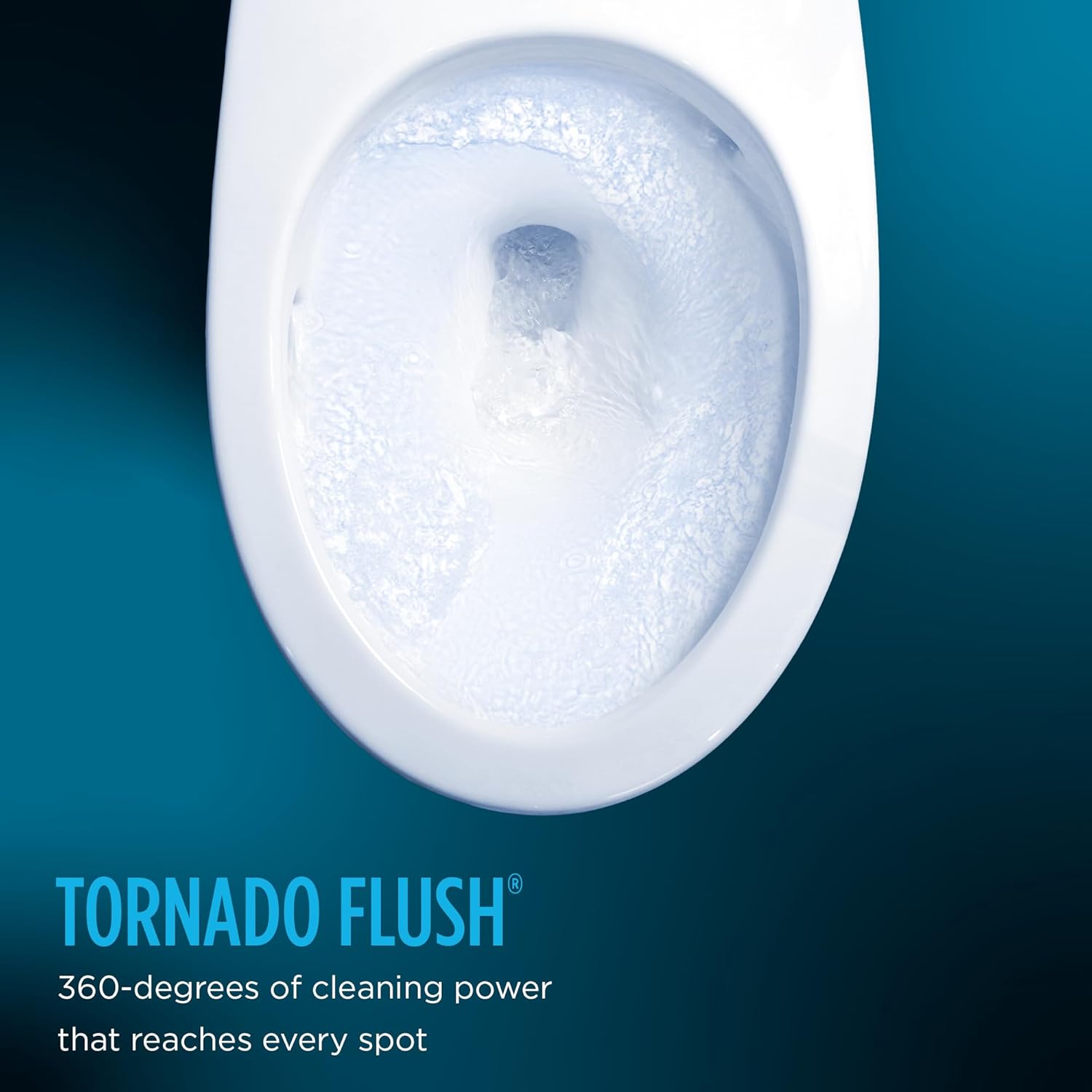

Single-Flush TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single flush of 1.6 GPF (6.0 LPF), the volume TOTO rates this model at.

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

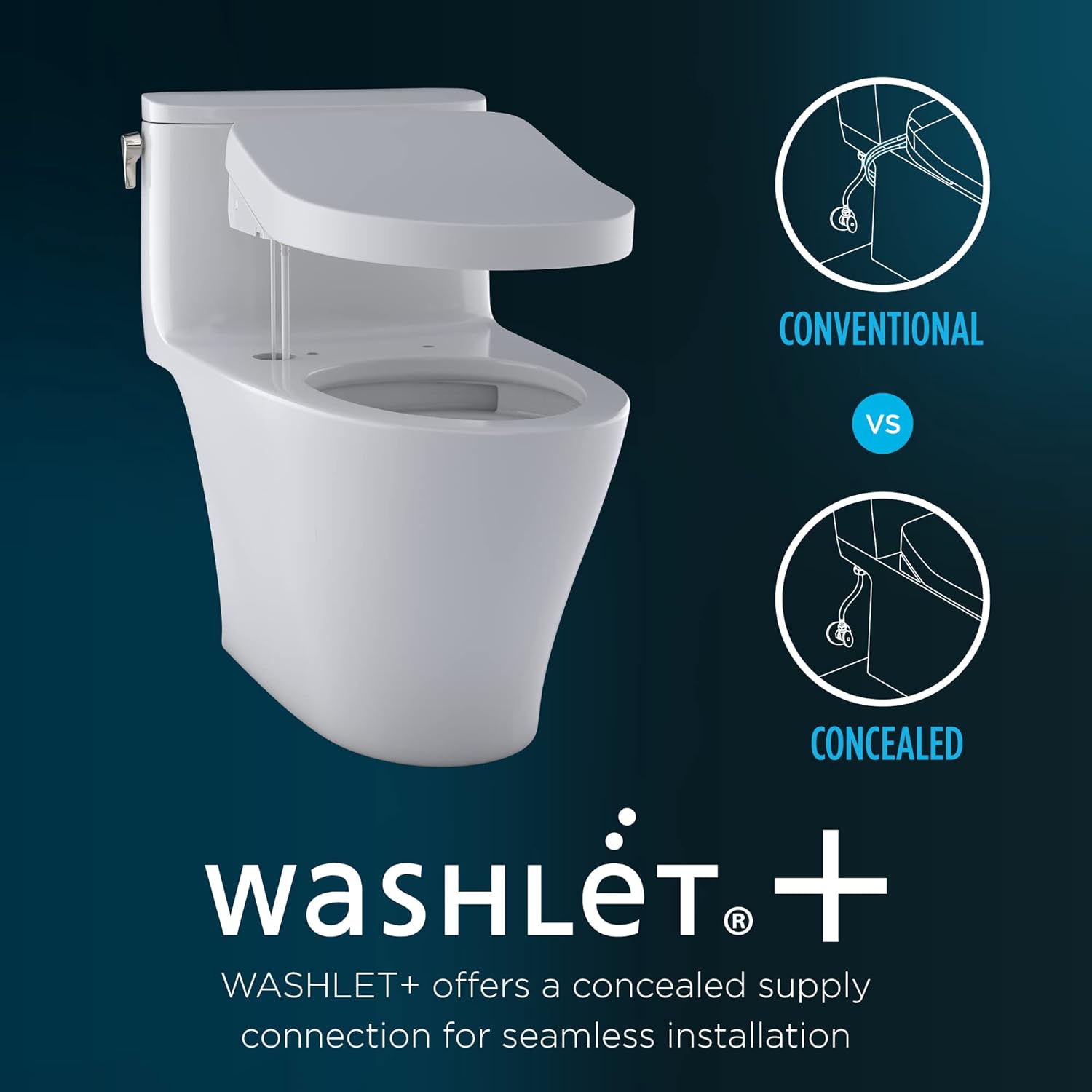

Universal Height with a Concealed Connection

TOTO lists this Drake at Universal Height, and the WASHLET+ connection conceals the seat's supply line at the back of the bowl.

Adjustable Warm-Water Cleansing

The S7A washes front and rear with aerated warm water, with oscillating and pulsating modes and independently adjustable position, temperature and pressure.

Heated Seat and Five-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers five variable temperature settings.

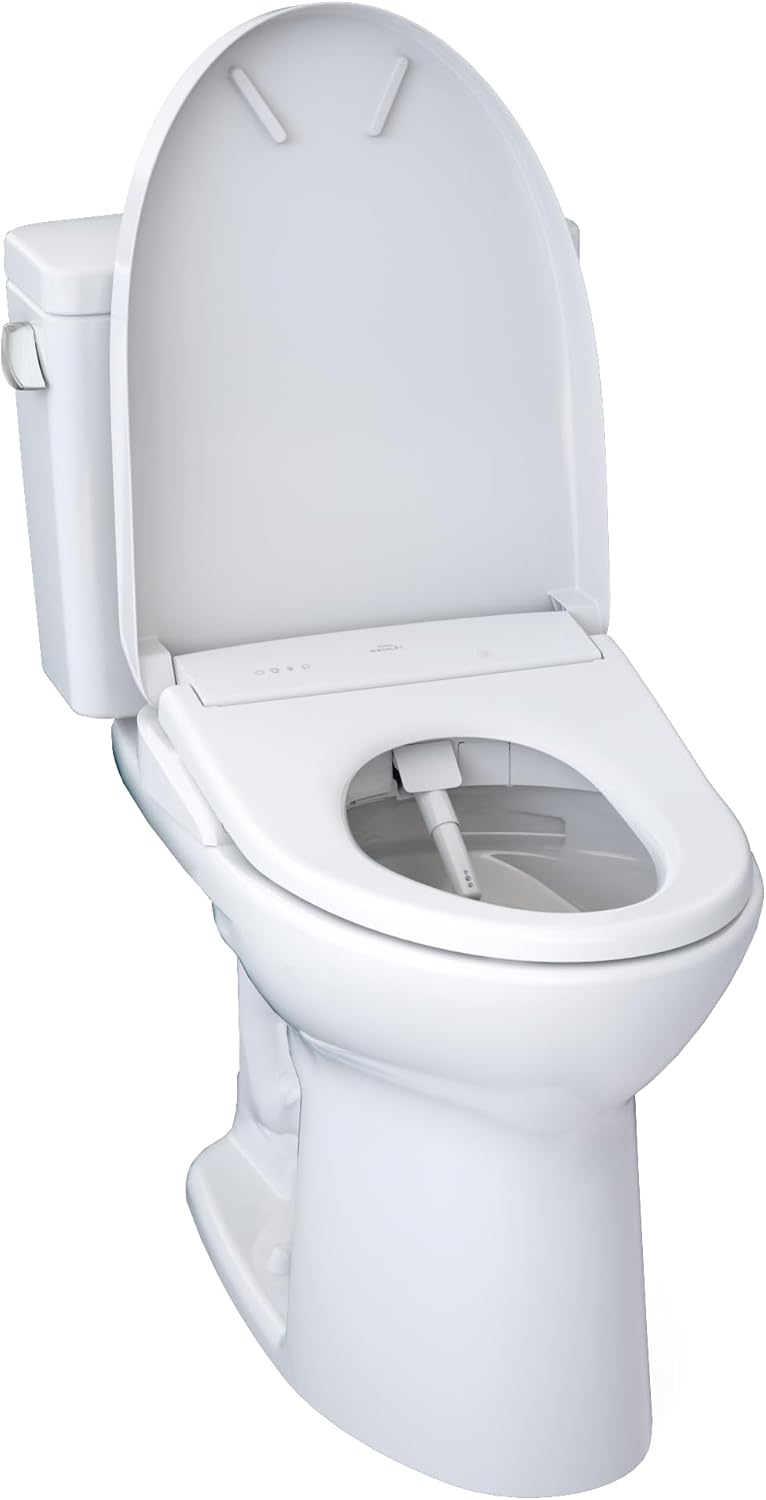

Touchless Auto Open/Close Lid

The S7A is the only WASHLET tier with a touchless auto open/close lid, which is what separates it from the otherwise closely matched S7.

TOTO Drake S7A MW7764736CSFGA Installation

TOTO Drake Washlet+ S7A Two-Piece dimensions

TOTO Drake Washlet+ S7A Two-Piece Compatibility

The TOTO Drake Washlet+ S7A is a two-piece elongated toilet with integrated S7A bidet seat. Confirm these four things before ordering:

  • Rough-in measurement: 12-inch standard installation.
  • Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
  • Water supply: Standard ½-inch connection at the base of the toilet.
  • Electrical outlet: GFCI 120V within 3 feet (powers integrated bidet seat, auto open/close lid, and remote control).

Installation steps

  1. Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
  2. Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
  3. Set the wax ring. Place a new wax ring on the flange, centered over the drain.
  4. Seat the bowl and bolt tank. Lower the bowl onto the flange, press down firmly, bolt to the floor, then attach the tank.
  5. Connect and test. Reconnect the supply line, restore water, and plug the bidet seat into the GFCI outlet.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO Drake Washlet+ S7A Two-Piece Downloads

TOTO Drake Washlet+ S7A Two-Piece Installation Manual

TOTO Drake Washlet+ S7A Two-Piece Spare Parts Manual

TOTO Drake Washlet+ S7A Two-Piece Spec Sheet

Frequently Asked Questions about TOTO Drake S7A MW7764736CSFGA

How is the TOTO S7A different from the regular S7?

The S7A is different from the S7 because it adds an automatic lid, night light, and extra convenience features while keeping the same cleaning power and comfort.

What makes a Washlet different from a Washlet+?

A Washlet+ is different from a regular Washlet because it comes paired with a compatible TOTO toilet, hiding cords and hoses for a clean, seamless look.

Does the S7A have auto flush?

The S7A does have auto flush as an optional feature, giving you hands-free flushing when you choose it.

Is TOTO S7A comfortable to use?

The S7A is comfortable to use thanks to its universal height, heated seat, and adjustable water temperature and pressure.

Does TOTO S7A have a night light?

The S7A does have a night light, providing a soft glow for easy use in dark bathrooms.

TOTO Drake Washlet+ S7A Two-Piece

TORNADO FLUSH® at 1.6 GPF

TOTO builds this Drake on its TORNADO FLUSH system and rates it on the sheet at 1.6 GPF (6.0 LPF).

This is a single-flush toilet: one volume, 1.6 GPF (6.0 LPF), with no reduced-flush setting to choose between.

The flush is operated by a chrome plated trip lever on the side of the tank, and the trap measures 2-1/8" across.

  • TORNADO FLUSH system at 1.6 GPF
  • Single 1.6 GPF (6.0 LPF) flush
  • Chrome plated trip lever flush control
TOTO Drake Washlet+ S7A Two-Piece

CEFIONTECT® Glaze on a Two-Piece Drake

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

This is a two-piece toilet, so the tank and bowl are separate components: the C776CEFGT40 elongated bowl with the ST776SA tank.

TOTO lists this model at Universal Height, with a seat height of 17-3/16" [437mm]. The WASHLET+ supply connection is concealed for a seamless installation.

  • CEFIONTECT glazed elongated bowl
  • Two-piece tank and bowl construction
  • Concealed WASHLET+ supply connection
TOTO Drake Washlet+ S7A Two-Piece

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

Paired with the 1.6 GPF Drake, the S7A provides front and rear cleansing in gentle aerated warm water, oscillating and pulsating.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 86ºF–104ºF.

An instantaneous water heater supplies continuous warm water, the seat is heated across 82ºF–97ºF, and the warm air dryer offers five variable settings.

  • Front and rear aerated warm water
  • Oscillating and pulsating spray modes
  • Five-setting warm air dryer
TOTO Drake Washlet+ S7A Two-Piece

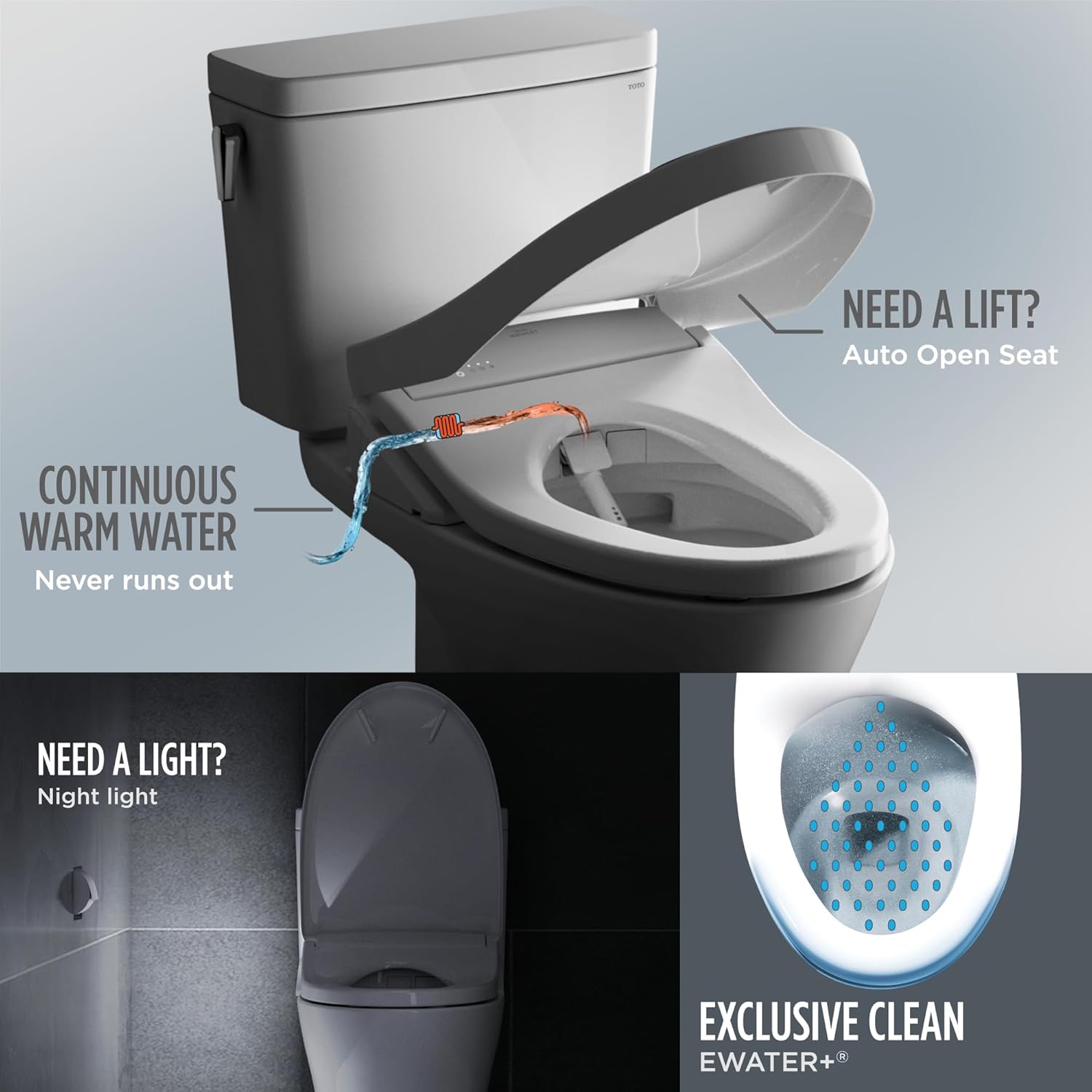

EWATER+®, PREMIST® and the Touchless Auto Open/Close Lid

EWATER+ auto-cleans the wand and the bowl after every use, with PREMIST wetting the bowl ahead of each use.

The wand also cleans itself inside and out before and after every use.

The S7A is the only tier with a touchless auto open/close lid, driven by a multifunction pearl white block-style remote control that stores each user's settings. CLEAN RESIN keeps the wand and seat easier to maintain, and a night light is fitted.

  • EWATER+ on the wand and bowl
  • PREMIST before every use
  • Touchless auto open/close lid

What do you get with the Drake WASHLET+ S7A?

This is combination MW7764736CSFGA#01: the two-piece Drake with the C776CEFGT40 elongated CEFIONTECT bowl, the ST776SA tank, and the SW4736AT40 WASHLET+ S7A, in Cotton.

It is listed at Universal Height and flushes once at 1.6 GPF (6.0 LPF), with a seat height of 17-3/16" [437mm].

The bowl sets on a 12" rough-in and the trap measures 2-1/8" across.

The auto-flush model adds TOTO's THU857 Auto Flush Kit; the standard model does not include it, and TOTO lists it as an available upgrade.


TOTO Drake WASHLET+ S7A Two-Piece Toilet - 1.6 GPF Features

Feature Details
Drake Toilet Features
TORNADO FLUSH® TORNADO FLUSH system - 1.6 GPF (6.0 LPF).
Water Use Single flush, 1.6 GPF (6.0 LPF).
CEFIONTECT® Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Trap Diameter 2-1/8".
WASHLET+ Concealed Connection Concealed supply connection for seamless installation.
Two-Piece Construction Elongated front bowl toilet and tank with WASHLET+ S7A set.
Height Universal Height — seat height 17-3/16" [437mm].
Flush Control Chrome plated trip lever.
Electrical GFCI outlet of 120V, 15A, located 12" from the floor.
Auto Flush Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model.
WASHLET S7A Features
Front and Rear Cleansing Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing Adjustable spray position, water temperature, and water pressure.
Instantaneous Water Heating Instantaneous water heater for continuous warm water and energy savings.
Warm Air Dryer Five variable temperature settings, 95ºF–140ºF.
Heated Seat Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer Automatic air deodorizer.
EWATER+® Auto-cleans the wand and bowl after every use.
PREMIST® Automatically mists the bowl before each use.
Self-Cleaning Wand Cleans itself inside and out before and after every use.
CLEAN RESIN® Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat Seamless seat design eliminates the gap where dirt collects.
Night Light Night light.
Controls Multifunction pearl white block-style remote control.
User Memory Personalized memory settings for up to 4 users.
Touchless Auto Open/Close Lid Touchless auto open/close lid — S7A only.
Auto Energy Saver Adjusts the seat temperature when inactive.


TOTO Drake WASHLET+ S7A Two-Piece Toilet - 1.6 GPF Specifications

Specification Details
Combination Model MW7764736CSFGA#01
Series Drake
Toilet Construction Two-Piece
Bowl Model C776CEFGT40
Tank Model ST776SA
WASHLET Model SW4736AT40 (WASHLET+ S7A)
Bowl Shape Elongated
Color #01 Cotton
Height Classification Universal Height
Seat Height 17-3/16" [437mm]
Rough-In 12"
Trap Diameter 2-1/8"
Water Use 1.6 GPF (6.0 LPF)
Flush System TORNADO FLUSH®
Flush Control Chrome plated trip lever
Auto Flush Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model
Electrical GFCI outlet of 120V, 15A, located 12" from the floor
ADA Compliance ADA compliant for residential use with autoflush feature model, or with trip lever located on the approach side
Warranty One Year Limited Warranty (combination)
