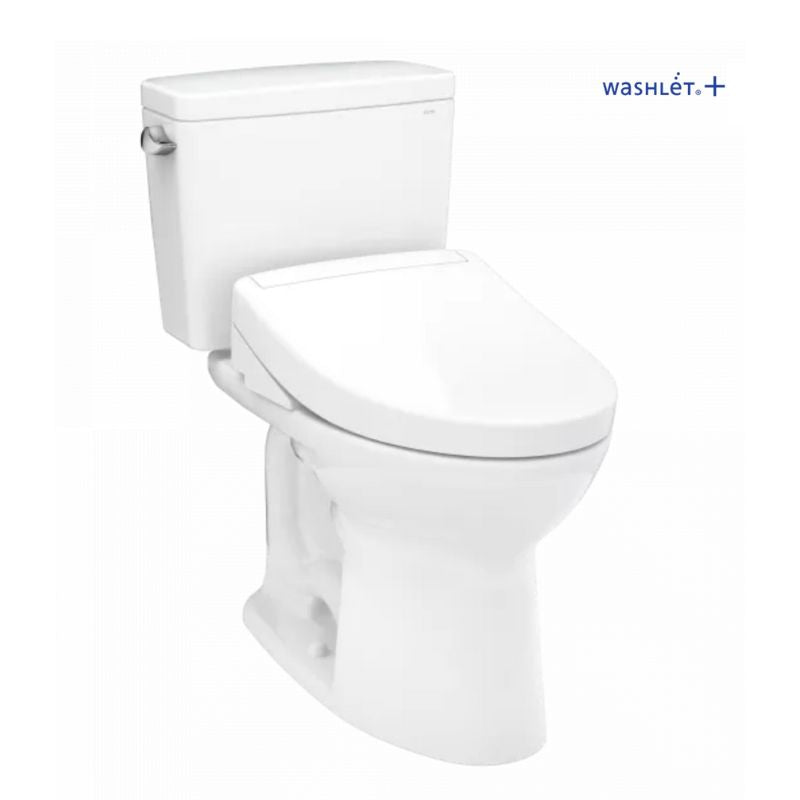

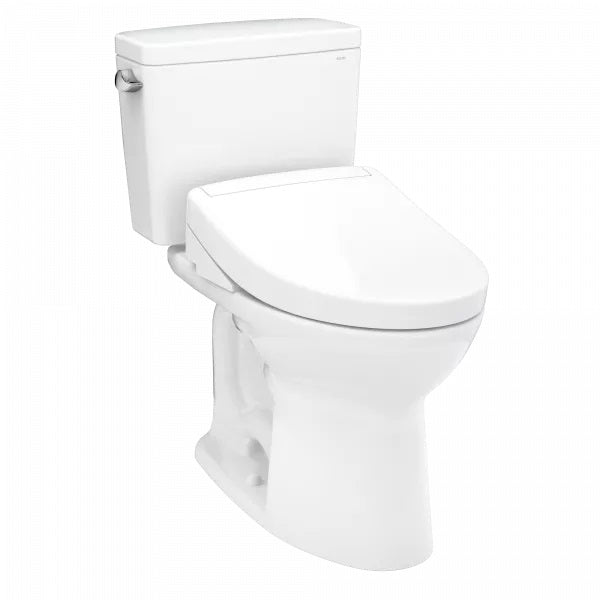

TOTO Drake WASHLET+ S5 — MW7763446CEG#01

The TOTO Drake WASHLET+ S5 Two-Piece Toilet pairs the two-piece Drake body at TOTO's regular height and a 1.28 GPF TORNADO FLUSH® with the WASHLET+ S5 and the wireless remote that stores each user's settings.

The remote stores its own settings for up to four people, so a shared bathroom stops being a negotiation over water temperature and pressure, and nobody has to reset the seat after somebody else has used it.

Toilet Type: Two-piece WASHLET+ toilet
Height: Regular Height Toilet
Bowl Shape: Elongated
Flush: High-efficiency TORNADO FLUSH® — single 1.28 GPF (4.8 LPF)
Rough-In: 12"
Included WASHLET: WASHLET+ S5 (SW3446)
Controls: Multifunction remote, memory for up to 4 users
Auto Flush: Not included — TOTO lists no auto-flush kit for this combination

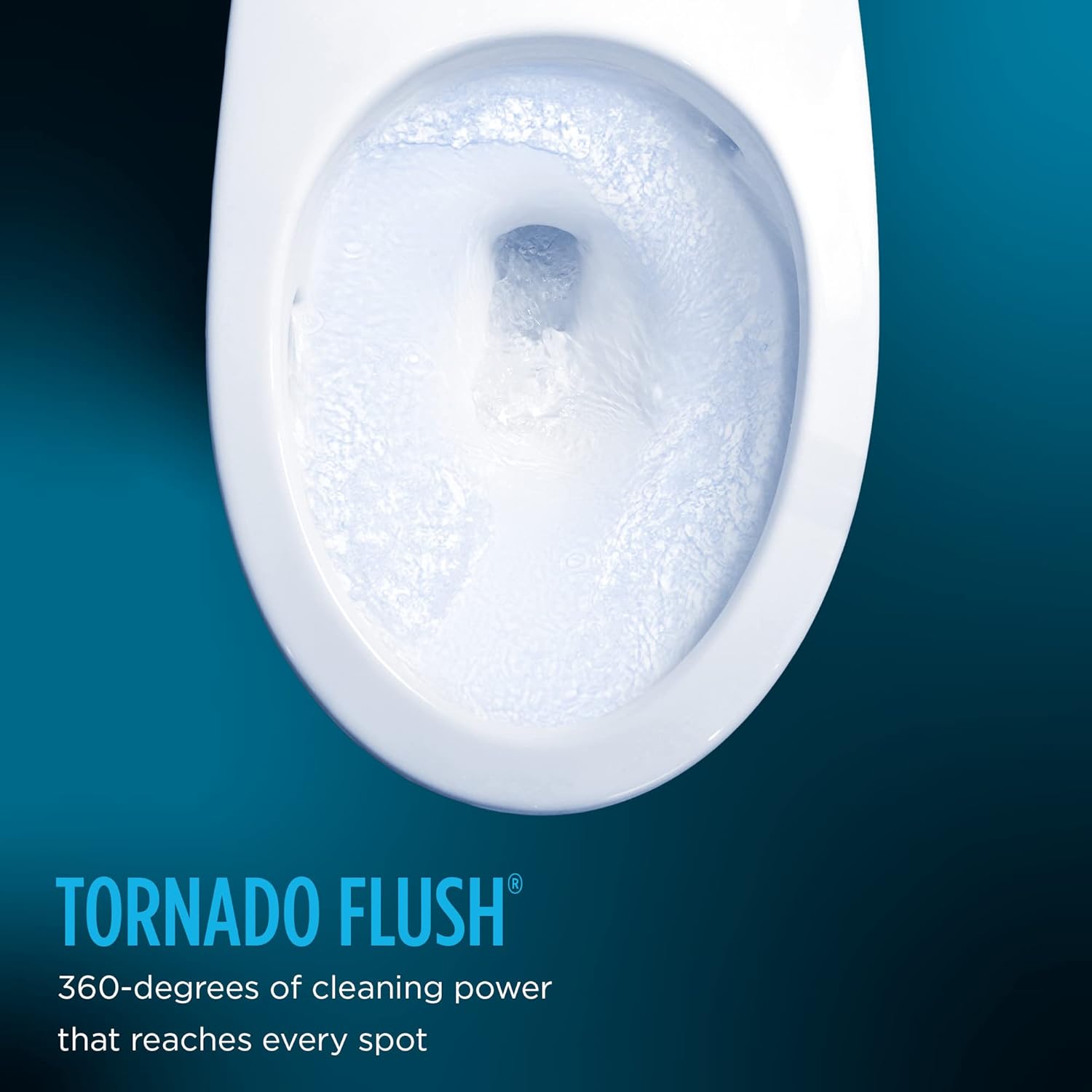

High-efficiency TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single 1.28 GPF flush, which TOTO classes as high-efficiency.

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

Regular Height with a Concealed Connection

TOTO lists this Drake as a regular height toilet, and the WASHLET+ connection conceals the seat's supply line at the back of the bowl.

Adjustable Warm-Water Cleansing

Front and rear washing uses aerated warm water, oscillating and pulsating, with spray position, temperature and pressure all adjusting independently.

Heated Seat and Three-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers three variable temperature settings.

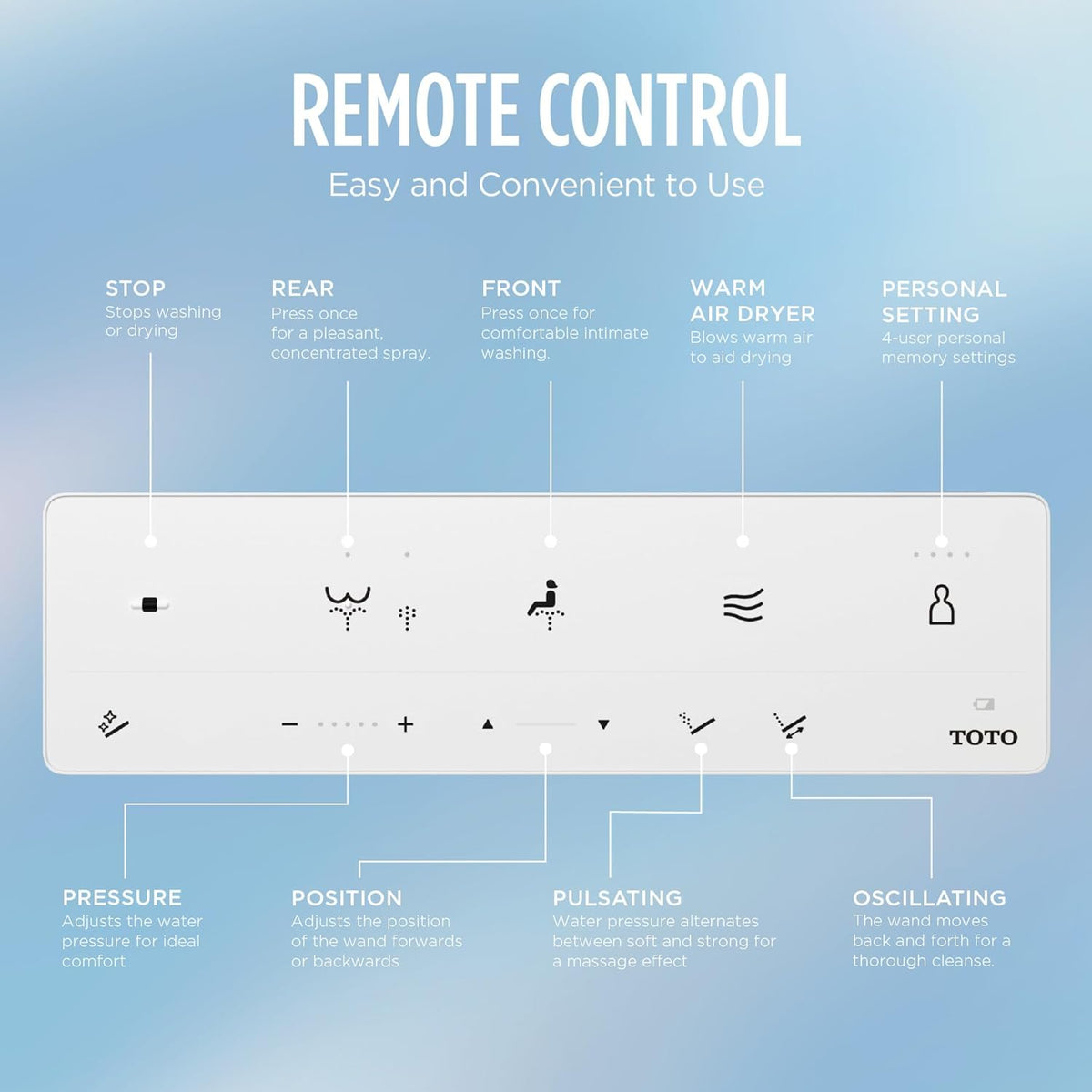

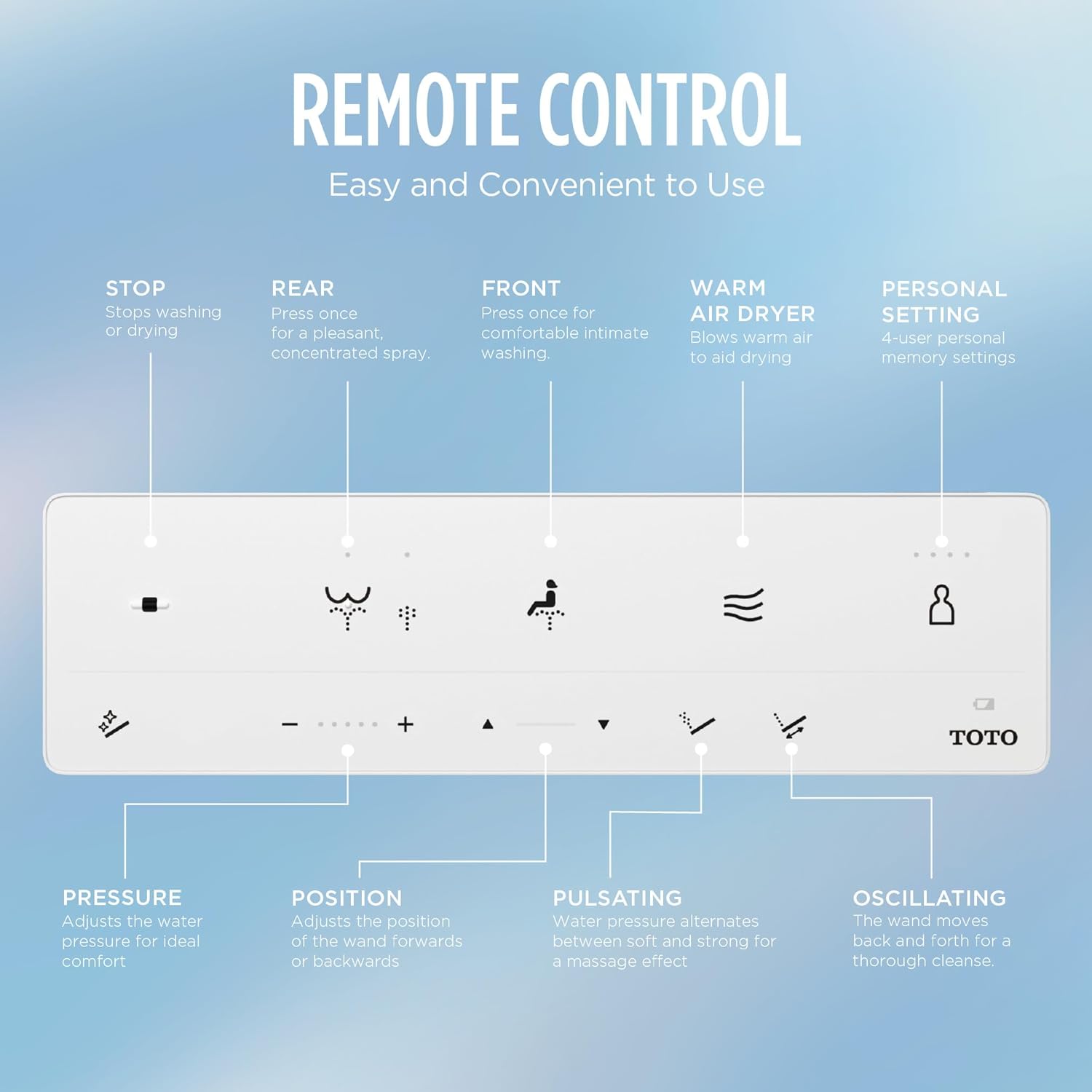

Wireless Remote with Four-User Memory

The wireless remote stores personalized settings for up to four users, so each person gets their own temperature and pressure without resetting anything.

TOTO Drake S5 MW7763446CEG#01 Installation

TOTO Drake WASHLET+ S5 Two-Piece Toilet - 1.28 GPF dimensions

TOTO Drake WASHLET+ S5 Two-Piece Toilet - 1.28 GPF Compatibility

The TOTO Drake WASHLET+ S5 is a two-piece elongated toilet with integrated smart bidet seat. Confirm these four things before ordering:

Rough-in measurement: 12-inch standard (no 10-inch or 14-inch adapter available for this model).
Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
Water supply: Standard ½-inch connection at the base of the toilet.
Electrical outlet: GFCI 120V required within 3 feet to power the integrated WASHLET+ S5 bidet seat.

Installation steps

Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
Set the wax ring. Place a new wax ring on the flange, centered over the drain.
Seat the bowl and attach tank. Lower the bowl onto the flange, press down firmly, bolt the tank to the bowl, and hand-tighten floor bolts evenly.
Connect and test. Reconnect the supply line, restore water, and plug the WASHLET+ S5 into the GFCI outlet.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO Drake WASHLET+ S5 - 1.28 GPF Downloads

TOTO Drake WASHLET+ S5 - 1.28 GPF Installation Manual

TOTO Drake WASHLET+ S5 - 1.28 GPF Spare Parts Manual

TOTO Drake WASHLET+ S5 - 1.28 GPF Spec Sheet

Frequently Asked Questions about TOTO Drake S5 MW7763446CEG#01

Is Toto Drake compatible with TOTO Washlet?

Yes, Toto Drake is compatible with TOTO Washlet seats, so you can pair it with most modern Washlet models for a seamless bidet experience.

How heavy is a Toto Drake toilet?

The Toto Drake toilet weighs around 95–100 lbs, depending on the model and included Washlet seat.

How to clean a Toto Drake toilet?

To clean a Toto Drake, use a soft cloth and mild cleaner on the bowl and seat. The EWATER+ wand and PREMIST feature help keep the toilet hygienic between cleanings.

Does Toto Drake have dual flush?

Yes, the Toto Drake uses the TORNADO FLUSH system with a 1.28 GPF water-saving flush, which efficiently cleans the bowl while using less water.

TOTO Drake WASHLET+ S5 Two-Piece Toilet - 1.28 GPF

TORNADO FLUSH® at 1.28 GPF

TOTO builds this Drake on its TORNADO FLUSH system, which the sheet describes as high-efficiency at 1.28 GPF.

This is a single-flush toilet: one volume, 1.28 GPF (4.8 LPF), with no reduced-flush setting to choose between.

The flush is operated by a chrome plated trip lever on the side of the tank, and the trap measures 2-1/8" across.

High-efficiency TORNADO FLUSH system
Single 1.28 GPF (4.8 LPF) flush
Chrome plated trip lever flush control

CEFIONTECT® Glaze on a Two-Piece Drake

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

This is a two-piece toilet, so the tank and bowl are separate components: the C776CEGT40 elongated bowl with the ST776EA tank.

TOTO lists this model as a regular height toilet. The WASHLET+ supply connection is concealed for a seamless installation.

CEFIONTECT glazed elongated bowl
Two-piece tank and bowl construction
Concealed WASHLET+ supply connection

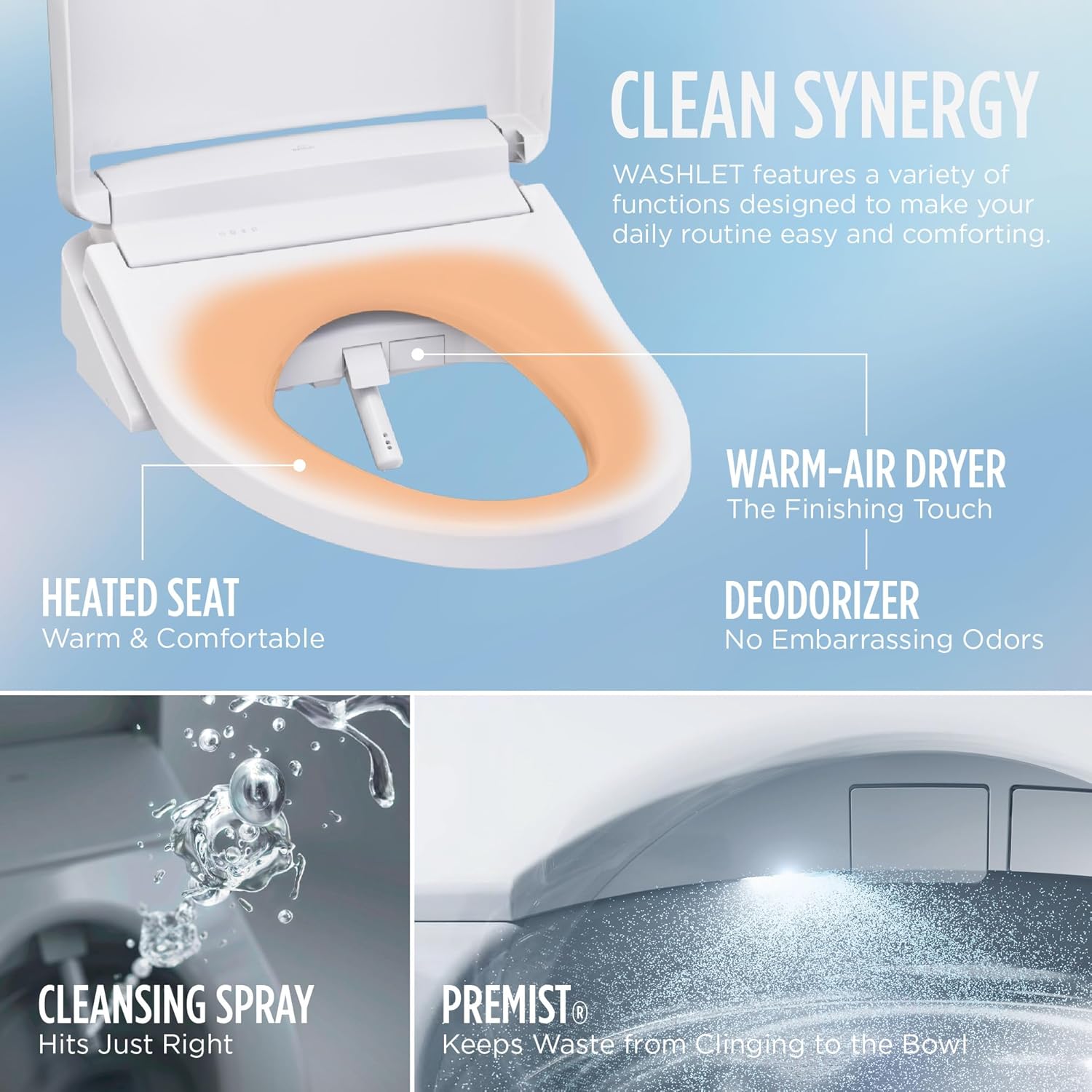

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

The S5 fitted to this regular height Drake cleanses front and rear using gentle aerated warm water, with both oscillating and pulsating features.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 95ºF–104ºF.

An instantaneous water heater supplies continuous warm water, the seat is heated across 82ºF–97ºF, and the warm air dryer offers three variable settings.

Front and rear aerated warm water
Oscillating and pulsating spray modes
Three-setting warm air dryer

EWATER+®, PREMIST® and a Wireless Remote with User Memory

EWATER+ auto-cleans the wand after every use, and PREMIST automatically mists the bowl before each one.

The wand also cleans itself inside and out before and after every use.

Controls are handled by a multifunction remote control with personalized memory settings for up to 4 users, and CLEAN RESIN keeps the wand and seat easier to maintain. Night light illuminates the inside of the bowl.

EWATER+ on the wand
PREMIST before every use
Memory settings for up to four users

What do you get with the Drake WASHLET+ S5?

This is combination MW7763446CEG#01: the two-piece Drake with the C776CEGT40 elongated CEFIONTECT bowl, the ST776EA tank, and the SW3446 WASHLET+ S5, in Cotton.

TOTO lists it as a regular height toilet — not Universal Height — and it flushes once at 1.28 GPF (4.8 LPF).

The bowl sets on a 12" rough-in and the trap measures 2-1/8" across.

TOTO lists no auto-flush kit for this combination.

TOTO Drake WASHLET+ S5 Two-Piece Toilet Features

Feature	Details
Drake Toilet Features
TORNADO FLUSH®	High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF).
Water Use	Single flush, 1.28 GPF (4.8 LPF).
CEFIONTECT®	Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Trap Diameter	2-1/8".
WASHLET+ Concealed Connection	Concealed supply connection for seamless installation.
Two-Piece Construction	Elongated front bowl toilet and tank with WASHLET+ S5 set.
Height	Regular Height Toilet.
Flush Control	Chrome plated trip lever.
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination.
WASHLET S5 Features
Front and Rear Cleansing	Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing	Adjustable spray position, water temperature, and water pressure.
Instantaneous Water Heating	Instantaneous water heater for continuous warm water and energy savings.
Warm Air Dryer	Three variable temperature settings, 95ºF–140ºF.
Heated Seat	Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer	Automatic air deodorizer.
EWATER+®	Auto-cleans the wand after every use.
PREMIST®	Automatically mists the bowl before each use.
Self-Cleaning Wand	Cleans itself inside and out before and after every use.
CLEAN RESIN®	Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat	Seamless seat design eliminates the gap where dirt collects.
Night Light	Illuminates the inside of the bowl.
Controls	Multifunction remote control with personalized memory settings for up to 4 users.
User Memory	Personalized memory settings for up to 4 users.
Auto Energy Saver	Adjusts the seat temperature when inactive.

TOTO Drake WASHLET+ S5 Two-Piece Toilet Specifications

Specification	Details
Combination Model	MW7763446CEG#01
Series	Drake
Toilet Construction	Two-Piece
Bowl Model	C776CEGT40
Tank Model	ST776EA
WASHLET Model	SW3446 (WASHLET+ S5)
Bowl Shape	Elongated
Color	#01 Cotton
Height Classification	Regular Height Toilet
Seat Height	Not stated on this sheet
Rough-In	12"
Trap Diameter	2-1/8"
Water Use	1.28 GPF (4.8 LPF)
Flush System	TORNADO FLUSH®
Flush Control	Chrome plated trip lever
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination
Electrical	Not stated on this sheet
ADA Compliance	Not stated on this sheet
Warranty	One Year Limited Warranty (combination)
