Toto Nexus 1G WASHLET+ S2 Two-Piece Toilet - 1.0 GPF

TOTO

SKU: MW4423346CUFG#01

$1,992.00

$1,273.00

FREE Shipping + No Sales Tax

Extra 10% OFF Use FALL26 at checkout

Authorized TOTO National Dealer

Fast & Free Shipping On All Orders

Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.

Dedicated Customer Support Hundreds of 5-Star Reviews

Questions? Talk to a Real Person.

(877) 420-3443 Message Us

TOTO Nexus 1G WASHLET+ S2 — MW4423346CUFG#01

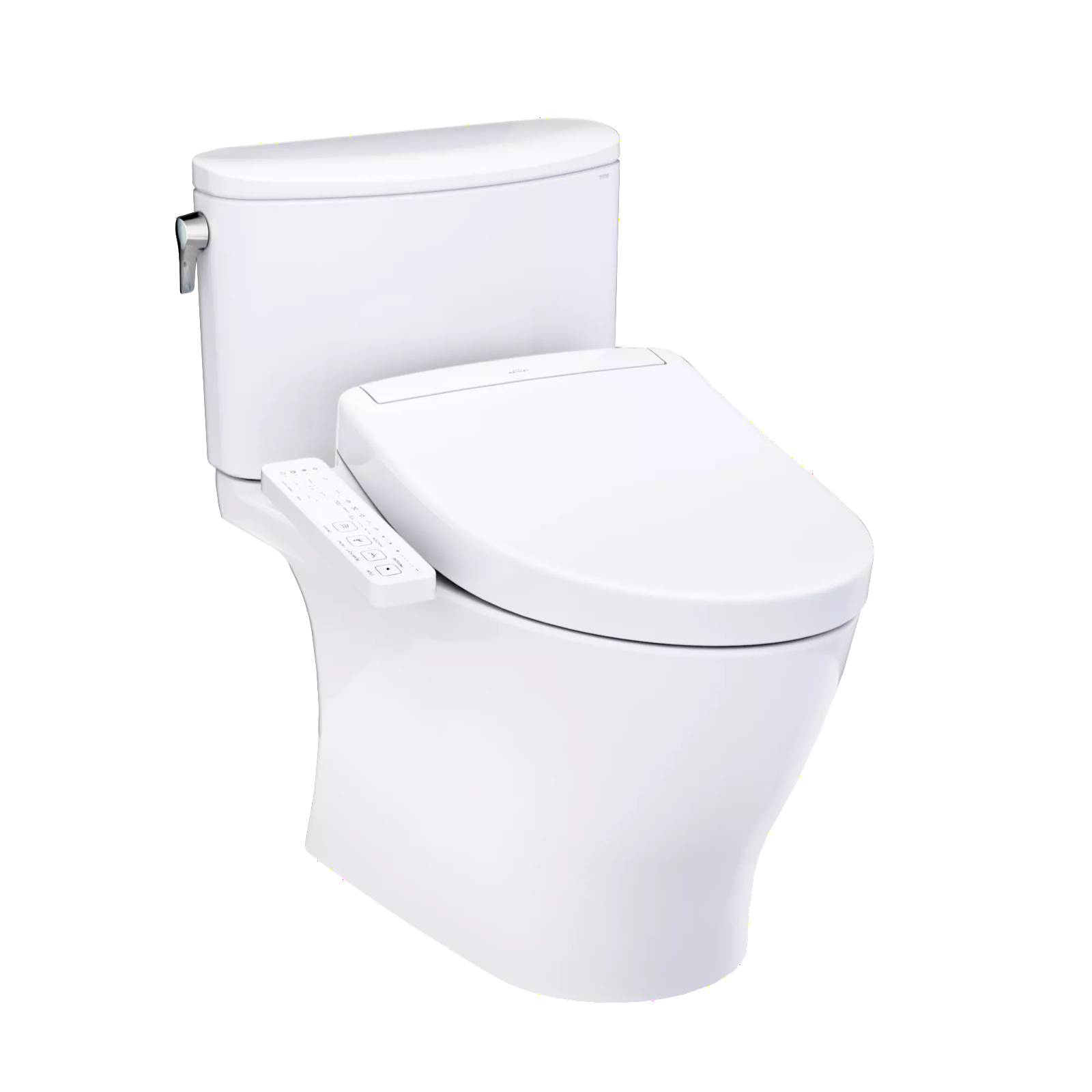

The TOTO Nexus 1G WASHLET+ S2 Two-Piece Toilet is a completely skirted two-piece toilet flushing once at 1.0 GPF on TOTO's TORNADO FLUSH® system, with the WASHLET+ S2 and its arm control panel already fitted.

Controls sit on an arm panel beside the seat rather than on a remote, which keeps the installation simple and leaves nothing to misplace, mount or fit batteries to. Everything the seat does is reached from where you are sitting.

Toilet Type: Two-piece WASHLET+ toilet
Height: Universal Height
Bowl Shape: Elongated, completely skirted
Flush: TORNADO FLUSH® — single 1.0 GPF (3.8 LPF)
Rough-In: 12" standard; 14" option available
Included WASHLET: WASHLET+ S2 (SW3346)
Controls: Arm control panel
Auto Flush: Not included — TOTO lists no auto-flush kit for this combination

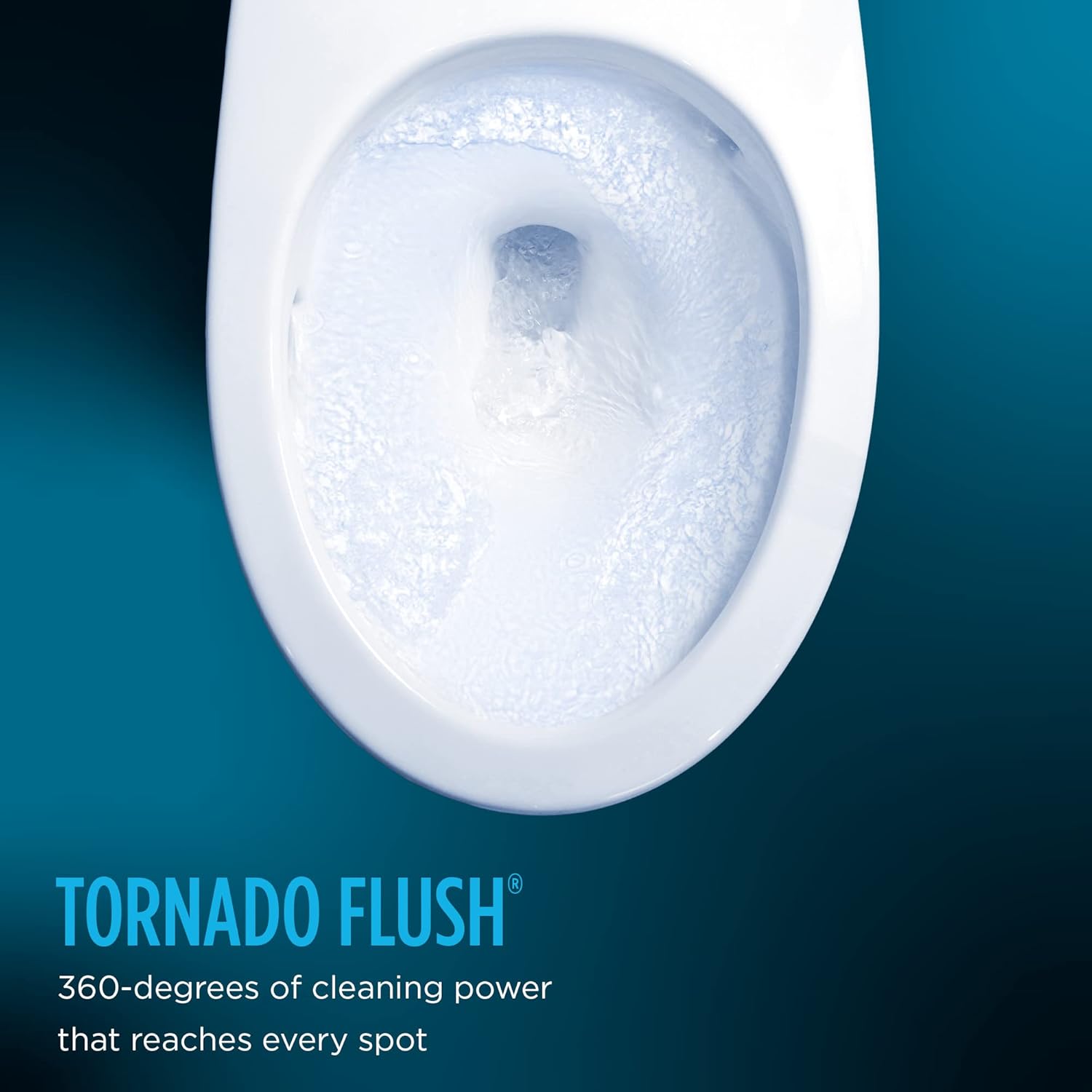

Single-Flush TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single flush of 1.0 GPF (3.8 LPF), the volume TOTO rates this model at.

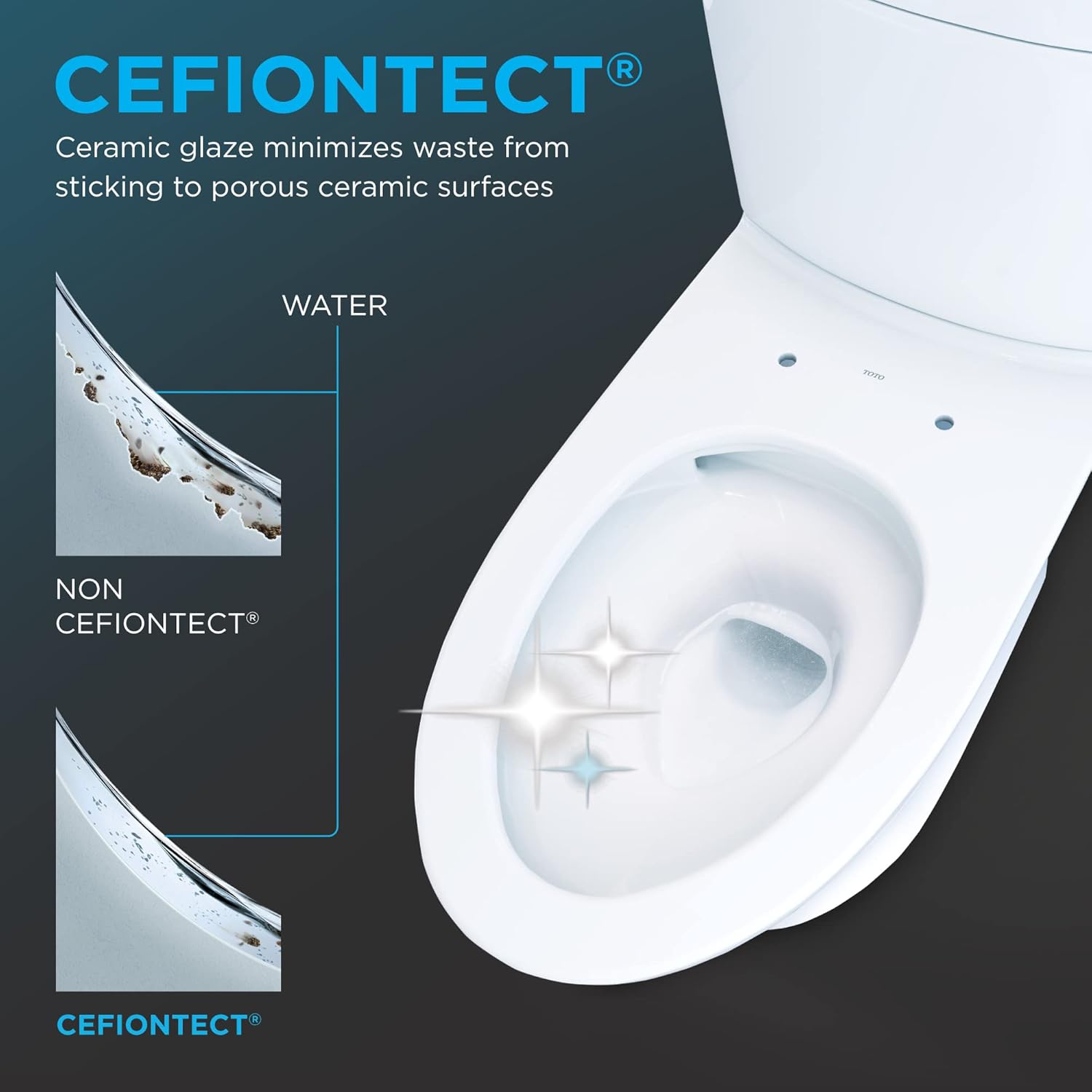

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

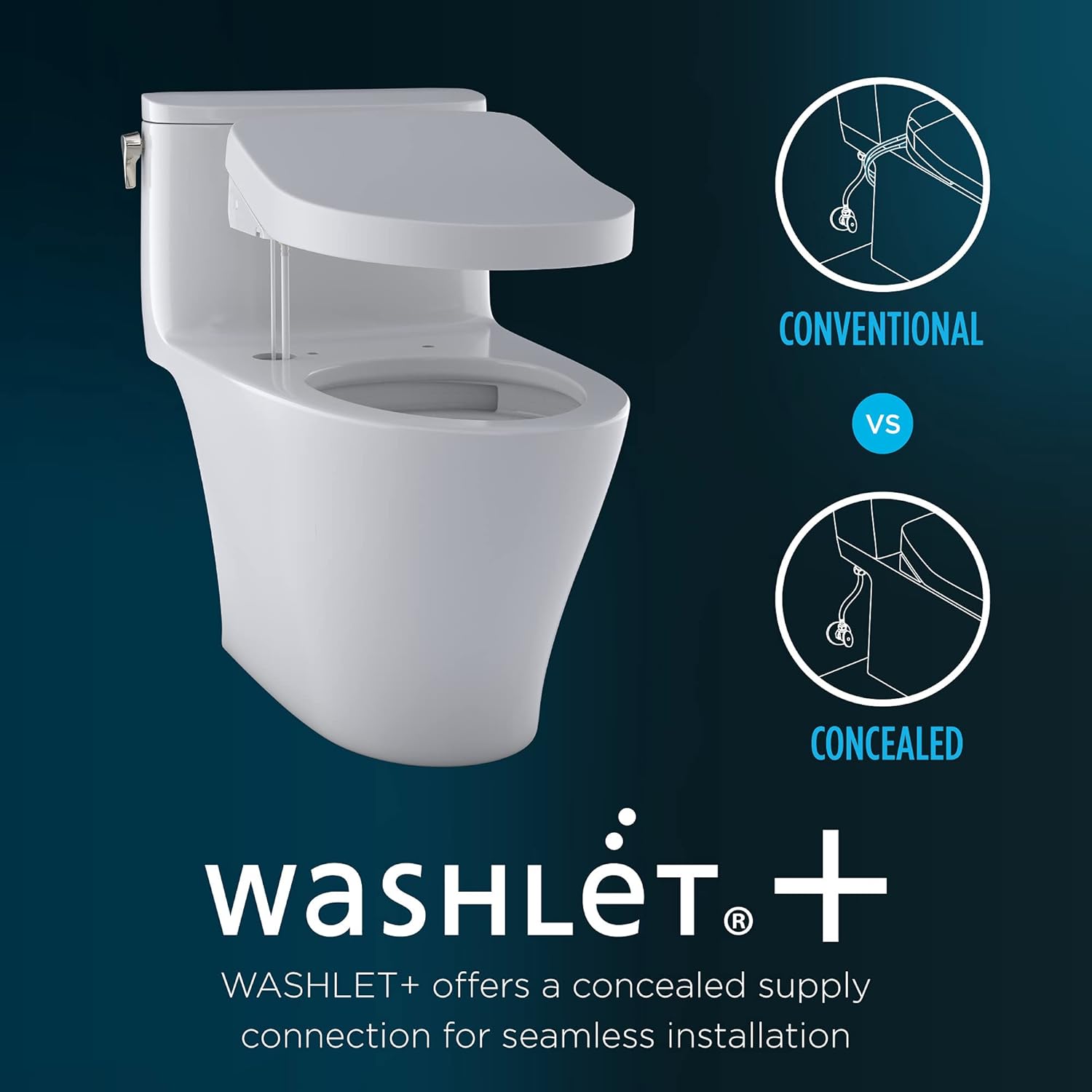

Completely Skirted WASHLET+ Design

The skirted exterior gives you a flat surface to wipe rather than a contoured trapway, and the WASHLET+ connection conceals the seat's supply line.

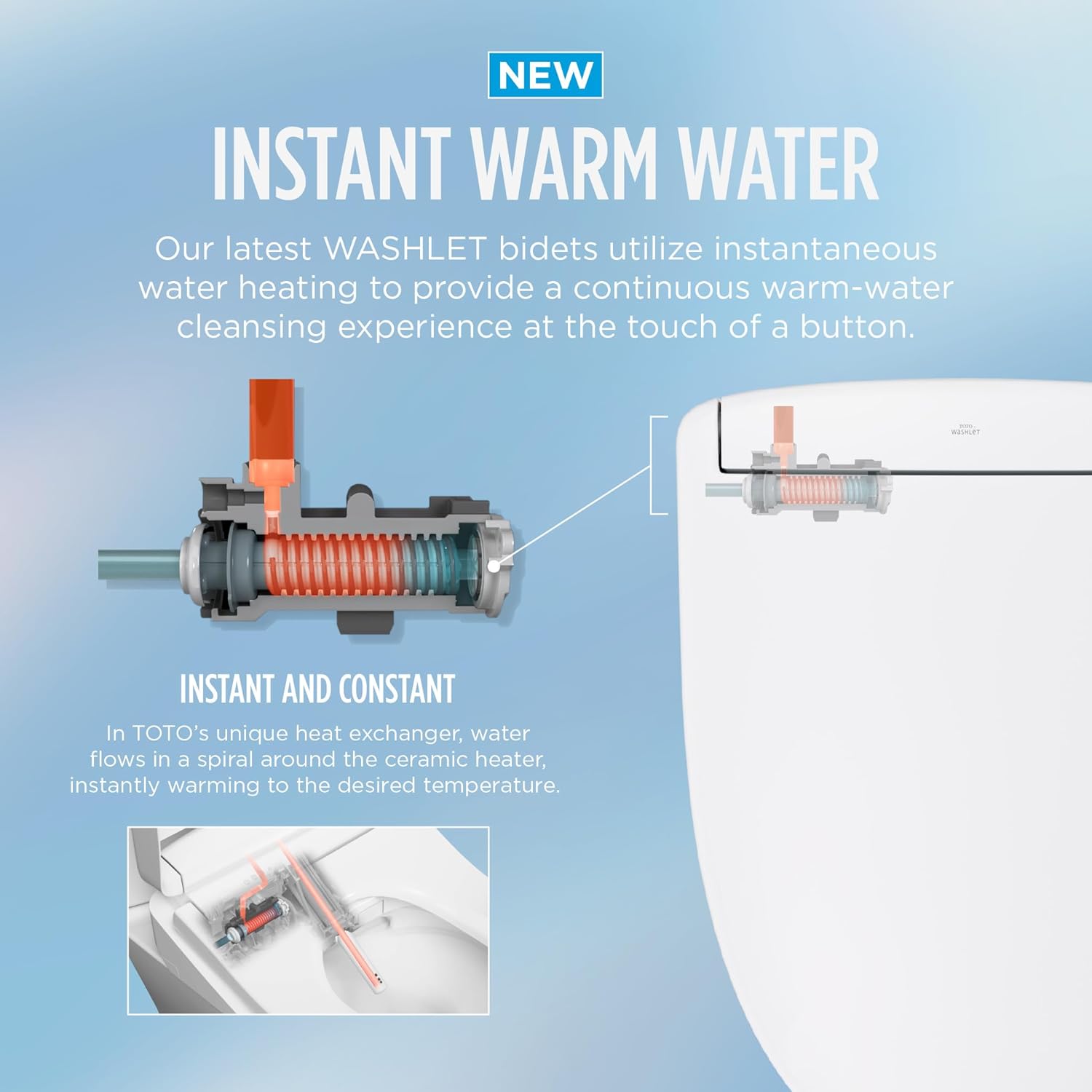

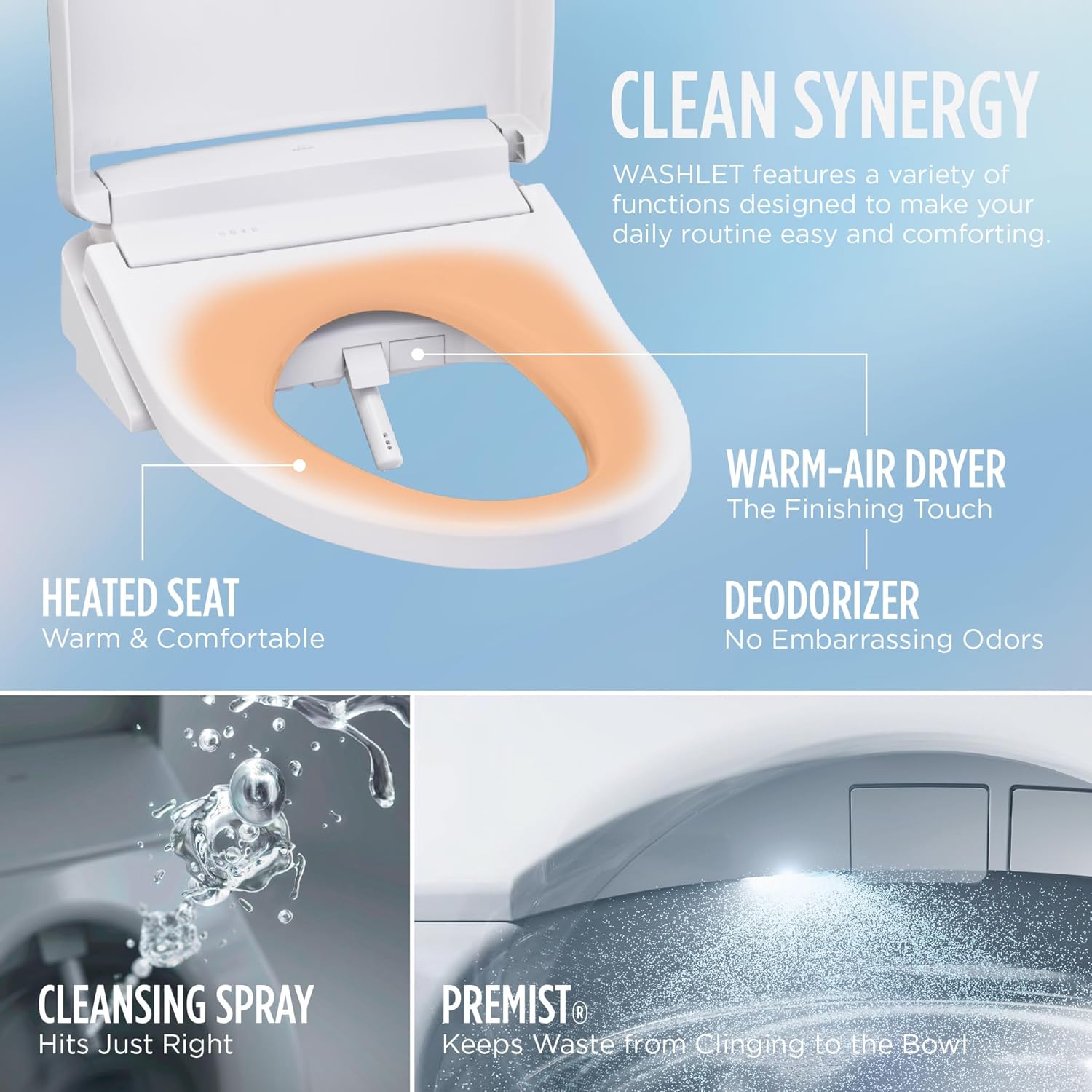

Adjustable Warm-Water Cleansing

Front and rear washing uses aerated warm water with oscillating and pulsating modes, and spray position, temperature and pressure each adjust separately.

Heated Seat and Three-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers three variable temperature settings.

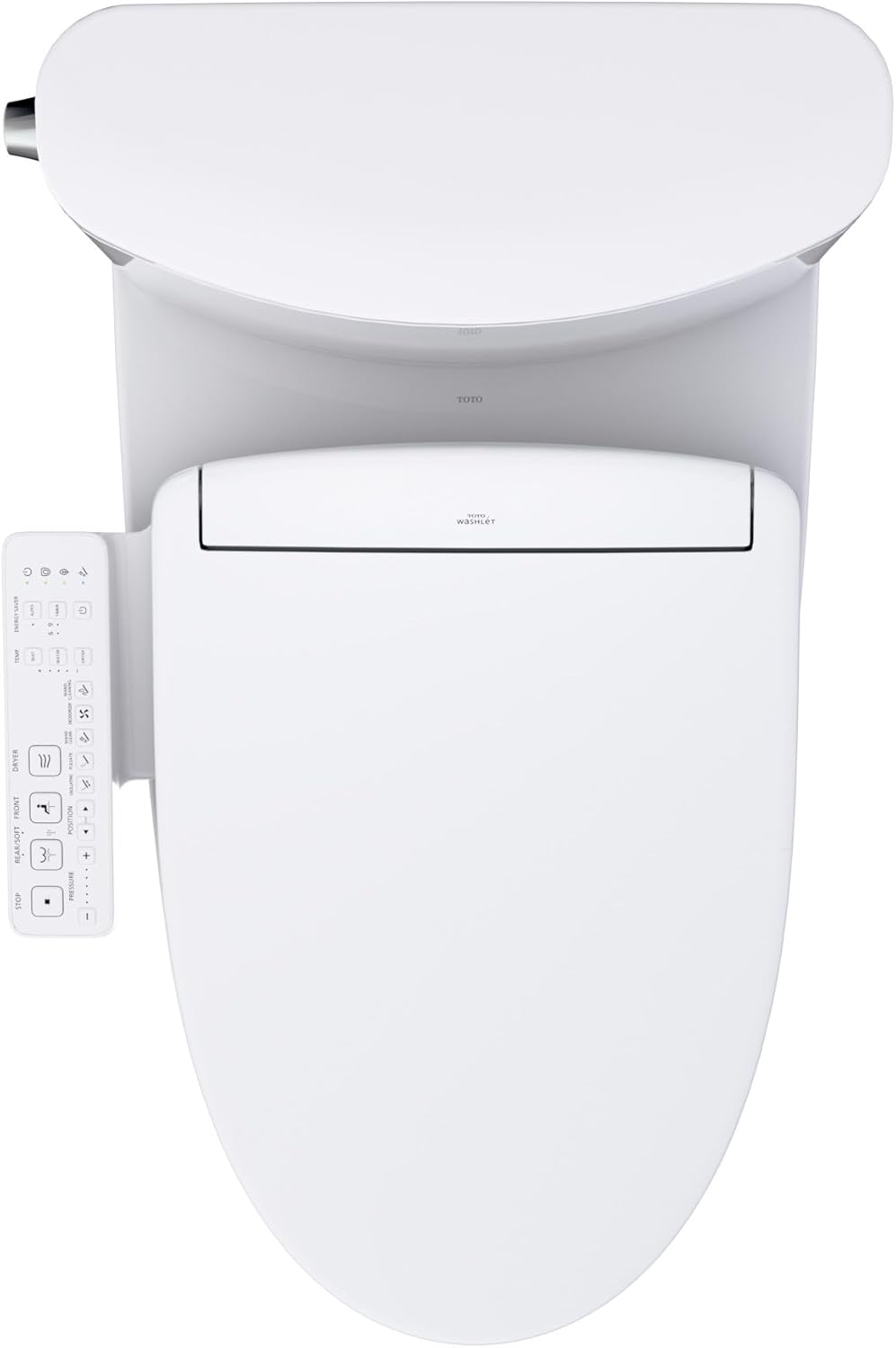

Arm Control Panel

Everything the seat does is reached from an arm panel beside you, so there is no remote to mount, misplace or fit batteries to.

TOTO Nexus 1G S2 MW4423346CUFG#01 Installation

Toto Nexus 1G WASHLET+ S2 Two-Piece Toilet - 1.0 GPF Compatibility

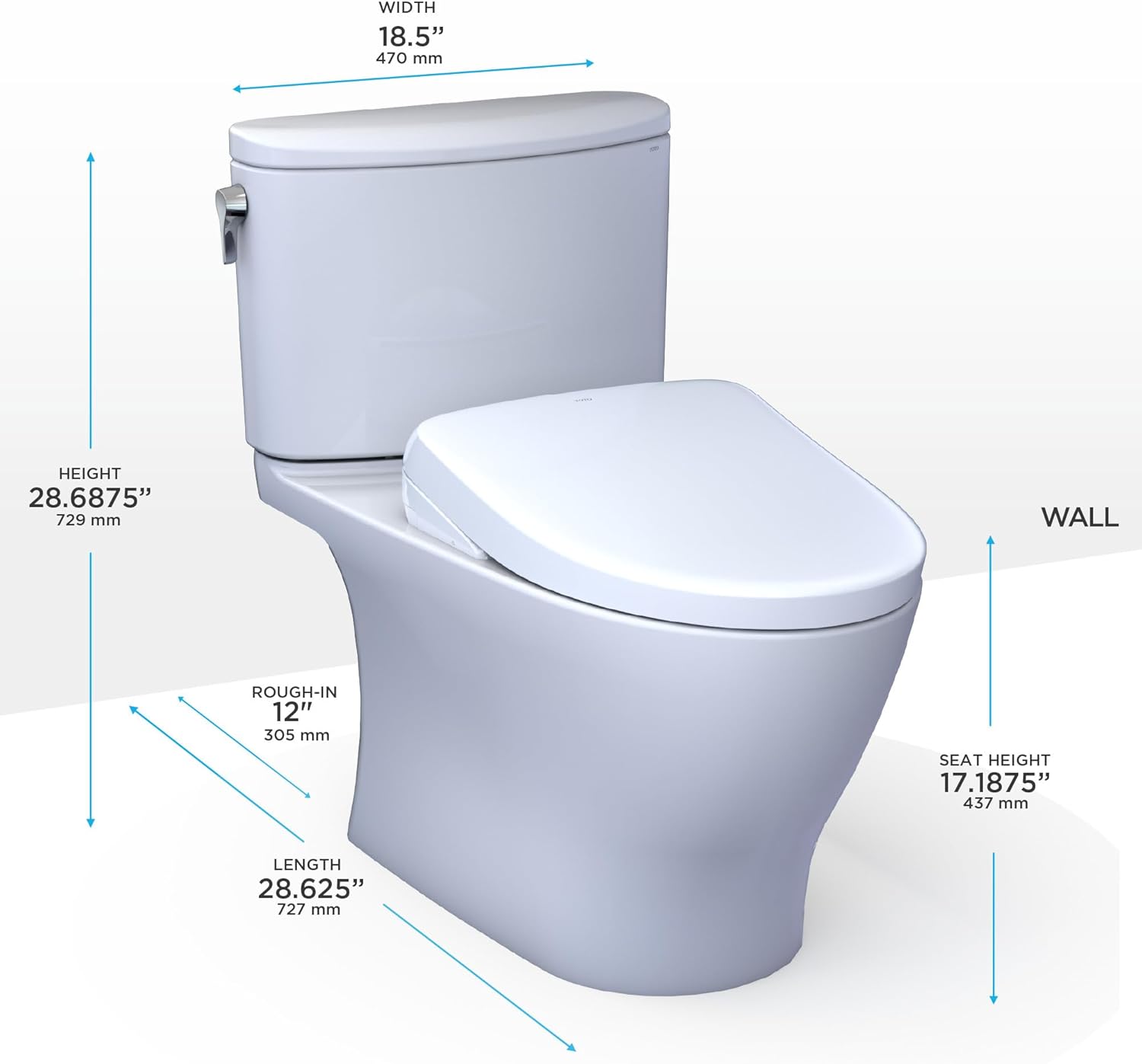

The Nexus 1G WASHLET+ S2 is a complete toilet replacement. Confirm these measurements before ordering.

Rough-in measurement: 12-inch standard, with a 14-inch option available. A 10-inch rough-in is not available for this model.
Bowl shape: Elongated bowl only. This unit is not compatible with round toilet flanges.
Floor clearance: At least 21 inches of clear space in front of the toilet for access and use.
Electrical outlet: GFCI 120V outlet required within 3 feet of the toilet for WASHLET+ power and heated functions.
Drain configuration: Standard P-trap or S-trap drain. Confirm flange is secure and level before installation.

Installation steps

Prep the area. Shut off the water, flush to empty the tank, and remove the old toilet completely.
Set the wax ring. Place a new wax ring on the flange, ensuring the flange is level and clean.
Seat the new toilet. Lower the Nexus onto the flange, align the bolt holes, and tighten bolts evenly in a cross pattern.
Connect water supply. Attach the fill valve hose and WASHLET+ concealed water supply line; turn water back on and check for leaks.
Power and test. Plug the WASHLET+ into the nearby GFCI outlet and test all wash and dry functions.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

Toto Nexus 1G WASHLET+ S2 Two-Piece Toilet - 1.0 GPF Downloads

Frequently Asked Questions about TOTO Nexus 1G S2 MW4423346CUFG#01

What does the "1G" designation mean?

The "1G" indicates that the toilet uses just 1.0 gallon per flush, making it one of TOTO's most water-efficient toilet systems.

Does the Nexus 1G WASHLET+ S2 require electricity?

Yes. A nearby 120V GFCI-protected outlet is required to power the WASHLET's heated seat, warm water cleansing, dryer, and deodorizer.

What rough-in size is required for installation?

The Nexus 1G WASHLET+ S2 is designed for a standard 12-inch rough-in.

Does the WASHLET S2 include a heated seat and warm air dryer?

Yes. The S2 features both a heated seat and adjustable warm air dryer for enhanced comfort.

Are the hoses and power cords visible after installation?

No. The WASHLET+ system conceals water and electrical connections to provide a cleaner, more integrated appearance.

Toto Nexus 1G WASHLET+ S2 Two-Piece Toilet - 1.0 GPF

TORNADO FLUSH® at 1.0 GPF

TOTO builds this Nexus 1G on its TORNADO FLUSH system and rates it on the sheet at 1.0 GPF (3.8 LPF).

This is a single-flush toilet: one volume, 1.0 GPF (3.8 LPF), with no reduced-flush setting to choose between.

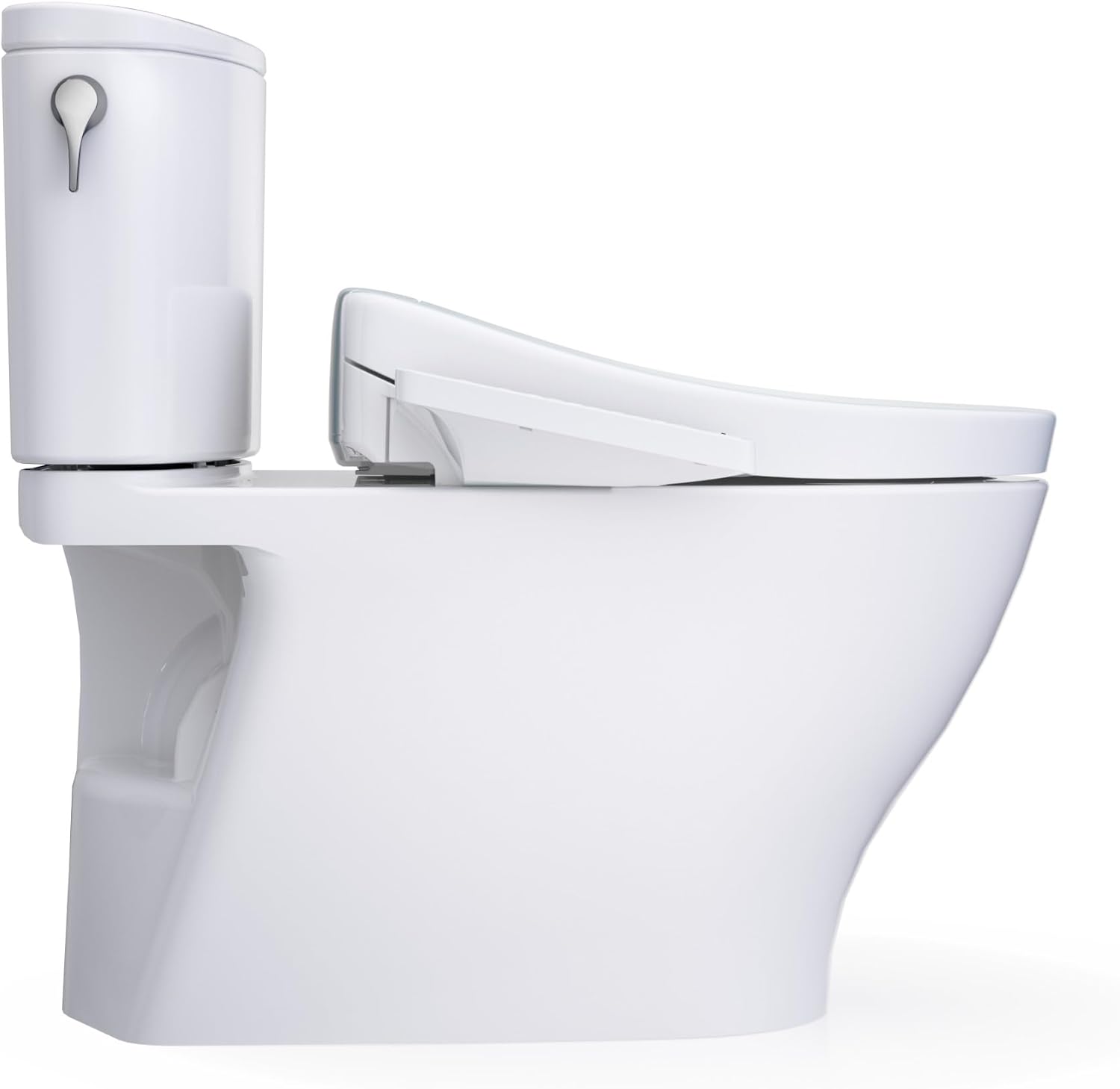

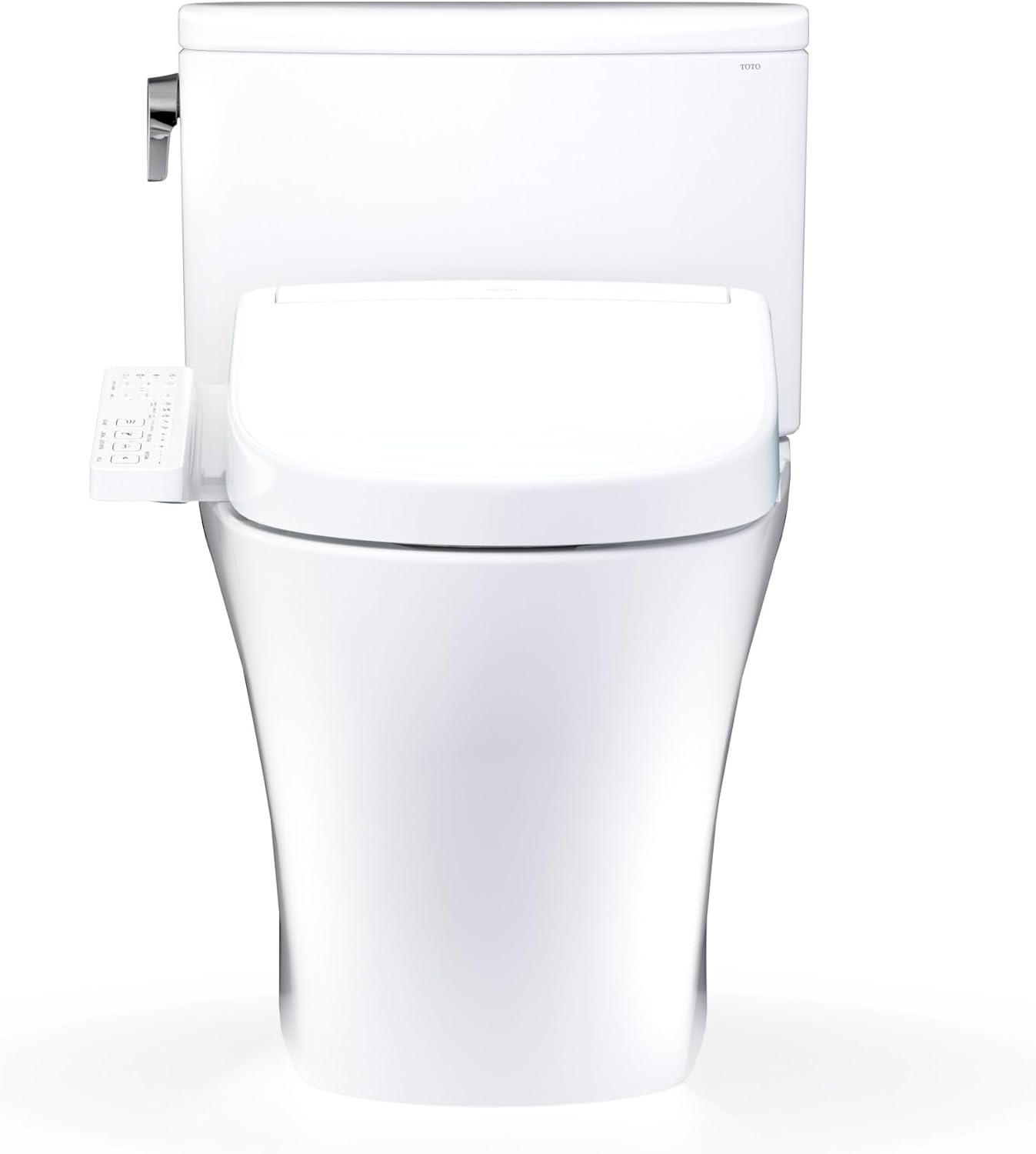

The flush is operated by a chrome plated trip lever on the side of the tank, the trap measures 2-1/8" across, and the bowl sets on a standard 12" rough-in with a 14" option.

TORNADO FLUSH system at 1.0 GPF
Single 1.0 GPF (3.8 LPF) flush
Chrome plated trip lever flush control

CEFIONTECT® with a Completely Skirted WASHLET+ Design

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

TOTO describes the completely skirted design as a sleek and understated look that is easier to clean, with no contoured trapway to wipe around.

This is a two-piece toilet, so the tank and bowl are separate components, and TOTO lists the bowl as CT442CUFGT40.

CEFIONTECT glazed elongated bowl
Completely skirted two-piece exterior
Concealed WASHLET+ supply connection

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

On the two-piece Nexus 1G, the S2 handles front and rear cleansing with gentle aerated warm water, oscillating and pulsating.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 95ºF–104ºF.

TOTO does not state the heating type for this seat, so this page claims none, the seat is heated across 82ºF–97ºF, and the warm air dryer offers three variable settings.

Front and rear aerated warm water
Oscillating and pulsating spray modes
Three-setting warm air dryer

EWATER+®, PREMIST® and Convenient Arm Controls

EWATER+ auto-cleans the wand after every use, and PREMIST puts a film of water in the bowl before you sit down.

The wand also cleans itself inside and out before and after every use.

Controls are handled by a convenient arm control panel, and CLEAN RESIN keeps the wand and seat easier to maintain. Night light illuminates the inside of the bowl.

EWATER+ on the wand
PREMIST before every use
Convenient arm control panel

What do you get with the Nexus 1G WASHLET+ S2?

This is combination MW4423346CUFG#01: the Nexus 1G two-piece toilet with the CT442CUFGT40 elongated CEFIONTECT bowl, and the SW3346 WASHLET+ S2, in Cotton.

It is Universal Height, flushes once at 1.0 GPF (3.8 LPF), and sets on a 12" rough-in with a 14" option available.

The two-piece set also lists TOTO's 9AU321-A WASHLET Adaptor, the part that makes the concealed WASHLET+ connection at the tank.

TOTO lists no auto-flush kit for this combination, and the trap measures 2-1/8" across.

One caution about TOTO's paperwork: the MODELS table on this model's own sheet prints the 1.28 GPF tank number, which contradicts the 1.0 GPF rating on the rest of that sheet, so no tank part number is published here.

TOTO Nexus 1G WASHLET+ S2 Two-Piece Toilet Features

Feature	Details
Nexus 1G Toilet Features
TORNADO FLUSH®	TORNADO FLUSH system - 1.0 GPF (3.8 LPF).
Water Use	Single flush, 1.0 GPF (3.8 LPF).
CEFIONTECT®	Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Completely Skirted Design	A sleek and understated look that's easier to clean.
Trap Diameter	2-1/8".
WASHLET+ Concealed Connection	Concealed supply connection for seamless installation.
Two-Piece Construction	Elongated front bowl toilet and tank with WASHLET+ S2 set.
Universal Height	Universal Height.
Flush Control	Chrome plated trip lever.
WASHLET Adaptor	9AU321-A WASHLET Adaptor listed with the two-piece set.
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination.
WASHLET S2 Features
Front and Rear Cleansing	Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing	Adjustable spray position, water temperature, and water pressure.
Warm Air Dryer	Three variable temperature settings, 95ºF–140ºF.
Heated Seat	Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer	Automatic air deodorizer.
EWATER+®	Auto-cleans the wand after every use.
PREMIST®	Automatically mists the bowl before each use.
Self-Cleaning Wand	Cleans itself inside and out before and after every use.
CLEAN RESIN®	Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat	Seamless seat design eliminates the gap where dirt collects.
Night Light	Illuminates the inside of the bowl.
Controls	Convenient arm control panel.
Auto Energy Saver	Adjusts the seat temperature when inactive.

TOTO Nexus 1G WASHLET+ S2 Two-Piece Toilet Specifications

Specification	Details
Combination Model	MW4423346CUFG#01
Series	Nexus 1G
Toilet Construction	Two-Piece
Bowl Model	CT442CUFGT40
Tank Model	Not published — TOTO's sheet for this model prints the 1.28 GPF tank number in its MODELS table, which contradicts the 1.0 GPF rating on the rest of the same sheet
WASHLET Model	SW3346 (WASHLET+ S2)
WASHLET Adaptor	9AU321-A
Bowl Shape	Elongated, completely skirted
Color	#01 Cotton
Height Classification	Universal Height
Seat Height	Not stated on this sheet
Rough-In	12"
Optional Rough-In	14" option available
Trap Diameter	2-1/8"
Water Use	1.0 GPF (3.8 LPF)
Flush System	TORNADO FLUSH®
Flush Control	Chrome plated trip lever
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination
Electrical	Not stated on this sheet
ADA Compliance	ADA compliant for residential use when installed with trip lever located on the approach side
Warranty	One Year Limited Warranty (combination)
