TOTO Nexus WASHLET+ S5 — MW4423446CEFG#01

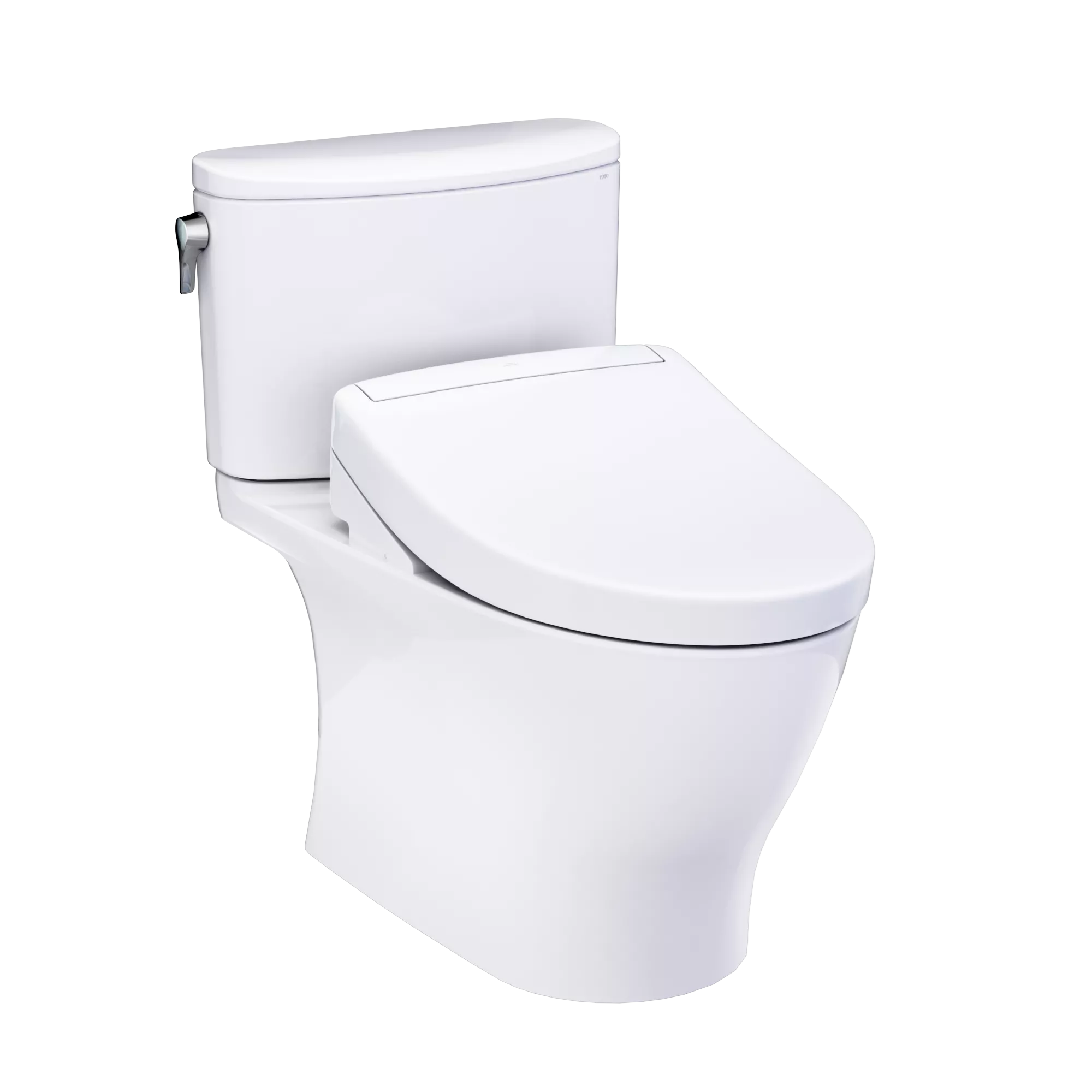

The TOTO Nexus WASHLET+ S5 Two-Piece Toilet pairs a completely skirted two-piece body flushing at 1.28 GPF on TORNADO FLUSH® with the WASHLET+ S5 and the wireless remote that stores each user's settings.

The remote stores its own settings for up to four people, so a shared bathroom stops being a negotiation over water temperature and pressure, and nobody has to reset the seat after somebody else has used it.

Toilet Type: Two-piece WASHLET+ toilet
Height: Universal Height
Bowl Shape: Elongated, completely skirted
Flush: High-efficiency TORNADO FLUSH® — single 1.28 GPF (4.8 LPF)
Rough-In: 12" standard; 14" option available
Included WASHLET: WASHLET+ S5 (SW3446)
Controls: Multifunction remote, memory for up to 4 users
Auto Flush: Not included — TOTO lists no auto-flush kit for this combination

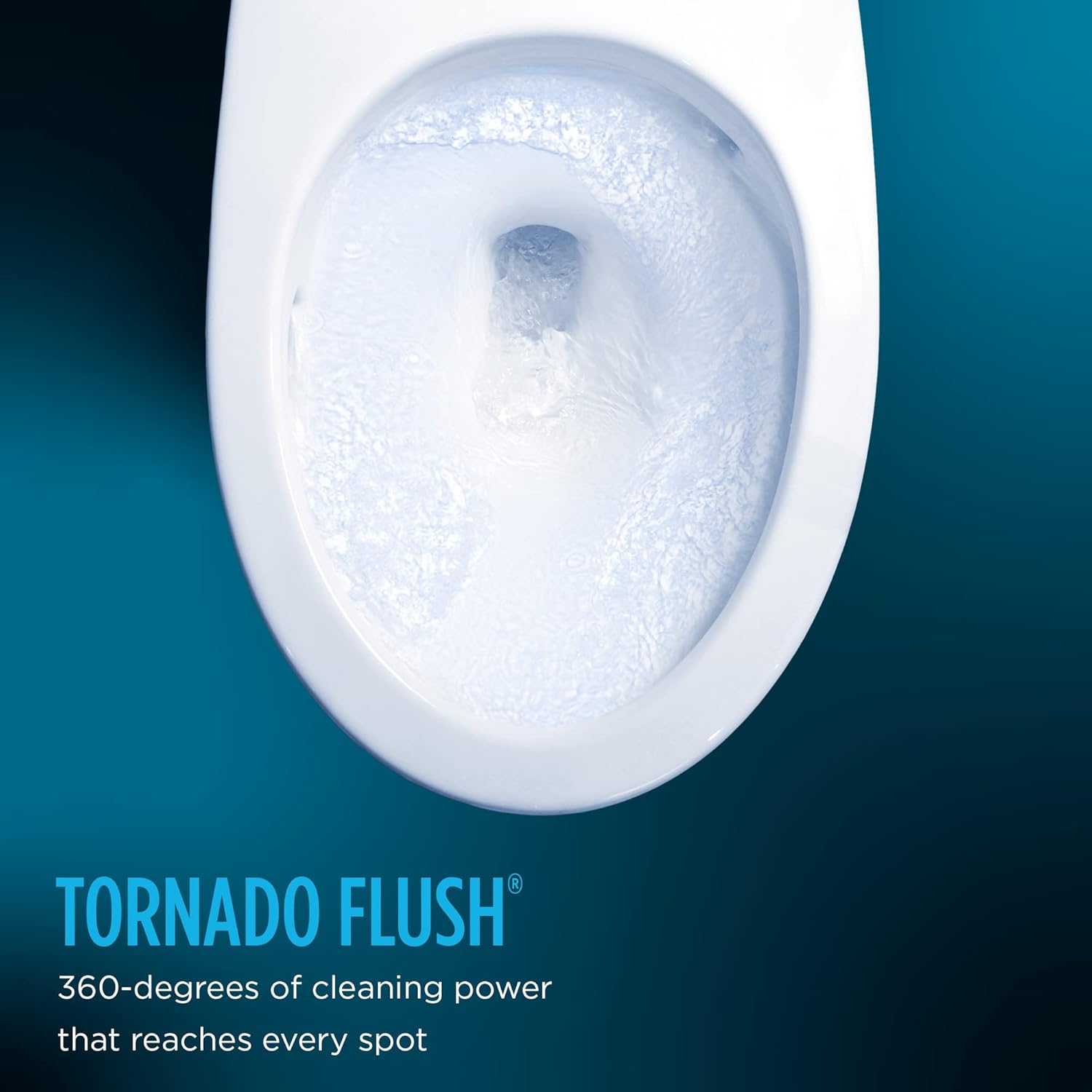

High-efficiency TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single 1.28 GPF flush, which TOTO classes as high-efficiency.

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

Completely Skirted WASHLET+ Design

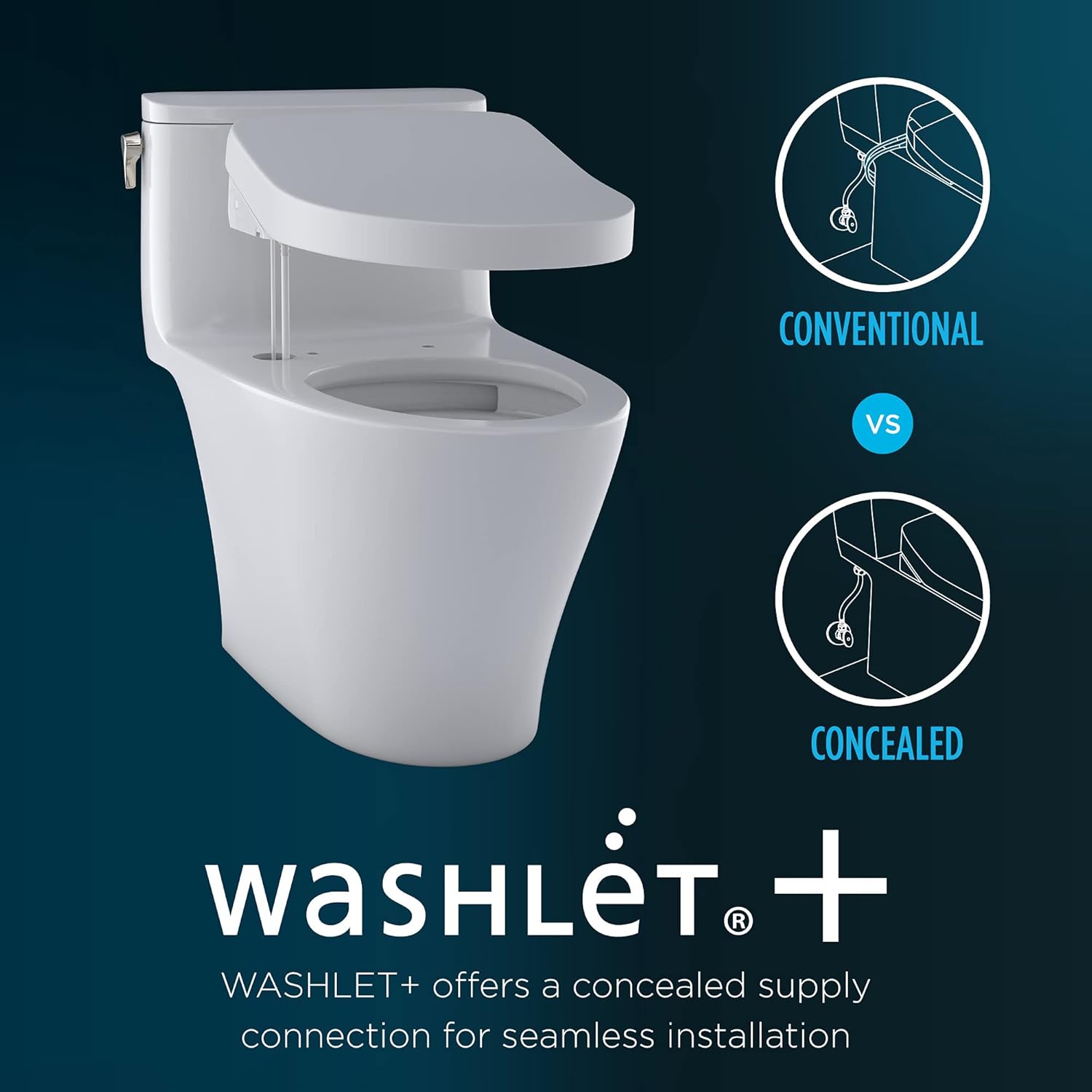

The skirted exterior gives you a flat surface to wipe rather than a contoured trapway, and the WASHLET+ connection conceals the seat's supply line.

Adjustable Warm-Water Cleansing

Front and rear washing uses aerated warm water, oscillating and pulsating, with spray position, temperature and pressure all adjusting independently.

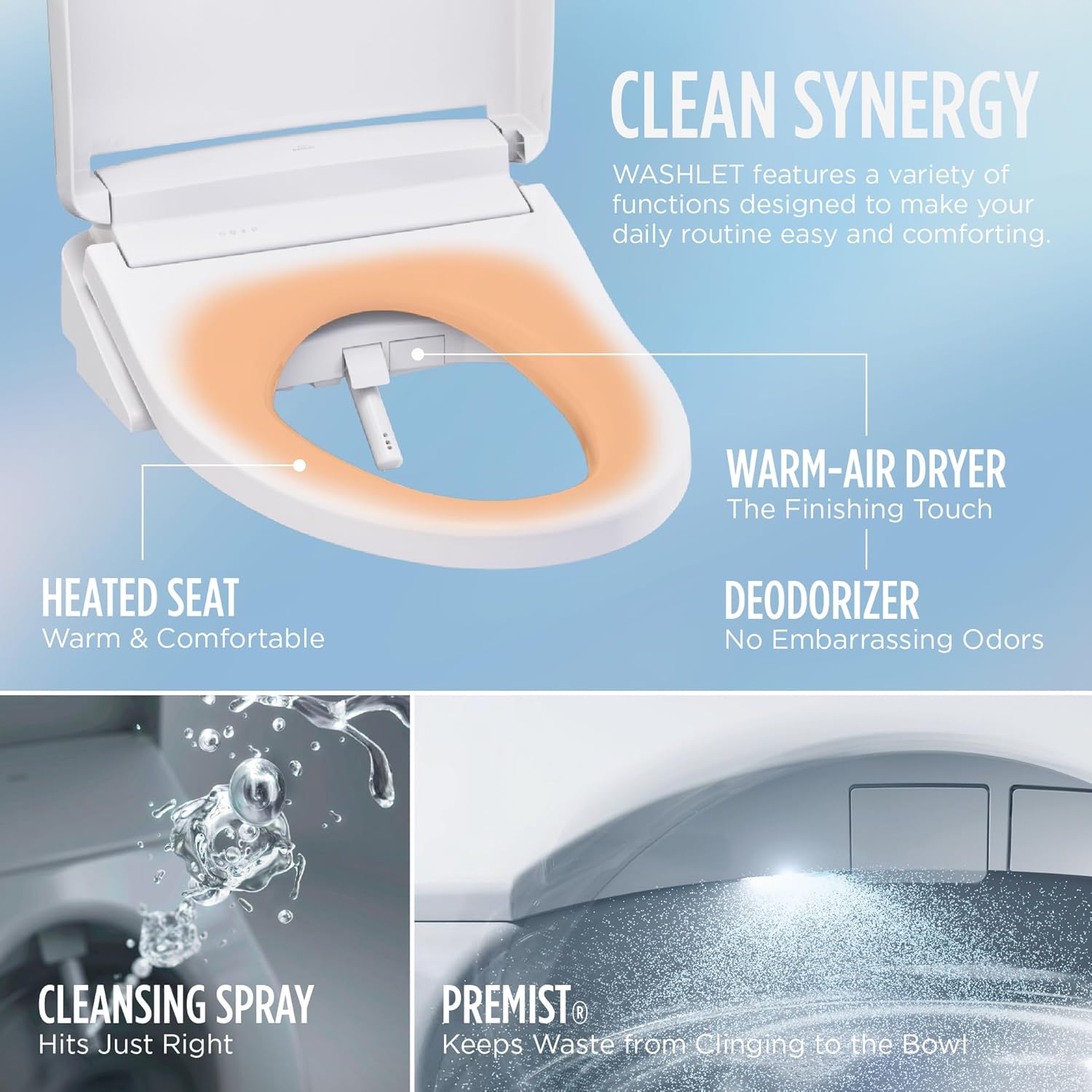

Heated Seat and Three-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers three variable temperature settings.

Wireless Remote with Four-User Memory

The wireless remote stores personalized settings for up to four users, so each person gets their own temperature and pressure without resetting anything.

TOTO Nexus S5 MW4423446CEFG#01 Installation

Toto Nexus WASHLET + S5 Two-Piece Toilet - 1.28 GPF Compatibility

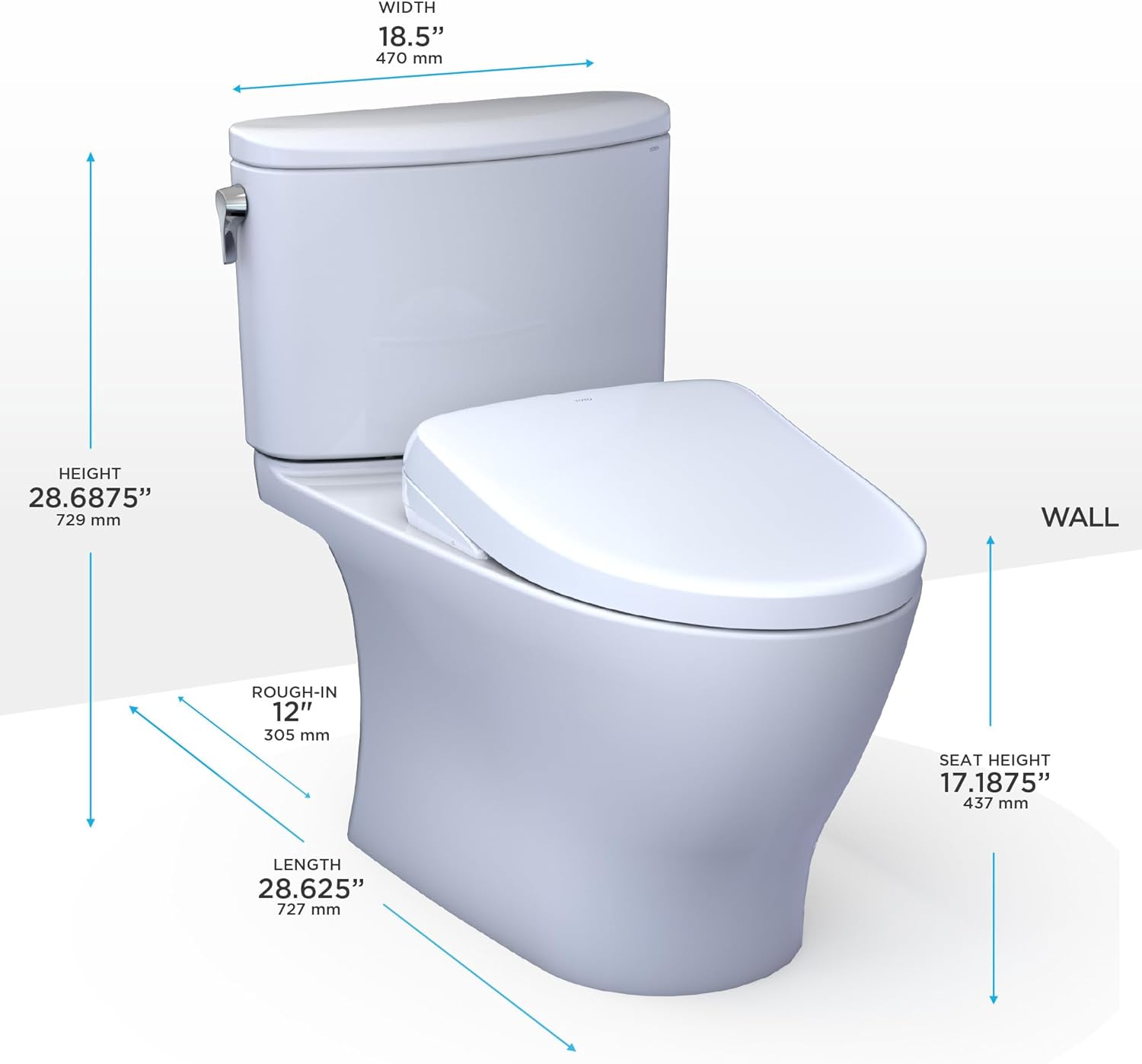

The Nexus WASHLET+ S5 is a two-piece elongated toilet with integrated bidet. Verify these five measurements before installation.

Rough-in measurement: 12-inch standard, with a 14-inch option available. A 10-inch rough-in is not available for this model.
Bowl shape: Elongated bowl only. Measure the distance from the seat bolt holes to the front of the bowl to confirm elongated fitment.
Floor clearance: Allow at least 21 inches of clear space in front of the toilet for lid lift and bidet access.
Electrical outlet: GFCI 120V outlet required within 3 feet of the toilet for the WASHLET+ and bidet heater.
Drain configuration: Floor-mounted drain only. Wall-hung or ceiling-mounted drains are not compatible.

Installation steps

Prep. Shut off the water supply, flush to empty the tank, and remove the old toilet completely.
Set the wax ring. Clean the floor flange, place a new wax ring centered on the flange opening, and check for debris.
Seat the new toilet. Align the Nexus onto the wax ring, press down firmly, and bolt the base to the floor flange.
Connect the water and waste. Attach the fill valve inlet line, route the WASHLET+ supply hose to the T-connector, and restore water pressure.
Power up and test. Plug the WASHLET+ into the GFCI outlet, test flush and bidet functions, and check for leaks around bolts and connections.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

Toto Nexus WASHLET + S5 Two-Piece Toilet - 1.28 GPF Download

Frequently Asked Questions about TOTO Nexus S5 MW4423446CEFG#01

Does the Nexus WASHLET+ S5 provide unlimited warm water cleansing?

Yes. The WASHLET S5 uses an instantaneous water heater that delivers continuous warm water during use.

What rough-in size is required for installation?

The Nexus WASHLET+ S5 is designed for a standard 12-inch rough-in.

Does this model include a heated seat and warm air dryer?

Yes. The WASHLET S5 features both a heated seat and an adjustable warm air dryer for added comfort.

Are the water supply hoses and power cords visible after installation?

No. The WASHLET+ system conceals the water and electrical connections for a cleaner, more integrated appearance.

Does the Nexus WASHLET+ S5 have automatic flushing?

No. The S5 model does not include auto flush functionality. Automatic flushing is available on select higher-end WASHLET+ models.

Toto Nexus WASHLET + S5 Two-Piece Toilet - 1.28 GPF

TORNADO FLUSH® at 1.28 GPF

TOTO builds this Nexus on its TORNADO FLUSH system, which the sheet describes as high-efficiency at 1.28 GPF.

This is a single-flush toilet: one volume, 1.28 GPF (4.8 LPF), with no reduced-flush setting to choose between.

The flush is operated by a chrome plated trip lever on the side of the tank, the trap measures 2-1/8" across, and the bowl sets on a standard 12" rough-in with a 14" option.

High-efficiency TORNADO FLUSH system
Single 1.28 GPF (4.8 LPF) flush
Chrome plated trip lever flush control

CEFIONTECT® with a Completely Skirted WASHLET+ Design

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

TOTO describes the completely skirted design as a sleek and understated look that is easier to clean, with no contoured trapway to wipe around.

This is a two-piece toilet, so the tank and bowl are separate components: the CT442CUFGT40 bowl with the ST442EA tank.

CEFIONTECT glazed elongated bowl
Completely skirted two-piece exterior
Concealed WASHLET+ supply connection

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

The S5 fitted to this two-piece Nexus cleanses front and rear using gentle aerated warm water, with both oscillating and pulsating features.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 95ºF–104ºF.

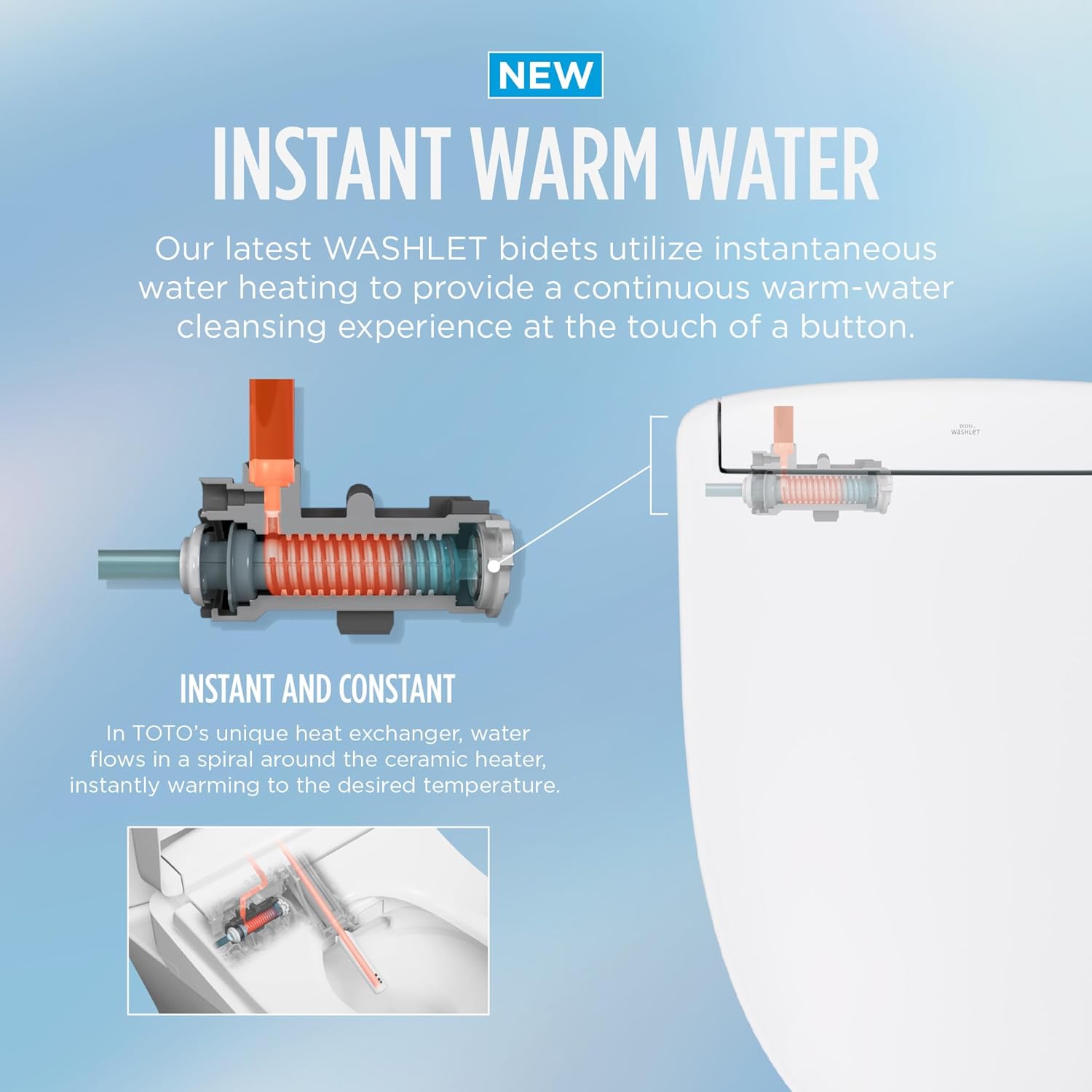

An instantaneous water heater supplies continuous warm water, the seat is heated across 82ºF–97ºF, and the warm air dryer offers three variable settings.

Front and rear aerated warm water
Oscillating and pulsating spray modes
Three-setting warm air dryer

EWATER+®, PREMIST® and a Wireless Remote with User Memory

EWATER+ auto-cleans the wand after every use, and PREMIST automatically mists the bowl before each one.

The wand also cleans itself inside and out before and after every use.

Controls are handled by a multifunction remote control with personalized memory settings for up to 4 users, and CLEAN RESIN keeps the wand and seat easier to maintain. Night light illuminates the inside of the bowl.

EWATER+ on the wand
PREMIST before every use
Memory settings for up to four users

What do you get with the Nexus WASHLET+ S5?

This is combination MW4423446CEFG#01: the Nexus two-piece toilet with the CT442CUFGT40 elongated CEFIONTECT bowl, the ST442EA tank, and the SW3446 WASHLET+ S5, in Cotton.

It is Universal Height, flushes once at 1.28 GPF (4.8 LPF), and sets on a 12" rough-in with a 14" option available.

The two-piece set also lists TOTO's 9AU321-A WASHLET Adaptor, the part that makes the concealed WASHLET+ connection at the tank.

TOTO lists no auto-flush kit for this combination, and the trap measures 2-1/8" across.

TOTO Nexus WASHLET+ S5 Two-Piece Toilet Features

Feature	Details
Nexus Toilet Features
TORNADO FLUSH®	High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF).
Water Use	Single flush, 1.28 GPF (4.8 LPF).
CEFIONTECT®	Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Completely Skirted Design	A sleek and understated look that's easier to clean.
Trap Diameter	2-1/8".
WASHLET+ Concealed Connection	Concealed supply connection for seamless installation.
Two-Piece Construction	Elongated front bowl toilet and tank with WASHLET+ S5 set.
Universal Height	Universal Height.
Flush Control	Chrome plated trip lever.
WASHLET Adaptor	9AU321-A WASHLET Adaptor listed with the two-piece set.
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination.
WASHLET S5 Features
Front and Rear Cleansing	Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing	Adjustable spray position, water temperature, and water pressure.
Instantaneous Water Heating	Instantaneous water heater for continuous warm water and energy savings.
Warm Air Dryer	Three variable temperature settings, 95ºF–140ºF.
Heated Seat	Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer	Automatic air deodorizer.
EWATER+®	Auto-cleans the wand after every use.
PREMIST®	Automatically mists the bowl before each use.
Self-Cleaning Wand	Cleans itself inside and out before and after every use.
CLEAN RESIN®	Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat	Seamless seat design eliminates the gap where dirt collects.
Night Light	Illuminates the inside of the bowl.
Controls	Multifunction remote control with personalized memory settings for up to 4 users.
User Memory	Personalized memory settings for up to 4 users.
Auto Energy Saver	Adjusts the seat temperature when inactive.

TOTO Nexus WASHLET+ S5 Two-Piece Toilet Specifications

Specification	Details
Combination Model	MW4423446CEFG#01
Series	Nexus
Toilet Construction	Two-Piece
Bowl Model	CT442CUFGT40
Tank Model	ST442EA
WASHLET Model	SW3446 (WASHLET+ S5)
WASHLET Adaptor	9AU321-A
Bowl Shape	Elongated, completely skirted
Color	#01 Cotton
Height Classification	Universal Height
Seat Height	Not stated on this sheet
Rough-In	12"
Optional Rough-In	14" option available
Trap Diameter	2-1/8"
Water Use	1.28 GPF (4.8 LPF)
Flush System	TORNADO FLUSH®
Flush Control	Chrome plated trip lever
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination
Electrical	Not stated on this sheet
ADA Compliance	ADA compliant for residential use when installed with trip lever located on the approach side
Warranty	One Year Limited Warranty (combination)
