TOTO Nexus WASHLET+ S2 — MW4423346CEFG#01

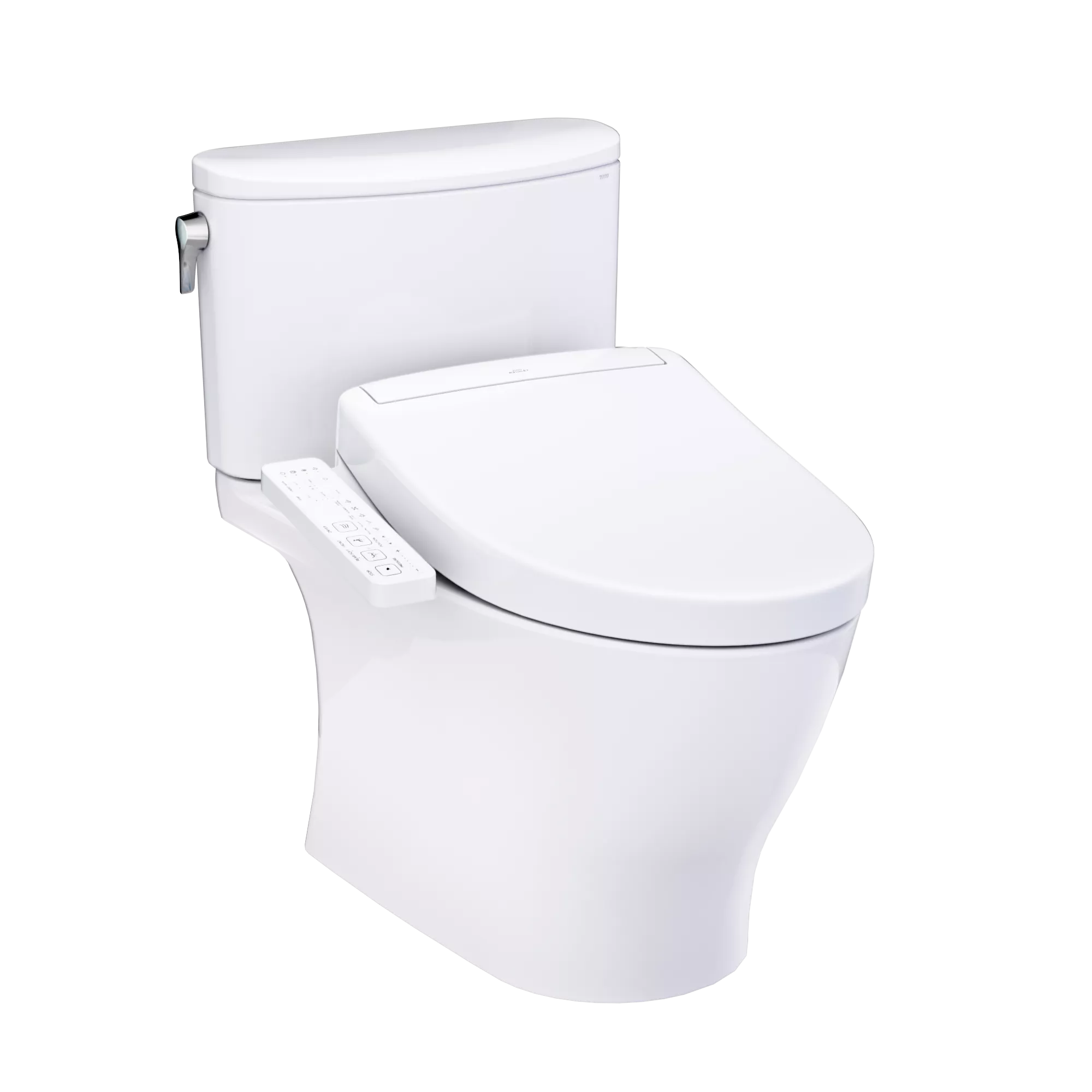

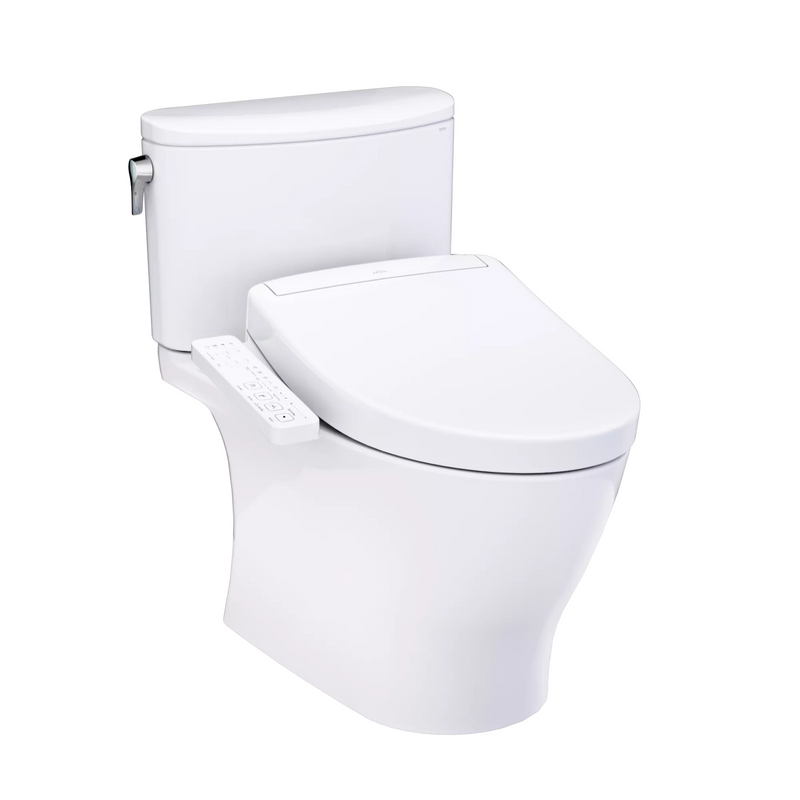

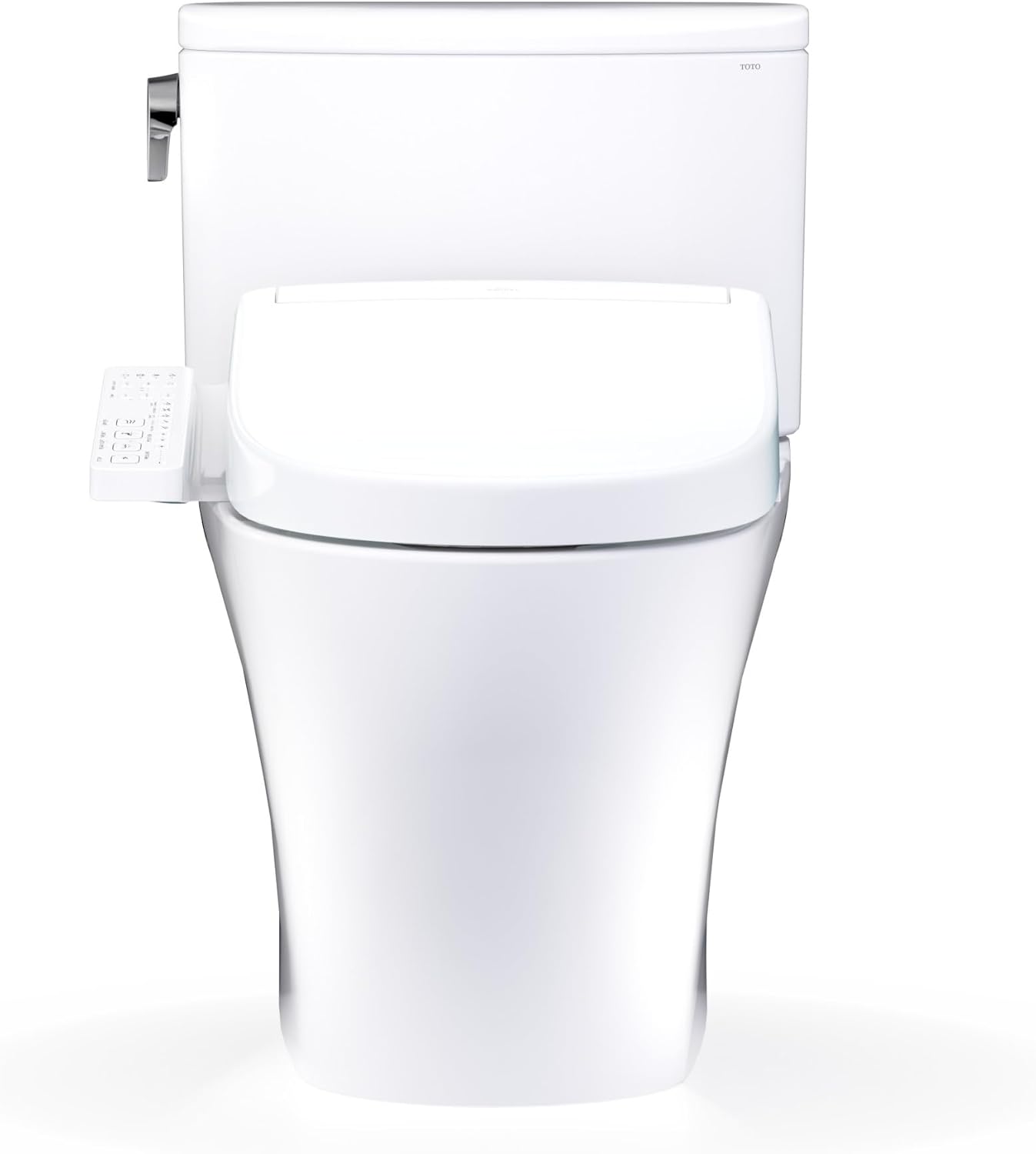

The TOTO Nexus WASHLET+ S2 Two-Piece Toilet is a completely skirted two-piece toilet flushing once at 1.28 GPF on TOTO's TORNADO FLUSH® system, with the WASHLET+ S2 and its arm control panel already fitted.

Controls sit on an arm panel beside the seat rather than on a remote, which keeps the installation simple and leaves nothing to misplace, mount or fit batteries to. Everything the seat does is reached from where you are sitting.

Toilet Type: Two-piece WASHLET+ toilet
Height: Universal Height
Bowl Shape: Elongated, completely skirted
Flush: High-efficiency TORNADO FLUSH® — single 1.28 GPF (4.8 LPF)
Rough-In: 12" standard; 14" option available
Included WASHLET: WASHLET+ S2 (SW3346)
Controls: Arm control panel
Auto Flush: Not included — TOTO lists no auto-flush kit for this combination

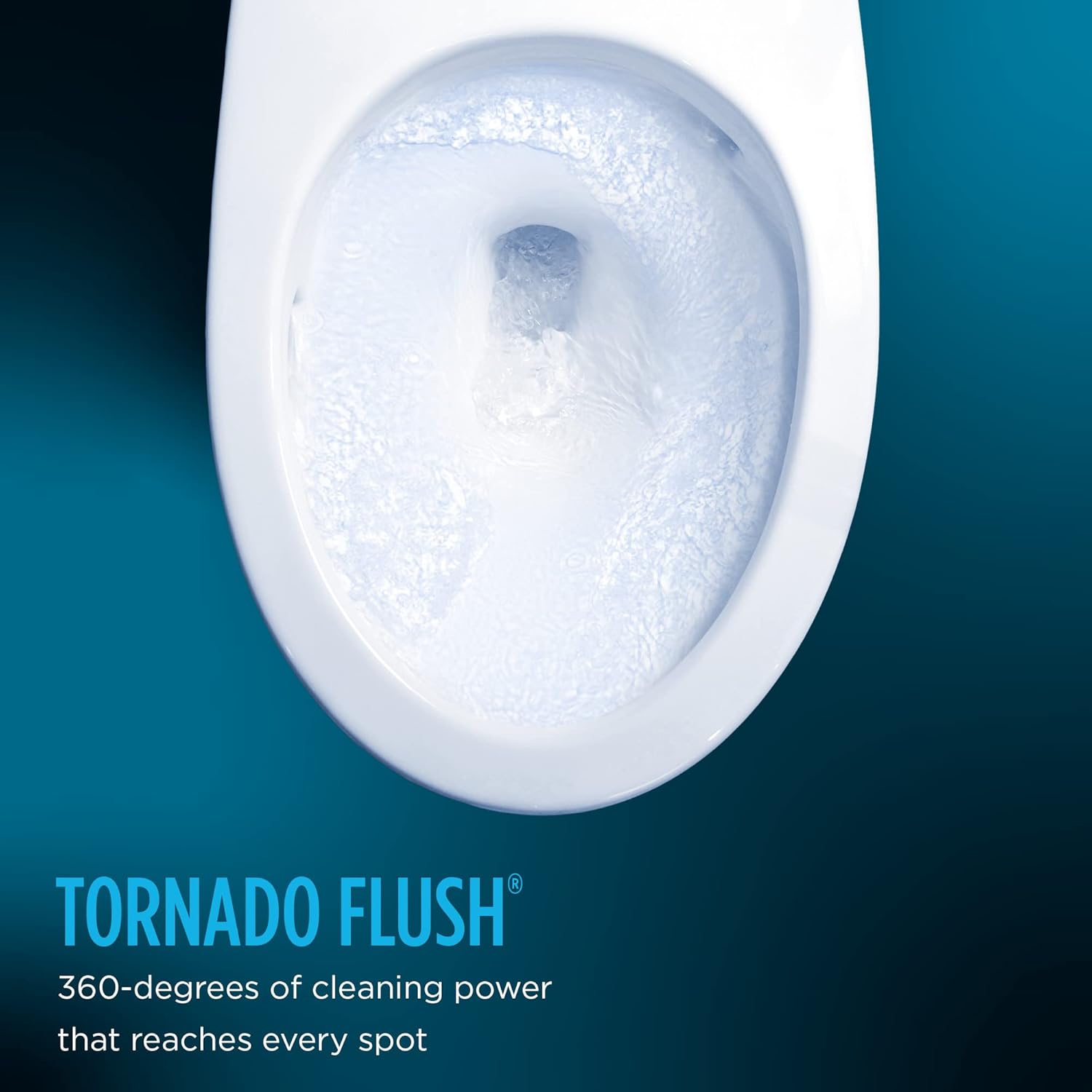

High-efficiency TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single 1.28 GPF flush, which TOTO classes as high-efficiency.

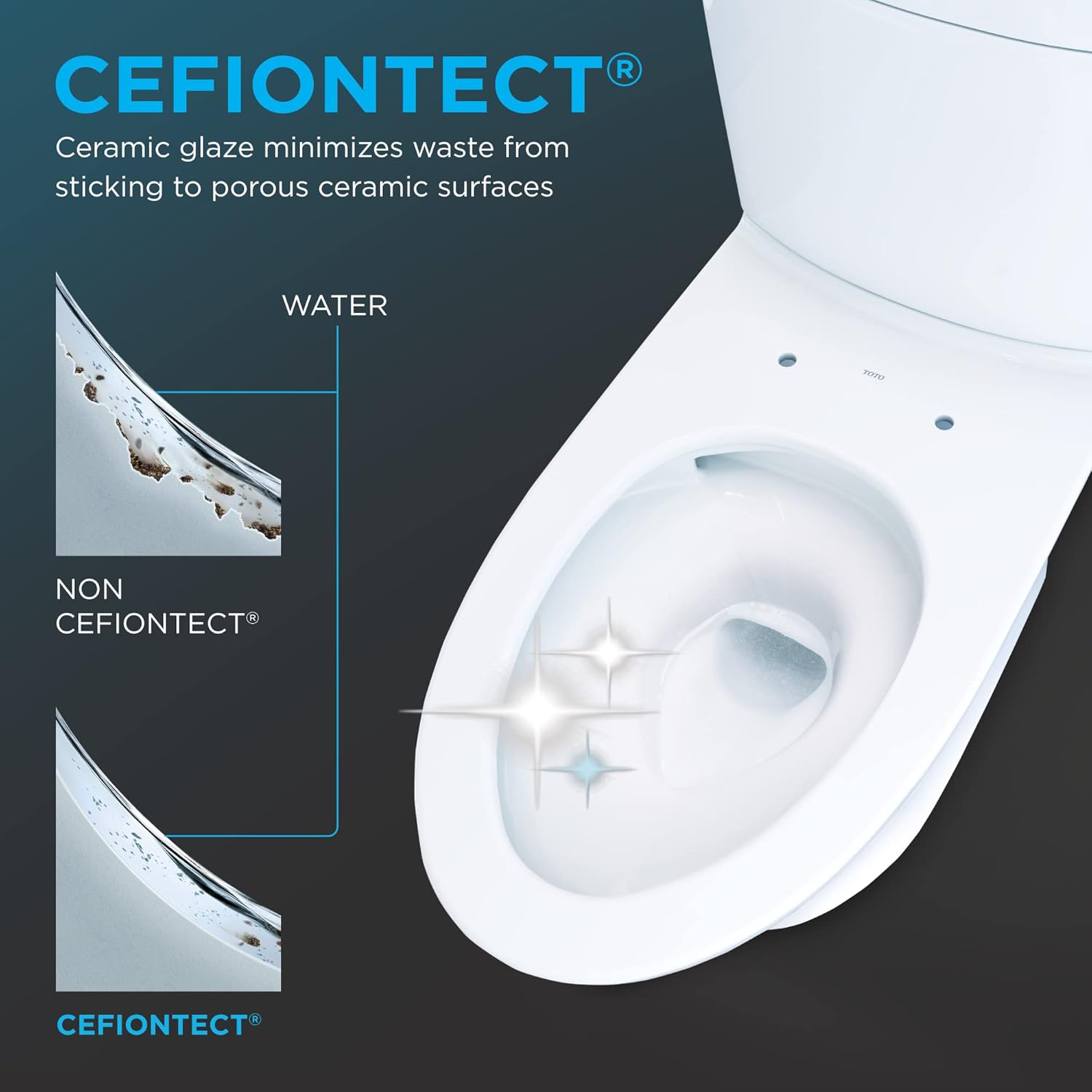

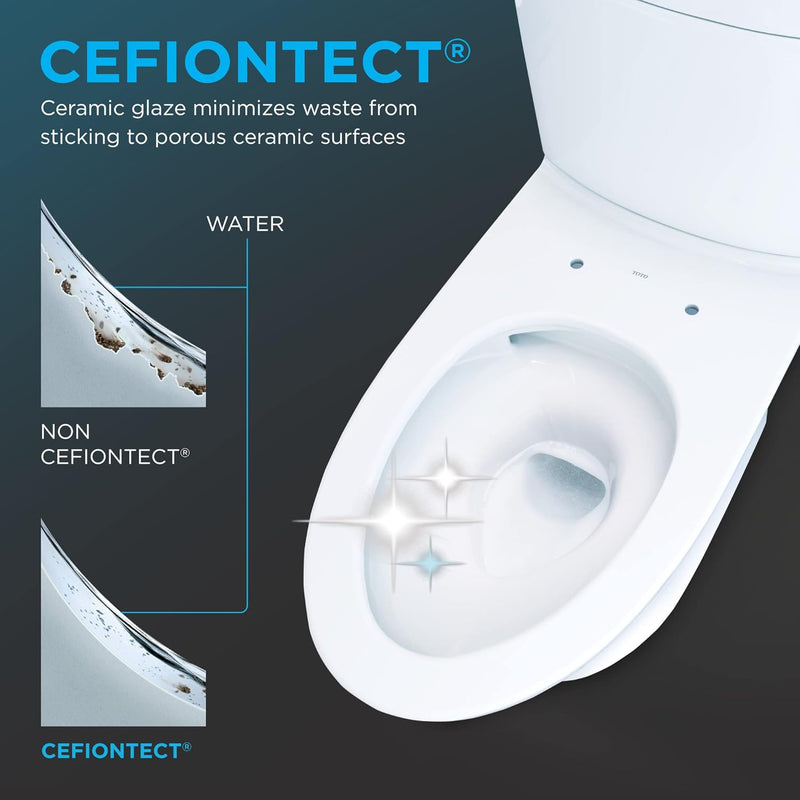

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

Completely Skirted WASHLET+ Design

The skirted exterior gives you a flat surface to wipe rather than a contoured trapway, and the WASHLET+ connection conceals the seat's supply line.

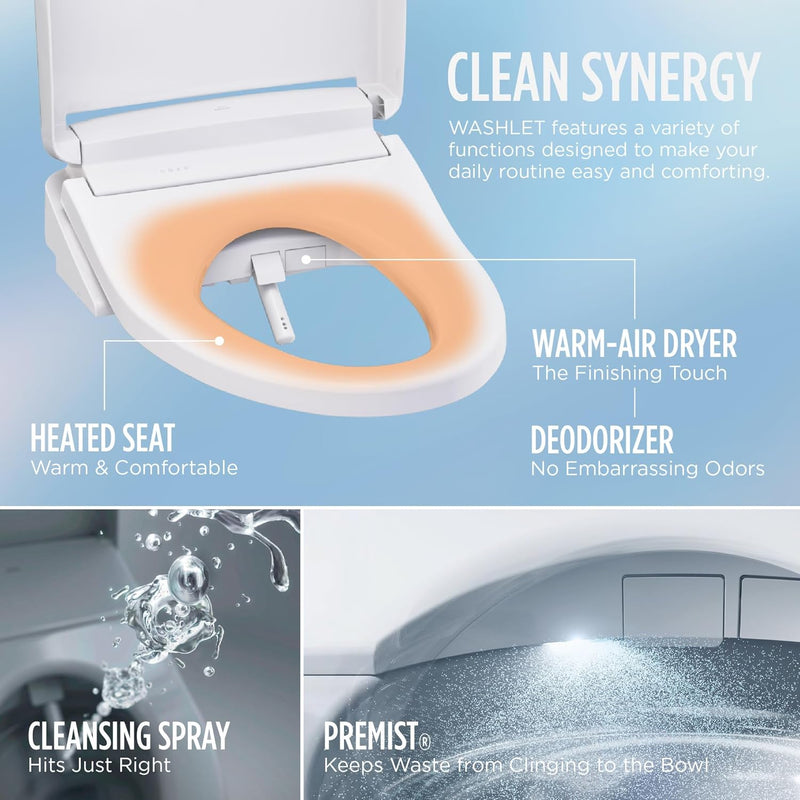

Adjustable Warm-Water Cleansing

Front and rear washing uses aerated warm water with oscillating and pulsating modes, and spray position, temperature and pressure each adjust separately.

Heated Seat and Three-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers three variable temperature settings.

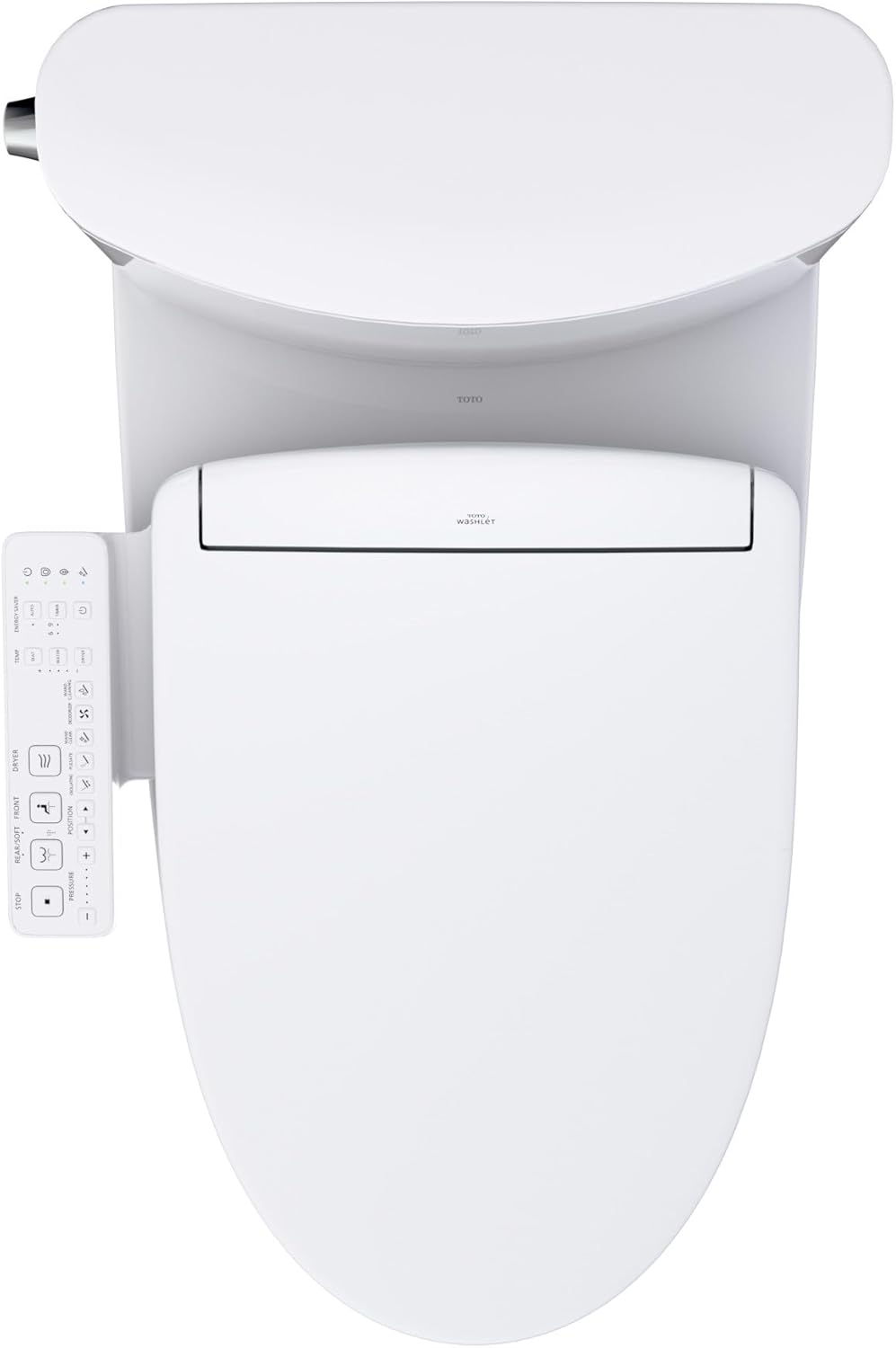

Arm Control Panel

Everything the seat does is reached from an arm panel beside you, so there is no remote to mount, misplace or fit batteries to.

TOTO Nexus S2 MW4423346CEFG#01 Installation

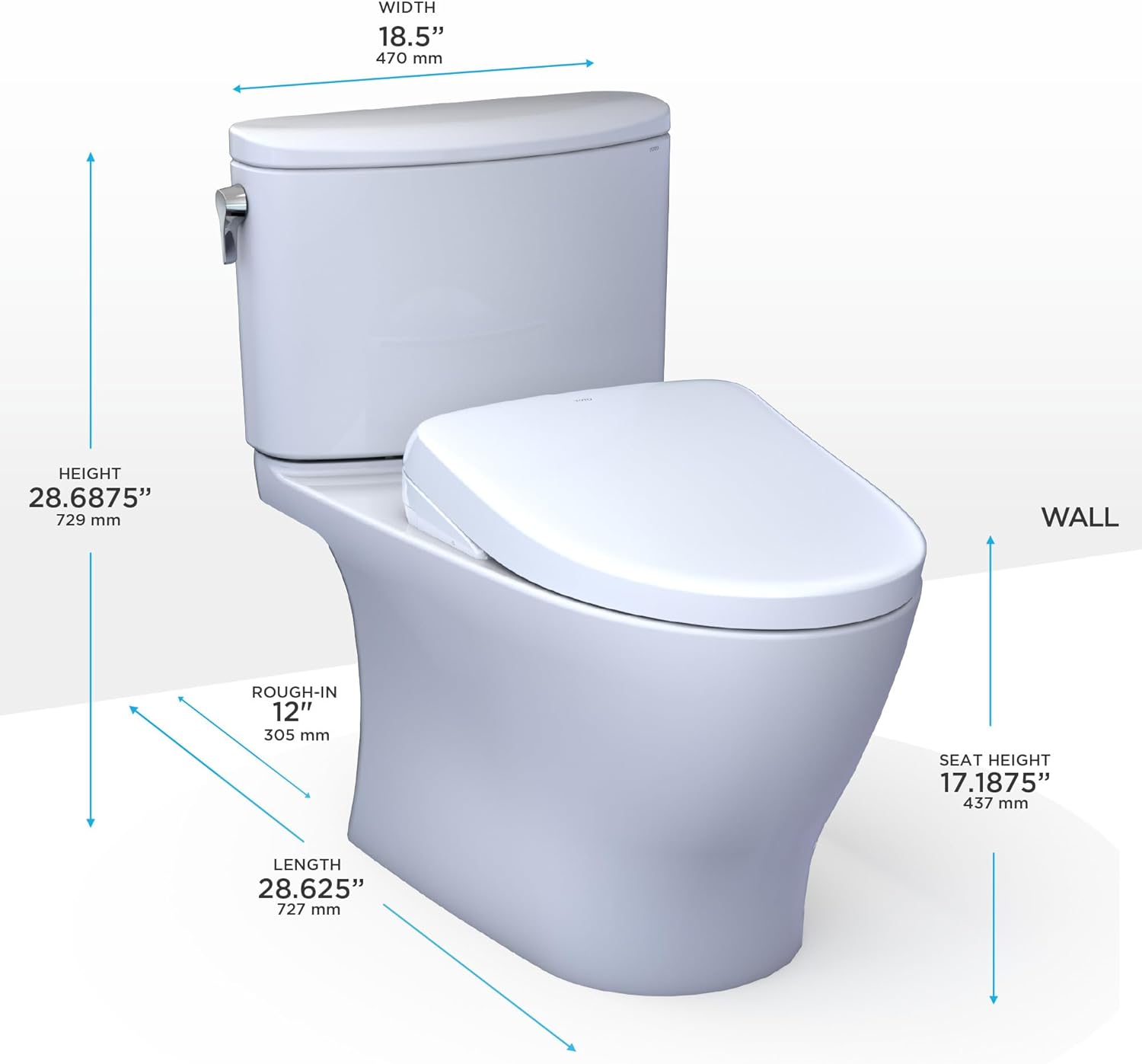

Toto Nexus WASHLET + S2 Two-Piece Toilet - 1.28 GPF dimensions

Toto Nexus WASHLET + S2 Two-Piece Toilet - 1.28 GPF Compatibility

The TOTO Nexus WASHLET+ S2 is a two-piece elongated smart toilet with an integrated bidet seat. Confirm these four things before ordering:

Rough-in measurement: 12-inch standard, with a 14-inch option available. A 10-inch rough-in is not available for this model.
Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
Water supply: Standard ½-inch connection at the base of the toilet.
Electrical outlet: GFCI 120V within 3 feet (powers integrated WASHLET+ bidet seat).

Installation steps

Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
Set the wax ring. Place a new wax ring on the flange, centered over the drain.
Seat the bowl. Lower the bowl onto the flange, press down firmly, and hand-tighten the bolts evenly.
Attach the tank. Bolt the tank to the bowl using the supplied bolts and gasket.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

Toto Nexus WASHLET+ S2 Two-Piece Toilet - 1.28 GPF Dowloads

Frequently Asked Questions about TOTO Nexus S2 MW4423346CEFG#01

Does the Nexus WASHLET+ S2 require an electrical outlet?

Yes. A nearby 120V GFCI-protected outlet is required to power the WASHLET's heated seat, warm water cleansing, dryer, and deodorizer.

What rough-in size does this toilet require?

The Nexus WASHLET+ S2 is designed for a standard 12-inch rough-in installation.

Does the WASHLET S2 provide warm water cleansing?

Yes. The S2 features adjustable warm water front and rear cleansing with customizable temperature and pressure settings.

Are the water supply hoses and power cords visible after installation?

No. The WASHLET+ system conceals the water and electrical connections for a cleaner, more integrated appearance.

Does this model include automatic flushing?

No. The WASHLET S2 does not include an automatic flush feature; flushing is operated manually.

Toto Nexus WASHLET + S2 Two-Piece Toilet - 1.28 GPF

TORNADO FLUSH® at 1.28 GPF

TOTO builds this Nexus on its TORNADO FLUSH system, which the sheet describes as high-efficiency at 1.28 GPF.

This is a single-flush toilet: one volume, 1.28 GPF (4.8 LPF), with no reduced-flush setting to choose between.

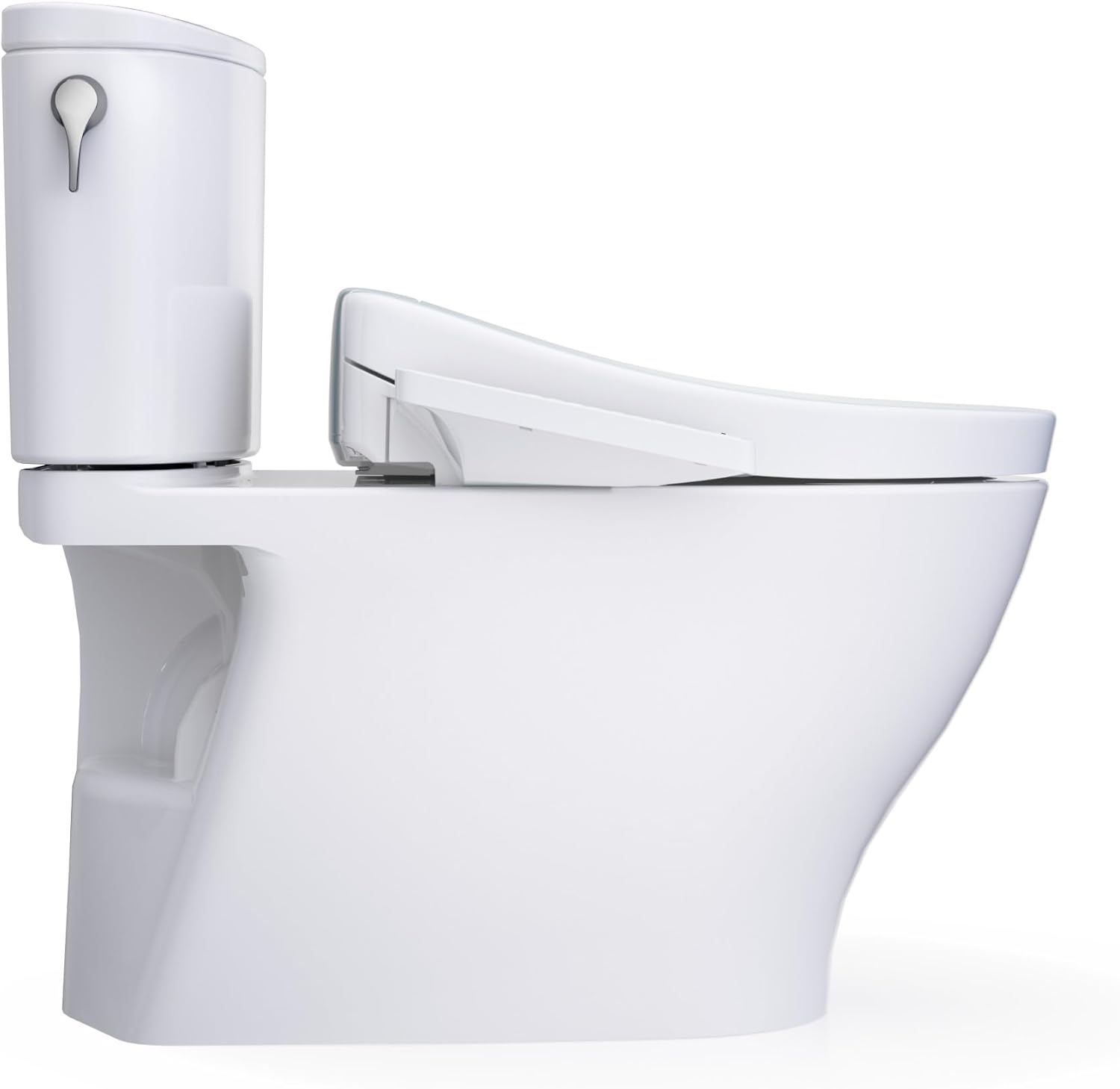

The flush is operated by a chrome plated trip lever on the side of the tank, the trap measures 2-1/8" across, and the bowl sets on a standard 12" rough-in with a 14" option.

High-efficiency TORNADO FLUSH system
Single 1.28 GPF (4.8 LPF) flush
Chrome plated trip lever flush control

CEFIONTECT® with a Completely Skirted WASHLET+ Design

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

TOTO describes the completely skirted design as a sleek and understated look that is easier to clean, with no contoured trapway to wipe around.

This is a two-piece toilet, so the tank and bowl are separate components: the CT442CUFGT40 bowl with the ST442EA tank.

CEFIONTECT glazed elongated bowl
Completely skirted two-piece exterior
Concealed WASHLET+ supply connection

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

The S2 fitted to this two-piece Nexus cleanses front and rear using gentle aerated warm water, with both oscillating and pulsating features.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 95ºF–104ºF.

TOTO does not state the heating type for this seat, so this page claims none, the seat is heated across 82ºF–97ºF, and the warm air dryer offers three variable settings.

Front and rear aerated warm water
Oscillating and pulsating spray modes
Three-setting warm air dryer

EWATER+®, PREMIST® and Convenient Arm Controls

EWATER+ auto-cleans the wand after every use, and PREMIST automatically mists the bowl before each one.

The wand also cleans itself inside and out before and after every use.

Controls are handled by a convenient arm control panel, and CLEAN RESIN keeps the wand and seat easier to maintain. Night light illuminates the inside of the bowl.

EWATER+ on the wand
PREMIST before every use
Convenient arm control panel

What do you get with the Nexus WASHLET+ S2?

This is combination MW4423346CEFG#01: the Nexus two-piece toilet with the CT442CUFGT40 elongated CEFIONTECT bowl, the ST442EA tank, and the SW3346 WASHLET+ S2, in Cotton.

It is Universal Height, flushes once at 1.28 GPF (4.8 LPF), and sets on a 12" rough-in with a 14" option available.

The two-piece set also lists TOTO's 9AU321-A WASHLET Adaptor, the part that makes the concealed WASHLET+ connection at the tank.

TOTO lists no auto-flush kit for this combination, and the trap measures 2-1/8" across.

TOTO Nexus WASHLET+ S2 Two-Piece Toilet Features

Feature	Details
Nexus Toilet Features
TORNADO FLUSH®	High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF).
Water Use	Single flush, 1.28 GPF (4.8 LPF).
CEFIONTECT®	Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Completely Skirted Design	A sleek and understated look that's easier to clean.
Trap Diameter	2-1/8".
WASHLET+ Concealed Connection	Concealed supply connection for seamless installation.
Two-Piece Construction	Elongated front bowl toilet and tank with WASHLET+ S2 set.
Universal Height	Universal Height.
Flush Control	Chrome plated trip lever.
WASHLET Adaptor	9AU321-A WASHLET Adaptor listed with the two-piece set.
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination.
WASHLET S2 Features
Front and Rear Cleansing	Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing	Adjustable spray position, water temperature, and water pressure.
Warm Air Dryer	Three variable temperature settings, 95ºF–140ºF.
Heated Seat	Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer	Automatic air deodorizer.
EWATER+®	Auto-cleans the wand after every use.
PREMIST®	Automatically mists the bowl before each use.
Self-Cleaning Wand	Cleans itself inside and out before and after every use.
CLEAN RESIN®	Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat	Seamless seat design eliminates the gap where dirt collects.

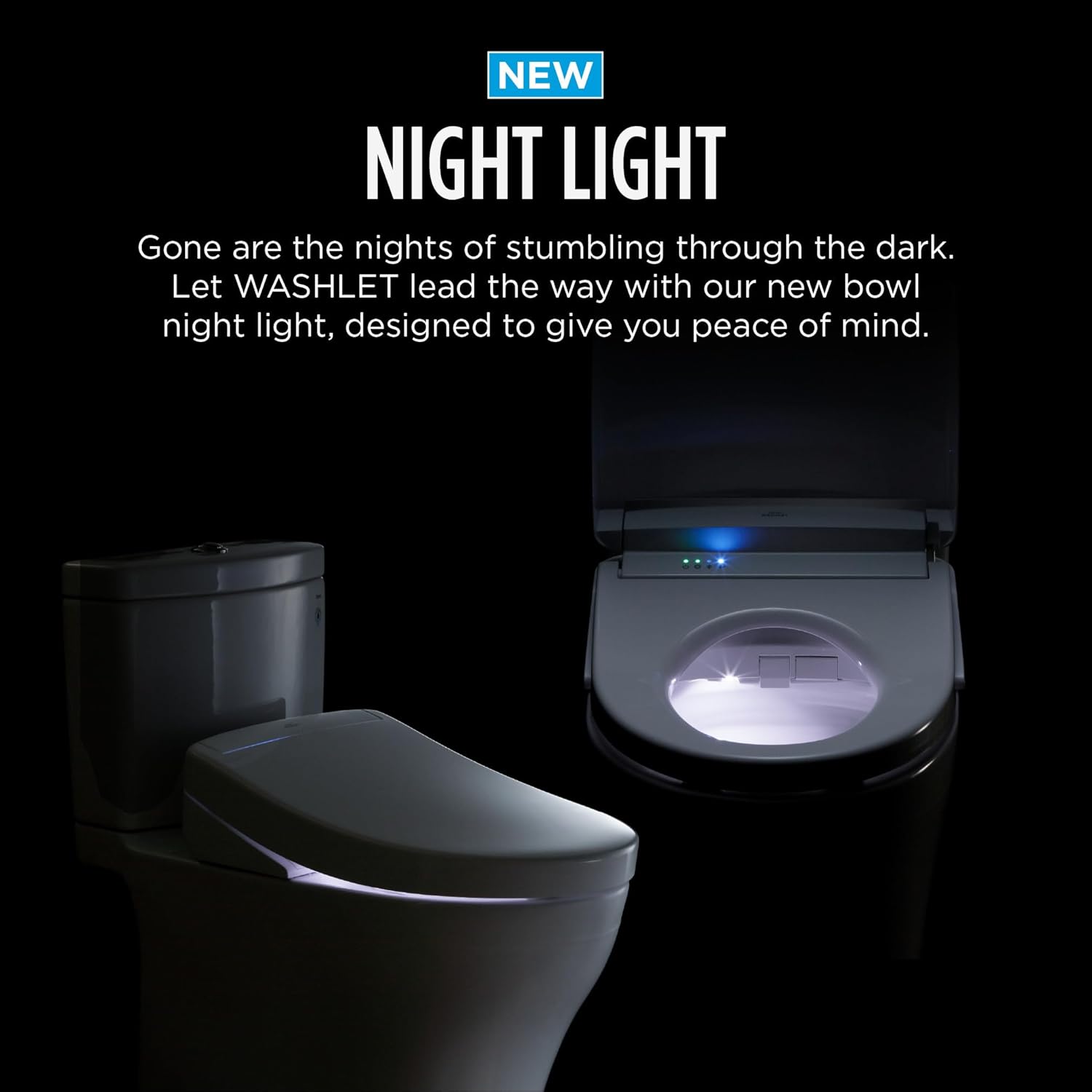

Night Light	Illuminates the inside of the bowl.
Controls	Convenient arm control panel.
Auto Energy Saver	Adjusts the seat temperature when inactive.

TOTO Nexus WASHLET+ S2 Two-Piece Toilet Specifications

Specification	Details
Combination Model	MW4423346CEFG#01
Series	Nexus
Toilet Construction	Two-Piece
Bowl Model	CT442CUFGT40
Tank Model	ST442EA
WASHLET Model	SW3346 (WASHLET+ S2)
WASHLET Adaptor	9AU321-A
Bowl Shape	Elongated, completely skirted
Color	#01 Cotton
Height Classification	Universal Height
Seat Height	Not stated on this sheet
Rough-In	12"
Optional Rough-In	14" option available
Trap Diameter	2-1/8"
Water Use	1.28 GPF (4.8 LPF)
Flush System	TORNADO FLUSH®
Flush Control	Chrome plated trip lever
Auto Flush	Not included — TOTO lists no auto-flush kit for this combination
Electrical	Not stated on this sheet
ADA Compliance	ADA compliant for residential use when installed with trip lever located on the approach side
Warranty	One Year Limited Warranty (combination)
