Dignity Lifts XL1 Bariatric Toilet Lift - 650 lb Capacity

The Dignity Lift XL1 is the highest-capacity toilet lift in the lineup, engineered specifically for users who need dependable physical support when transferring on and off the toilet.

The primary difference between the XL1 and standard models is its expanded 29 7/8" frame, four-actuator lifting system, and 650 lb load limit.

The Dignity Lift XL1 is an essential support solution for maintaining bathroom independence.

  • Lift Type: Electric actuator-driven standing assist lift
  • Weight Limit: 650 lbs
  • Lift Duration: 26 seconds for full range of motion
  • Bowl Compatibility: 16" to 18" standard rim heights
  • Overall Width: 29 7/8" wide overall

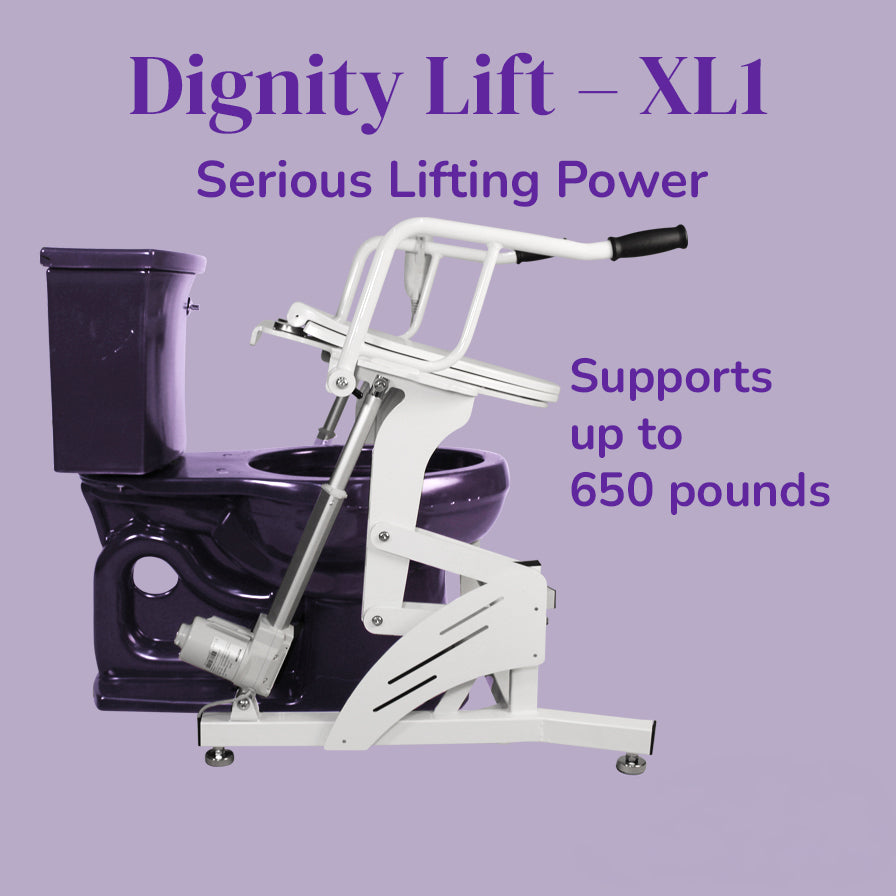

Heavy-Duty 650 lb Rating:

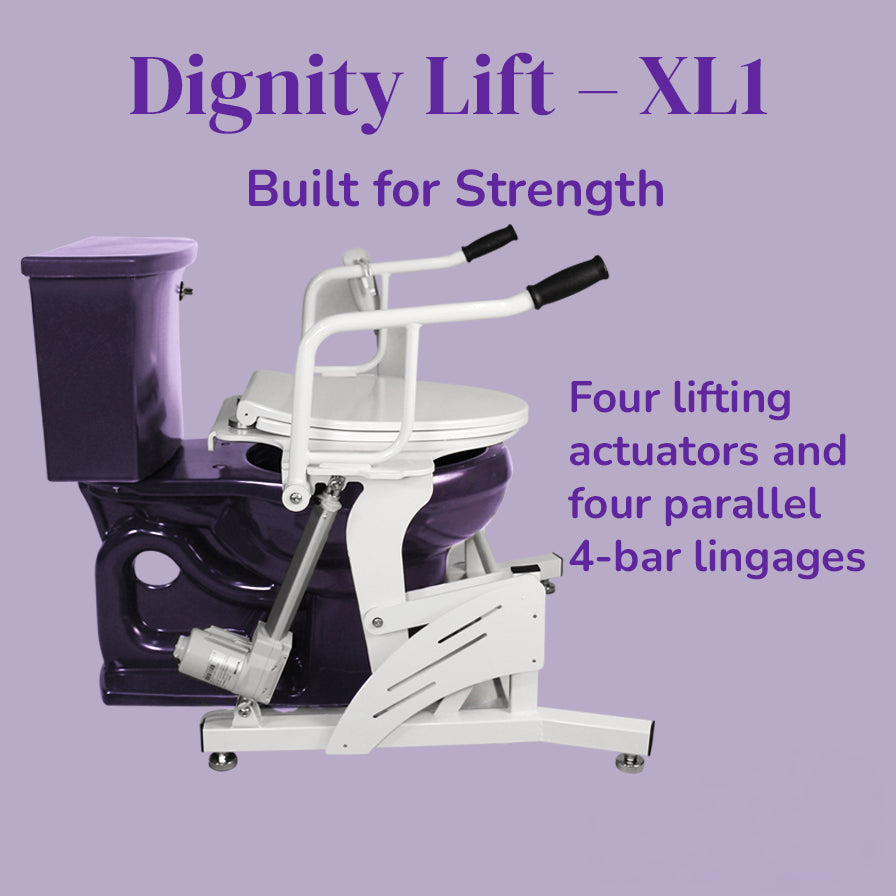

Built with 4 parallel 4-bar linkages to deliver high-capacity lift support

Controlled 26-Second Lift:

Provides a gradual 9" rise to assist users moving from a sitting to standing position

Spacious Ergonomic Design:

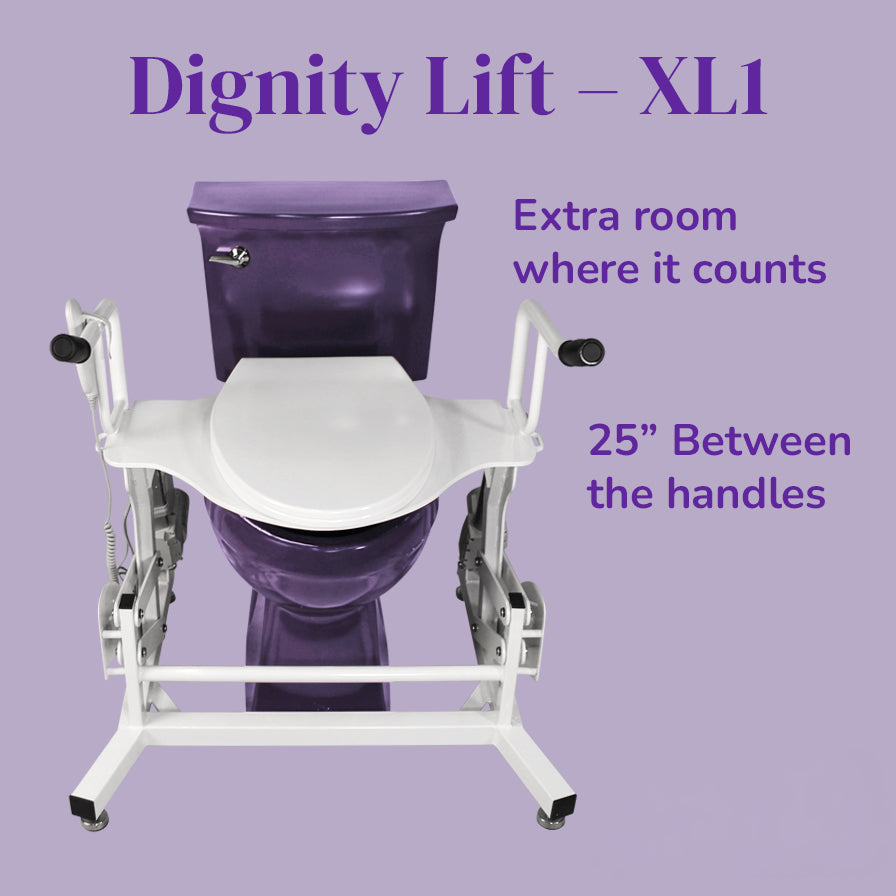

Offers 25" clearance between armrests with quick-release or swing-back removal options

Simple Remote Operation:

Handheld wired remote allows simple push-button lowering and raising

Wide-Stance Stability:

Four wide, adjustable feet secure the frame over standard home toilets

Dignity Lifts XL1 Installation

Dignity Lifts XL1 Compatibility

The Dignity Lifts XL1 is a freestanding bariatric toilet lift. Confirm these three requirements before installation:

  • Requires a minimum toilet nook width of 30 inches (at least 15 inches of space from the center of the bowl to any side wall or cabinet).
  • Toilet Bowl Height: Compatible with standard home toilets measuring 16 inches to 18 inches from floor to ceramic bowl rim.

Installation steps

  1. Clearance Check. Confirm at least 15" of clearance from the center of the toilet to each side wall (30" total width).
  2. Position the Lift. Carefully maneuver the 90 lb XL1 frame over the toilet bowl, adjusting the four leveling feet so it rests evenly on the floor.
  3. Configure. Set or remove armrests to the desired width and test the remote control.

Dignity Lifts XL1 Downloads

Dignity Lifts XL1 Owner's Manual

Dignity Lifts Toilet Fit Quick Guide

Frequently Asked Questions about Dignity Lifts XL1

How wide is the Dignity Lifts XL1 and will it fit between my toilet and wall?

The Dignity Lifts XL1 has an overall width of 29 7/8 inches. To install it safely, your bathroom needs a minimum total nook width of 30 inches, with at least 15 inches of clear space measured from the center of the toilet bowl to the side wall or vanity on each side.

Can you use a bidet seat with the Dignity Lifts XL1?

Yes, the XL1 can be used alongside many electronic bidet seats or non-electric bidet attachments. However, because the lift frame fits directly over the toilet bowl, you must ensure the bidet controls, side panels, or mounting brackets do not collide with the lift’s bottom crossbars or motorized lifting arms.

How high does the Dignity Lifts XL1 raise you up?

The XL1 provides 9 inches of total vertical lift. Starting from a standard resting seat height of 18 inches, the motorized actuators smoothly raise the user to an elevated height of 27 inches over a 26-second lift cycle to assist with standing up.

Dignity Lifts Extra Large Toilet Lift XL1

Smooth, Dependable Support for Daily Mobility

The XL1 replaces strenuous manual standing movements with a steady, motorized rise.

By elevating 9 inches over 26 seconds, it helps users transition to a standing position safely without sudden motion. The sturdy metal frame and four wide leveling feet maintain firm ground contact throughout the entire range of movement.

Why customers love it:

  • Smooth, controlled elevation assist
  • High weight capacity performance
  • Sturdy wide-stance stabilization
  • Simple hand-remote control
Dignity Lifts Extra Large Toilet Lift XL1

Designed for Spatial Versatility and Easy Maintenance

The XL1 is engineered to fit over most standard 16-inch to 18-inch toilet bowls while providing extra width for comfortable seating.

Its removable armrests allow lateral transfers or extra room when needed, while the smooth painted metal platform and accessible components simplify everyday wiping and upkeep.

Made for practical home utility:

  • Fits standard 16"–18" height toilet bowls
  • Removable armrests for flexible access
  • Accessible 25" arm clearance width
  • Wiping-friendly frame finish
  • Independent frame design over standard toilets
Dignity Lifts Extra Large Toilet Lift XL1

Smart Investment for Staying at Home

Choosing an electric toilet lift offers a functional alternative to costly home care arrangements or facility transitions.

It allows users to maintain privacy in their own bathrooms while significantly lowering physical exertion for both the individual and household caregivers.

What makes the XL1 a practical choice:

  • Supports long-term home living
  • Reduces physical lifting strain on caregivers
  • Reliable push-button operation
  • Cost-effective alternative to full-time assistance
Dignity Lifts Extra Large Toilet Lift XL1

Why choose the Dignity Lifts XL1 over standard toilet lifts?

The XL1 includes the essential lifting, comfort, and stability features of standard Dignity Lifts, but expands the weight capacity to 650 lbs and increases the overall frame width.

You still receive smooth motorized lifting, a 26-second rise, dual swing-back armrests, direct electrical power, and a 4-actuator drive system—making the XL1 an excellent choice for users who require heavy-duty bariatric support and maximum seat room.

What you are getting extra for your investment:

  • High-capacity 650 lb weight rating
  • Four-actuator lifting system for maximum stability
  • Wider 29 7/8" overall frame and 25" arm clearance

What you still receive:

  • The core Dignity Lifts standing-assist experience
  • Smooth 9" elevation in 26 seconds
  • Easy push-button remote operation
  • Reliable fall prevention and independent bathroom access

What do you get with the Dignity Lifts XL1?

The Dignity Lifts XL1 Extra Large toilet lift provides reliable standing support to help users sit down and stand up from the toilet independently or with reduced caregiver strain. Designed for higher weight capacities, it combines heavy-duty lifting performance, a stable wide base, and accessible controls to support home independence and daily mobility.

Perfect for anyone seeking a robust, high-capacity lifting fixture that provides smooth, controlled movement to support safer bathroom use and help users remain comfortably in their homes.

Dignity Lifts XL1 Features

Feature Details
Weight Capacity Supports up to 650 lbs, utilizing 4 lifting actuators and four parallel 4-bar linkages for heavy-duty stability.
Controlled Lifting Provides 9" of smooth elevation, rising from a 18" starting height to a 27" standing height in 26 seconds.
Wide-Stance Base Equipped with 4 wide adjustable feet to maintain structural stability during operation.
Removable Armrests Features 25" spacing between handles; arms can pivot backward or be removed for extra room.
Wired Remote Control Easy-to-use tethered remote allows seamless control of lifting and lowering functions.
Seat Configuration Includes a standard plastic seat rated for up to 450 lbs; higher weight usage utilizes the direct metal platform.

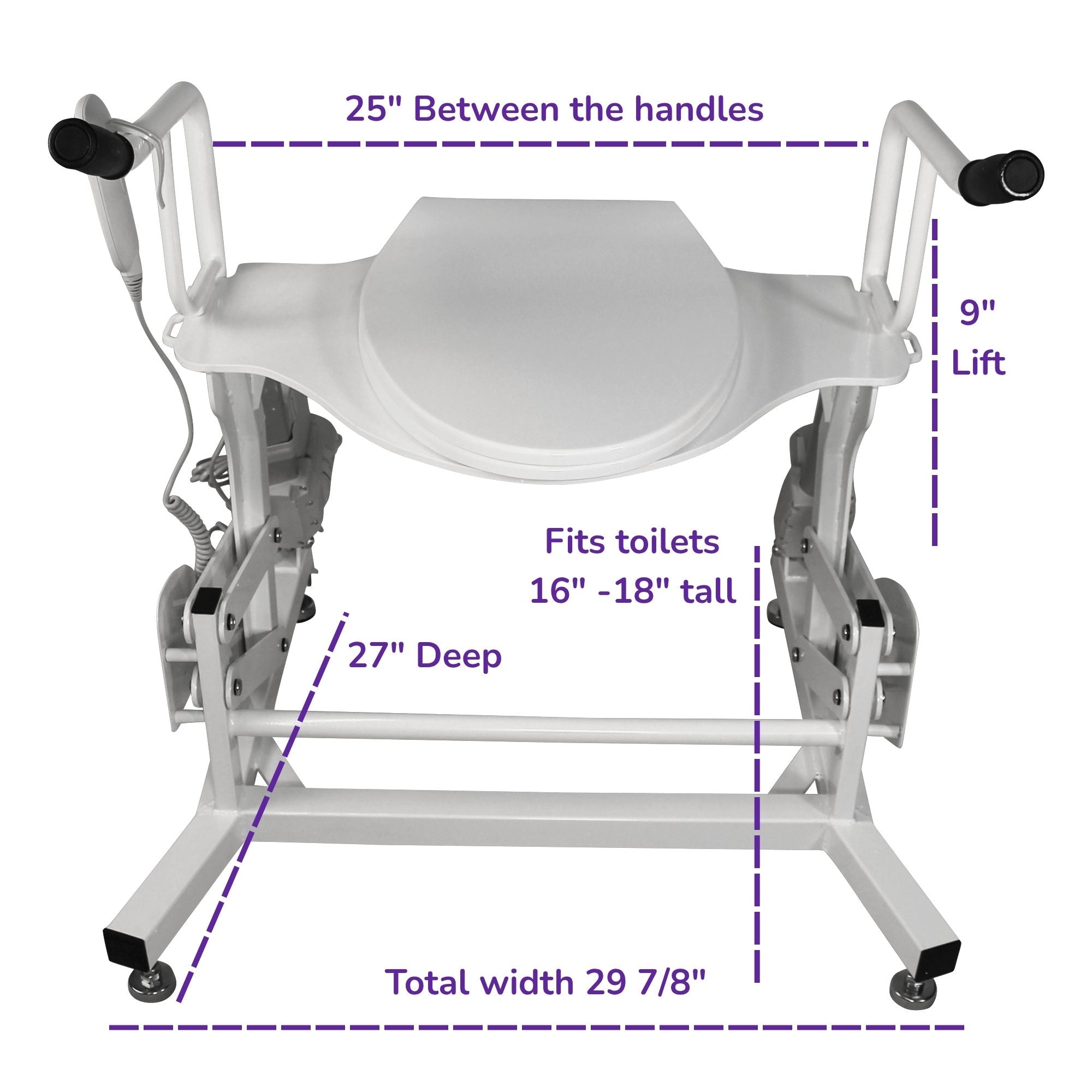

Dignity Lifts XL1 Specifications

Specification Details
Model Dignity Lift XL1
Product Type Heavy-duty bariatric toilet lift
Overall Dimensions 29 7/8" W × 27" D
Distance Between Arms 25" (removable/pivotable arms)
Lift Range 9" total lift (18" resting height to 27" full extension)
Product Weight Approximately 90 lbs
Weight Capacity 650 lbs maximum capacity
Toilet Bowl Compatibility Fits toilet bowl heights from 16" to 18"
Clearance Required Requires 30" total nook width (15" from center of toilet to each side wall)
Assembly/Installation Freestanding placement over existing bowl; removes standard seat
