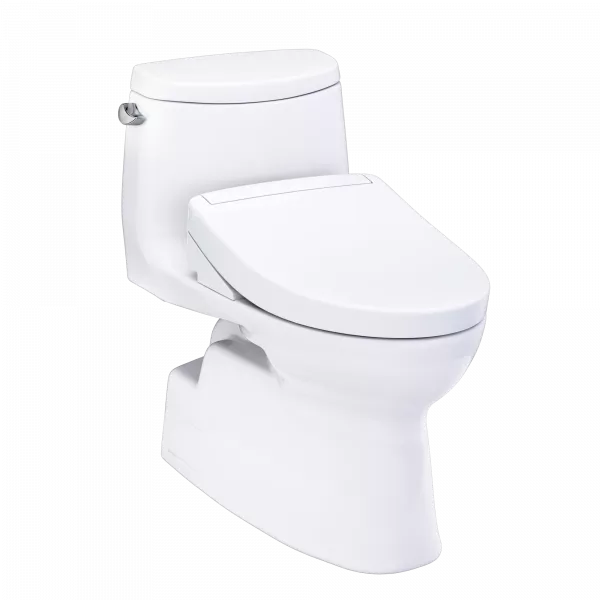

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet - White toilet on a white background

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet

by TOTO
SKU MW6143446CUFG#01
UPC/GTIN: 739268478282
$1,475.00
Fast & Free Shipping
Safe & Secure Checkout
Dedicated Customer Support
Bidet expert
Questions? Talk to an Expert.
(877) 420-3443 Message Us
Bidets USA BBB Business Review

TOTO Carlyle II 1G Washlet+ S5

  • TORNADO FLUSH with CEFIONTECT Glaze: Powerful 360-degree flush with smooth ceramic glaze that keeps the bowl cleaner
  • EWATER+ Self-Cleaning Wand: Electrolyzed water automatically cleans the nozzle before and after every use
  • PREMIST Bowl Spray: Mists the bowl before each use to help waste rinse away more easily
  • Front and Rear Warm Water Spray: Separate nozzles with adjustable water temperature and pressure for a customized wash
  • Heated Seat: Warm seat with temperature control for added comfort
  • Warm Air Dryer: Three-setting air dryer for a hands-free finish
  • Wireless Remote Control: Slim remote with illuminated touchpad for easy access to all wash settings

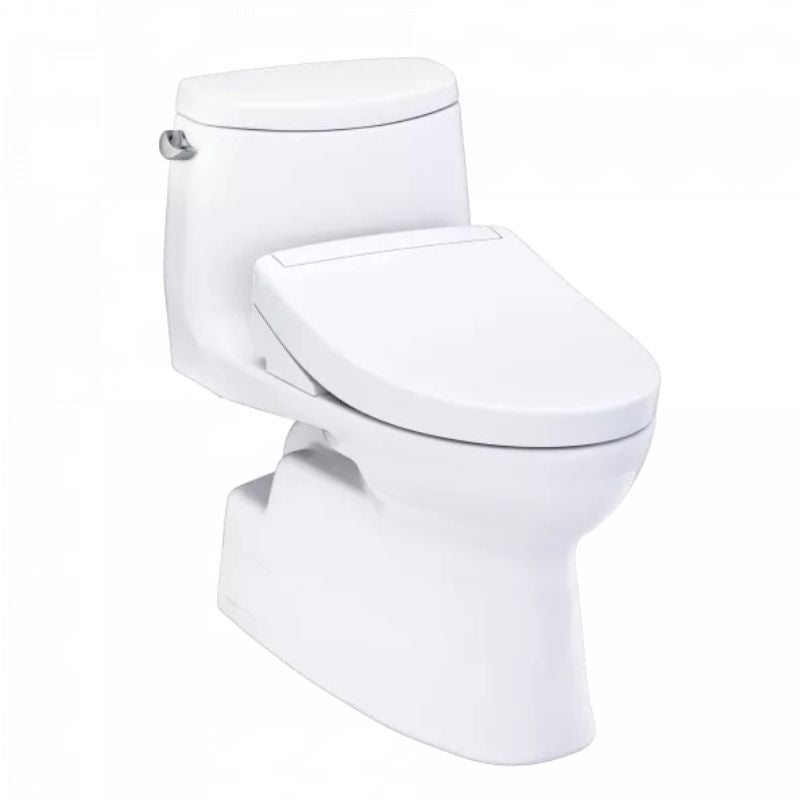

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet - White toilet on a white background

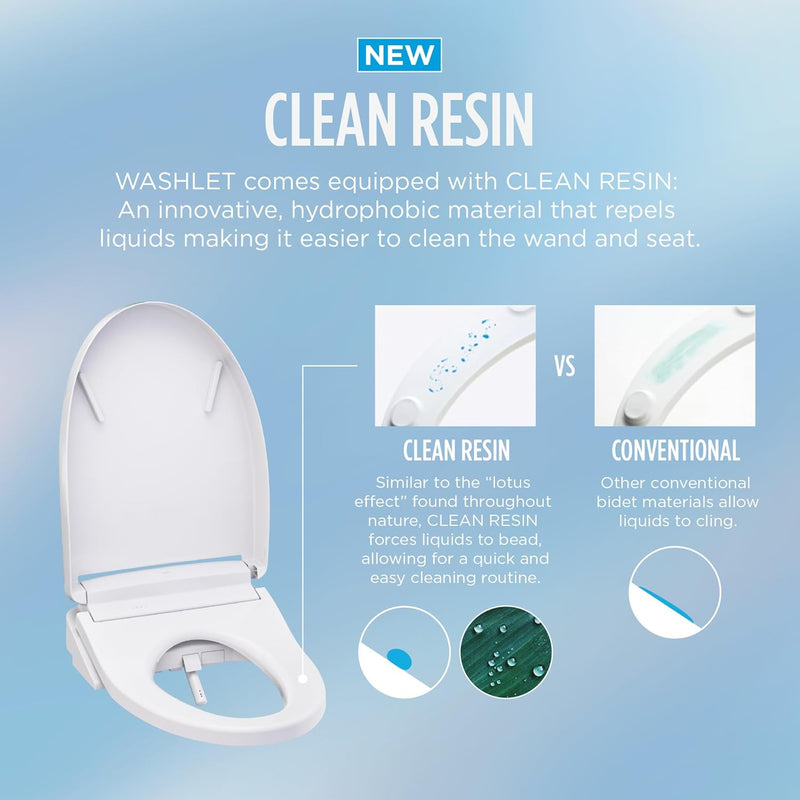

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet - Clean resin

Auto-Cleaning Wand & PREMIST

Keeps the wand and bowl clean automatically before and after use, making hygiene simple and hands-free.

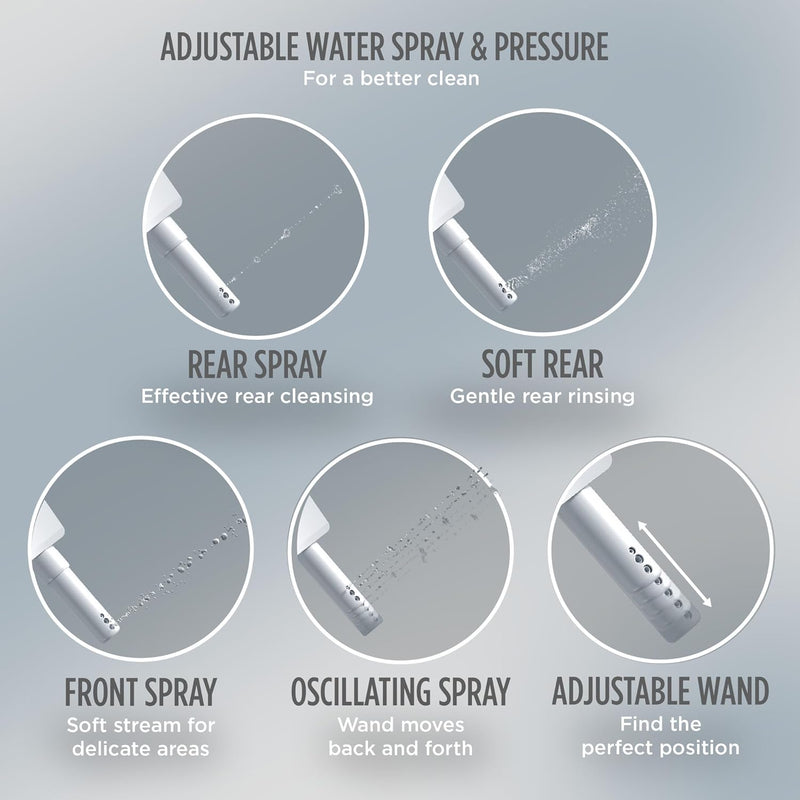

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet - adjustable water spray

Front & Rear Warm Water Spray

Adjustable temperature and pressure give a gentle or thorough clean tailored to your preference.

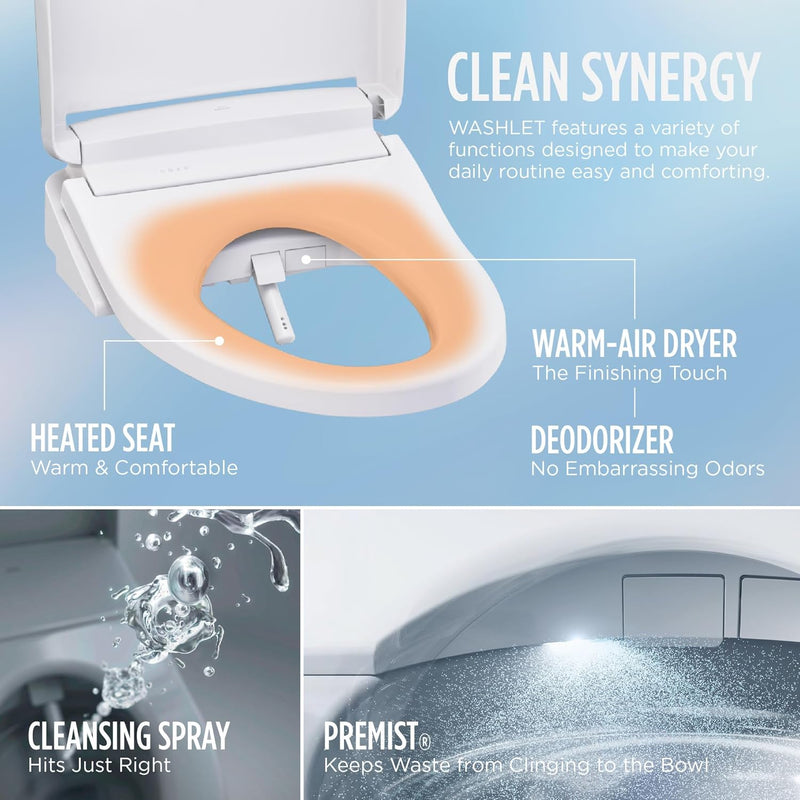

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet - key features

Heated Seat & Warm Air Dryer

Provides consistent warmth and a convenient air dryer to reduce or even replace toilet paper.

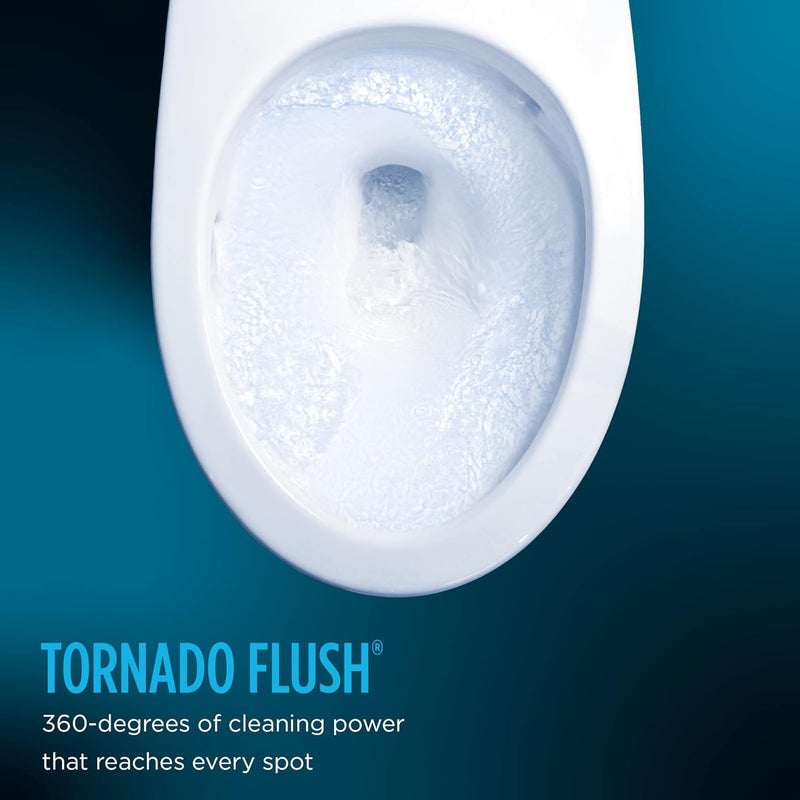

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet - tornado flush

High-Efficiency TORNADO FLUSH

Powerful 360° flush cleans every corner of the bowl while saving water for a more efficient bathroom experience.

TOTO Carlyle II 1G WASHLET+ S5

The TOTO Carlyle II 1G WASHLET+ S5 has all the features you need in a bidet seat, including technology that automatically cleans the wand and mists the bowl before use. Heated seat, warm water spray, and warm air dryer let you adjust the temperature to your preference.

Perfect for those who want a high-tech, comfortable bidet experience.

TOTO Carlyle II + S5 Specifications and Features

  • High-tech bidet seat with toilet combo
  • Includes toilet and WASHLET seat
  • Hidden supply connections for clean installation
  • TORNADO FLUSH system
  • CEFIONTECT glaze keeps surfaces clean
  • Skirted, sleek design
  • Non-clog 2.5" trapway with clear glaze
  • Universal height
  • 12" rough-in (optional 10" & 14")
  • Elongated WASHLET seat with cover
  • EWATER+ auto-cleans wand
  • PREMIST mists bowl before use
  • Slim wireless remote with illuminated touchpad
  • Front & rear warm water spray, adjustable temperature and pressure
  • Heated seat with temperature control
  • Automatic air deodorizer
  • Warm air dryer with 3 settings
  • Quick release for easy cleaning
  • Chrome trip lever included

TOTO Carlyle II 1G WASHLET+ S5 One-Piece Toilet Compatibility

The TOTO Carlyle II 1G WASHLET+ S5 is a one-piece elongated smart toilet with integrated bidet seat. Confirm these four things before ordering:

  • Rough-in measurement: 12-inch standard. 10" and 14" supported with TSU01W adapter (sold separately).
  • Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
  • Water supply: Standard ½-inch connection at the base of the toilet.
  • Electrical outlet: GFCI 120V within 3 feet (powers integrated WASHLET+ S5 bidet seat).
Toto toilet compatibility. Will it fit your space/

Installation steps

  1. Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
  2. Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
  3. Set the wax ring. Place a new wax ring on the flange, centered over the drain.
  4. Seat the new toilet. Lower onto the flange, press down firmly, and hand-tighten the bolts evenly.
  5. Connect and test. Reconnect the supply line, restore water, and plug the WASHLET+ into the GFCI outlet.

TOTO Carlyle II 1G WASHLET+ S5 Downloads

TOTO Carlyle II 1G WASHLET+ S5 Installation Manual

TOTO Carlyle II 1G WASHLET+ S5 Spare Parts Manual

TOTO Carlyle II 1G WASHLET+ S5 Spec Sheet

Frequently Asked Questions

  • The TOTO Carlyle II S5 is special because it combines a toilet and a high‑tech bidet seat into one, giving you automatic cleaning, warm water wash, heated seat, warm air drying, and powerful flushing all in one system.

  • Yes, the TOTO Carlyle II S5 has a heated seat with adjustable temperature, so it stays warm and comfortable every time you use it.

  • Yes, the Carlyle II S5 is comfortable for everyday use with its warm water wash, heated seat, warm air dryer, and adjustable settings that let you tailor your experience.
