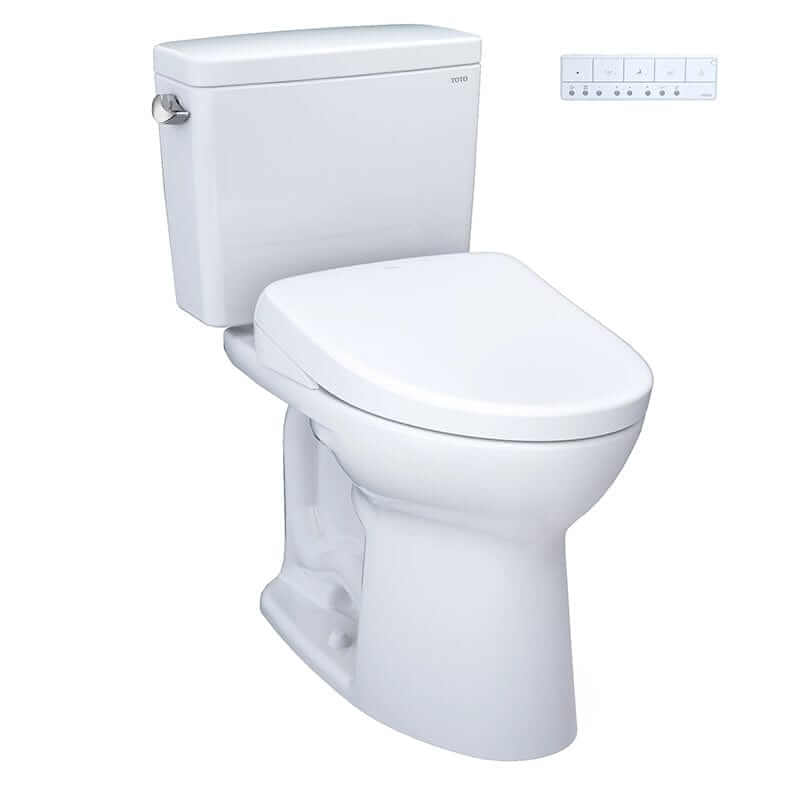

TOTO Drake Washlet+ S7 Two-Piece - Universal Height - White toilet with a closed lid on a white background with control panel

TOTO Drake Washlet+ S7 Two-Piece - Universal Height

TOTO
SKU: MW7764726CEFGA#01

FREE Shipping + No Sales Tax

$2,523.00
$1,767.00
Style
Authorized TOTO National Dealer
Fast & Free Shipping On All Orders
Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.
Dedicated Customer Support Hundreds of 5-Star Reviews
Questions? Talk to a Real Person.
(877) 420-3443 Message Us

Buying more than one? Get volume pricing for contractors, builders and bulk orders.

TOTO Drake WASHLET+ S7 — MW7764726CEFGA#01

The TOTO Drake WASHLET+ S7 Two-Piece Toilet - Universal Height is a two-piece Drake at Universal Height flushing at 1.28 GPF, carrying the WASHLET+ S7 — the tier where EWATER+ starts cleaning the bowl as well as the wand.

The auto-flush configuration adds TOTO's THU857 kit so the toilet flushes on its own, and the block-style remote handles everything else from across the room. The standard configuration is the same toilet and the same seat without that kit.

  • Toilet Type: Two-piece WASHLET+ toilet
  • Height: Universal Height
  • Bowl Shape: Elongated
  • Flush: High-efficiency TORNADO FLUSH® — single 1.28 GPF (4.8 LPF)
  • Rough-In: 12"
  • Included WASHLET: WASHLET+ S7 (SW4726AT40)
  • Controls: Multifunction pearl white block-style remote, memory for up to 4 users
  • Auto Flush: Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model

High-efficiency TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single 1.28 GPF flush, which TOTO classes as high-efficiency.

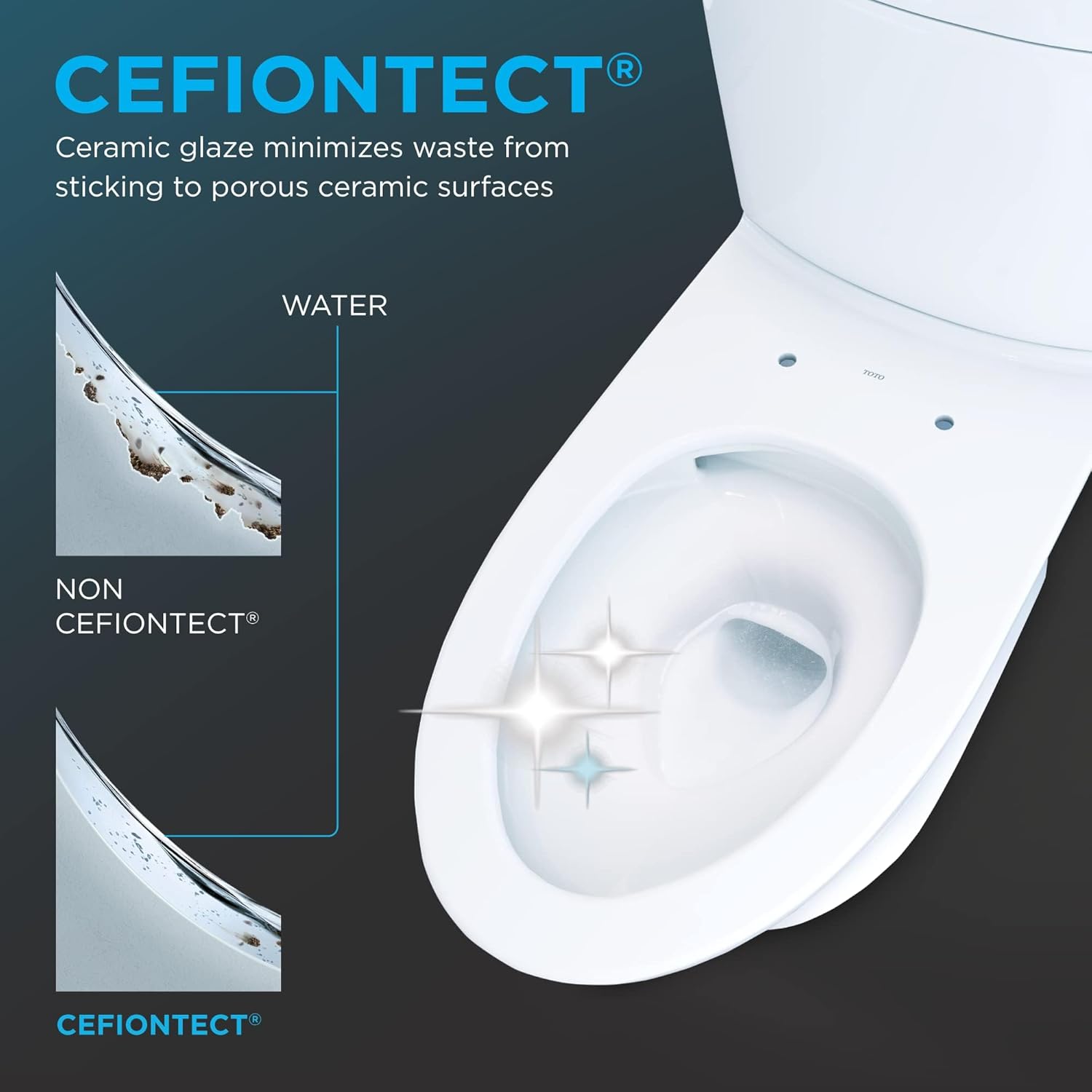

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

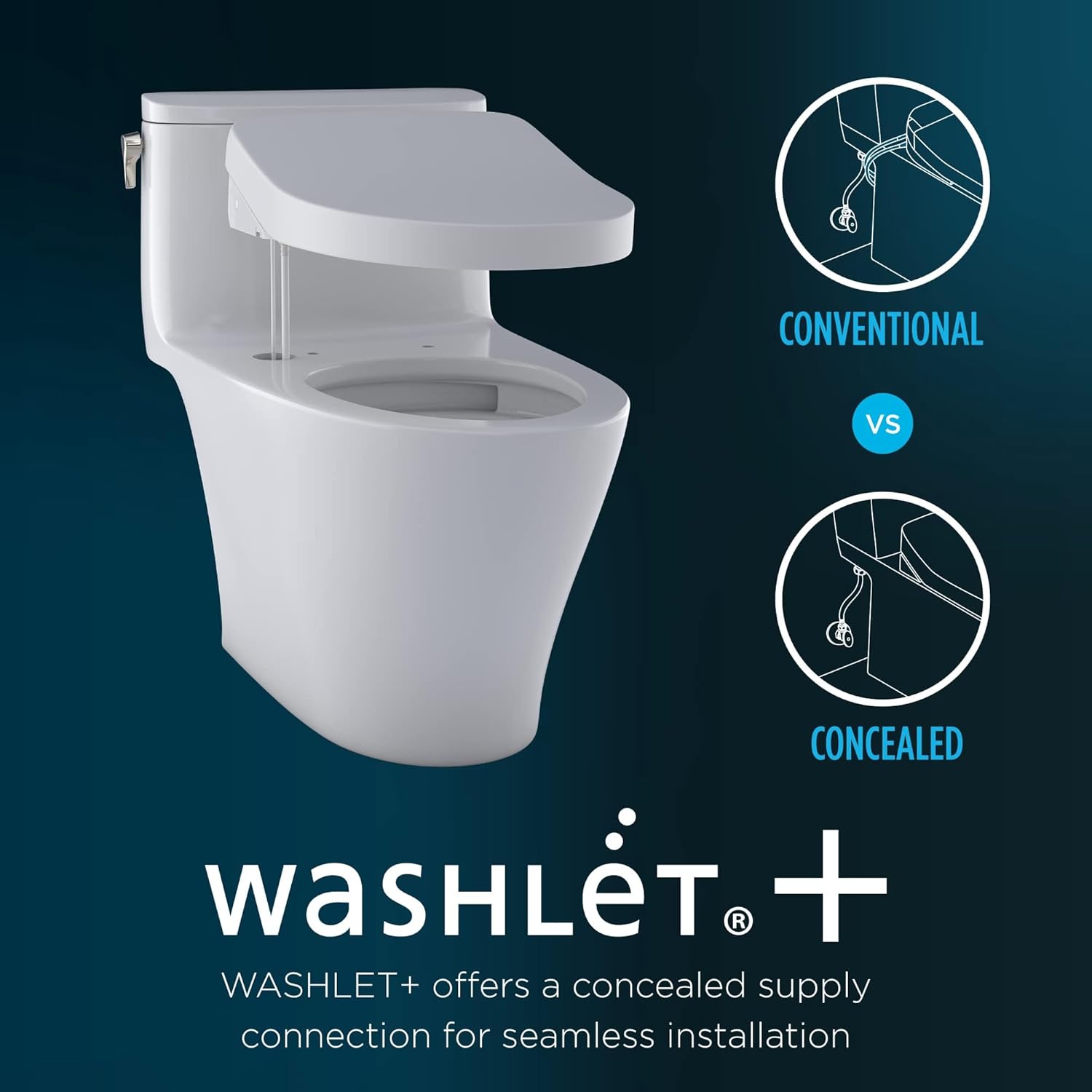

Universal Height with a Concealed Connection

TOTO lists this Drake at Universal Height, and the WASHLET+ connection conceals the seat's supply line at the back of the bowl.

Adjustable Warm-Water Cleansing

The S7 cleanses front and rear with aerated warm water, oscillating and pulsating, and its water range starts lower than the S2 and S5 at 86ºF.

Heated Seat and Five-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers five variable temperature settings.

EWATER+ on the Wand and the Bowl

EWATER+ cleans the wand and the bowl after every use on the S7, where the S2 and S5 clean the wand only — that is the real step up between the tiers.

TOTO Drake S7 MW7764726CEFGA Installation

TOTO Drake Washlet+ S7 Two-Piece - Universal Height dimensions

TOTO Drake Washlet+ S7 Two-Piece - Universal Height Compatibility

The TOTO Drake WASHLET+ S7 is a two-piece smart toilet with an integrated bidet seat at universal height. Confirm these four things before ordering:

  • Rough-in measurement: 12-inch standard connection to the floor drain. (Optional 10 inch adapter)
  • Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
  • Water supply: Standard ½-inch connection at the base of the toilet bowl.
  • Electrical outlet: GFCI 120V within 3 feet of the tank (powers the integrated WASHLET+ S7 bidet seat).

Installation steps

  1. Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
  2. Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
  3. Set the wax ring. Place a new wax ring on the flange, centered over the drain.
  4. Seat the bowl. Lower the bowl onto the flange, press down firmly, and hand-tighten the bolts evenly.
  5. Attach the tank and test. Bolt the tank to the bowl, reconnect the supply line, and plug the bidet seat into the GFCI outlet.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO Drake Washlet+ S7 Downloads

TOTO Drake Washlet+ S7 Installation Manual

TOTO Drake Washlet+ S7 Spare Parts Manual

TOTO Drake Washlet+ S7 Spec Sheet

Frequently Asked Questions about TOTO Drake S7 MW7764726CEFGA

How tall is the Toto Drake 2 for everyday use?

The Toto Drake 2 for everyday use sits at a universal height, making it comfortable for most adults when sitting or standing.

What does universal height mean for TOTO toilets?

Universal height for TOTO toilets means the seat is slightly taller than standard toilets, designed to make sitting and standing easier for most adults.

Is the Toto Drake considered a comfort height toilet?

The Toto Drake is considered a comfort height toilet because its universal height provides extra ease and comfort compared to standard toilets.

How can I check if my Toto WASHLET fits the Drake?

You can check if your Toto WASHLET fits the Drake by confirming that your toilet has an elongated bowl and universal height, which are compatible with most TOTO WASHLET models.

TOTO Drake Washlet+ S7 Two-Piece - Universal Height

TORNADO FLUSH® at 1.28 GPF

TOTO builds this Drake on its TORNADO FLUSH system, which the sheet describes as high-efficiency at 1.28 GPF.

This is a single-flush toilet: one volume, 1.28 GPF (4.8 LPF), with no reduced-flush setting to choose between.

The flush is operated by a chrome plated trip lever on the side of the tank, and the trap measures 2-1/8" across.

  • High-efficiency TORNADO FLUSH system
  • Single 1.28 GPF (4.8 LPF) flush
  • Chrome plated trip lever flush control
TOTO Drake Washlet+ S7 Two-Piece - Universal Height

CEFIONTECT® Glaze on a Two-Piece Drake

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

This is a two-piece toilet, so the tank and bowl are separate components: the C776CEFGT40 elongated bowl with the ST776EA tank.

TOTO lists this model at Universal Height. The WASHLET+ supply connection is concealed for a seamless installation.

  • CEFIONTECT glazed elongated bowl
  • Two-piece tank and bowl construction
  • Concealed WASHLET+ supply connection
TOTO Drake Washlet+ S7 Two-Piece - Universal Height

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

On this Universal Height Drake the S7 cleanses front and rear with gentle aerated warm water, with oscillating and pulsating features.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 86ºF–104ºF.

An instantaneous water heater supplies continuous warm water, the seat is heated across 82ºF–97ºF, and the warm air dryer offers five variable settings.

  • Front and rear aerated warm water
  • Oscillating and pulsating spray modes
  • Five-setting warm air dryer
TOTO Drake Washlet+ S7 Two-Piece - Universal Height

EWATER+® on the Wand and Bowl with Remote Convenience

EWATER+ auto-cleans the wand and the bowl after every use, and PREMIST mists the bowl before every use.

The wand also cleans itself inside and out before and after every use.

Controls are handled by a multifunction pearl white block-style remote control, and CLEAN RESIN keeps the wand and seat easier to maintain. Night light.

  • EWATER+ on the wand and bowl
  • PREMIST before every use
  • Memory settings for up to four users

What do you get with the Drake WASHLET+ S7?

This is combination MW7764726CEFGA#01: the two-piece Drake with the C776CEFGT40 elongated CEFIONTECT bowl, the ST776EA tank, and the SW4726AT40 WASHLET+ S7, in Cotton.

It is listed at Universal Height and flushes once at 1.28 GPF (4.8 LPF).

The bowl sets on a 12" rough-in and the trap measures 2-1/8" across.

The auto-flush model adds TOTO's THU857 Auto Flush Kit; the standard model does not include it, and TOTO lists it as an available upgrade.


TOTO Drake WASHLET+ S7 Two-Piece Toilet - Universal Height Features

Feature Details
Drake Toilet Features
TORNADO FLUSH® High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF).
Water Use Single flush, 1.28 GPF (4.8 LPF).
CEFIONTECT® Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Trap Diameter 2-1/8".
WASHLET+ Concealed Connection Concealed supply connection for seamless installation.
Two-Piece Construction Elongated front bowl toilet and tank with WASHLET+ S7 set.
Height Universal Height.
Flush Control Chrome plated trip lever.
Electrical GFCI outlet of 120V, 15A; the WASHLET power cord is 4' long with 3 prongs.
Auto Flush Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model.
WASHLET S7 Features
Front and Rear Cleansing Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing Adjustable spray position, water temperature, and water pressure.
Instantaneous Water Heating Instantaneous water heater for continuous warm water and energy savings.
Warm Air Dryer Five variable temperature settings, 95ºF–140ºF.
Heated Seat Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer Automatic air deodorizer.
EWATER+® Auto-cleans the wand and bowl after every use.
PREMIST® Automatically mists the bowl before each use.
Self-Cleaning Wand Cleans itself inside and out before and after every use.
CLEAN RESIN® Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat Seamless seat design eliminates the gap where dirt collects.
Night Light Night light.
Controls Multifunction pearl white block-style remote control.
User Memory Personalized memory settings for up to 4 users.
Auto Energy Saver Adjusts the seat temperature when inactive.


TOTO Drake WASHLET+ S7 Two-Piece Toilet - Universal Height Specifications

Specification Details
Combination Model MW7764726CEFGA#01
Series Drake
Toilet Construction Two-Piece
Bowl Model C776CEFGT40
Tank Model ST776EA
WASHLET Model SW4726AT40 (WASHLET+ S7)
Bowl Shape Elongated
Color #01 Cotton
Height Classification Universal Height
Seat Height Not stated on this sheet
Rough-In 12"
Trap Diameter 2-1/8"
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH®
Flush Control Chrome plated trip lever
Auto Flush Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model
Electrical GFCI outlet of 120V, 15A; the WASHLET power cord is 4' long with 3 prongs
ADA Compliance ADA compliant for residential use with autoflush feature model, or with trip lever located on the approach side
Warranty One Year Limited Warranty (combination)
