TOTO Drake Washlet+ S7 Two-Piece

TOTO

SKU: MW7764726CEGA#01

$2,465.00

$1,726.00

FREE Shipping + No Sales Tax

Extra 10% OFF Use FALL26 at checkout

Style

With Auto-Flush

No Auto-Flush

Authorized TOTO National Dealer

Fast & Free Shipping On All Orders

Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.

Dedicated Customer Support Hundreds of 5-Star Reviews

Questions? Talk to a Real Person.

(877) 420-3443 Message Us

TOTO Drake WASHLET+ S7 — MW7764726CEGA#01

The TOTO Drake WASHLET+ S7 Two-Piece Toilet is a two-piece Drake at TOTO's regular height flushing at 1.28 GPF, carrying the WASHLET+ S7 — the tier where EWATER+ starts cleaning the bowl as well as the wand.

The auto-flush configuration adds TOTO's THU857 kit so the toilet flushes on its own, and the block-style remote handles everything else from across the room. The standard configuration is the same toilet and the same seat without that kit.

Toilet Type: Two-piece WASHLET+ toilet
Height: Regular Height Toilet — seat height 16" [407mm]
Bowl Shape: Elongated
Flush: High-efficiency TORNADO FLUSH® — single 1.28 GPF (4.8 LPF)
Rough-In: 12"
Included WASHLET: WASHLET+ S7 (SW4726AT40)
Controls: Multifunction pearl white block-style remote, memory for up to 4 users
Auto Flush: Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model

High-efficiency TORNADO FLUSH®

TOTO's TORNADO FLUSH rinses the bowl on a single 1.28 GPF flush, which TOTO classes as high-efficiency.

CEFIONTECT® Ceramic Glaze

CEFIONTECT minimizes waste sticking to porous ceramic surfaces, which supports easier bowl cleaning between flushes.

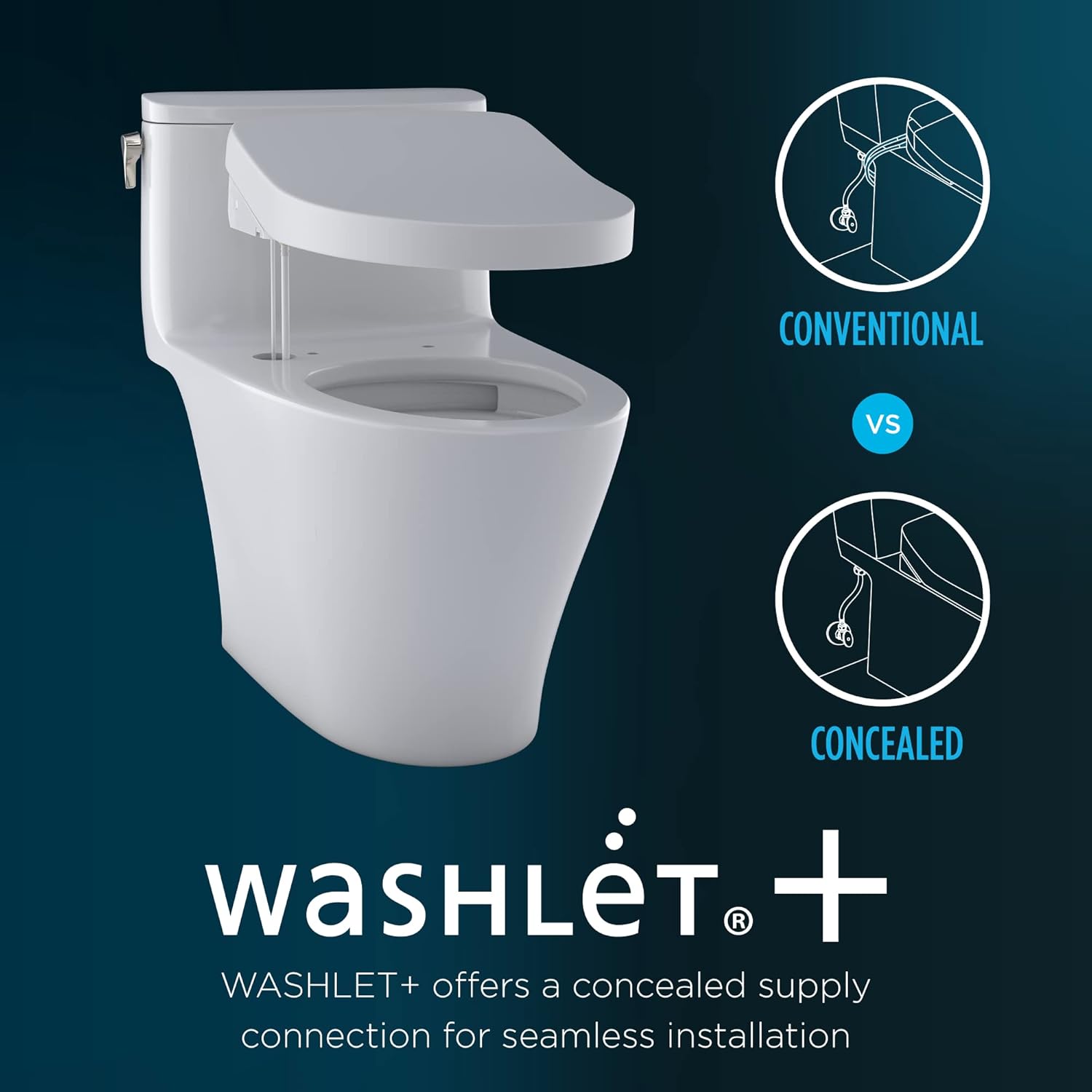

Regular Height with a Concealed Connection

TOTO lists this Drake as a regular height toilet, and the WASHLET+ connection conceals the seat's supply line at the back of the bowl.

Adjustable Warm-Water Cleansing

The S7 cleanses front and rear with aerated warm water, oscillating and pulsating, and its water range starts lower than the S2 and S5 at 86ºF.

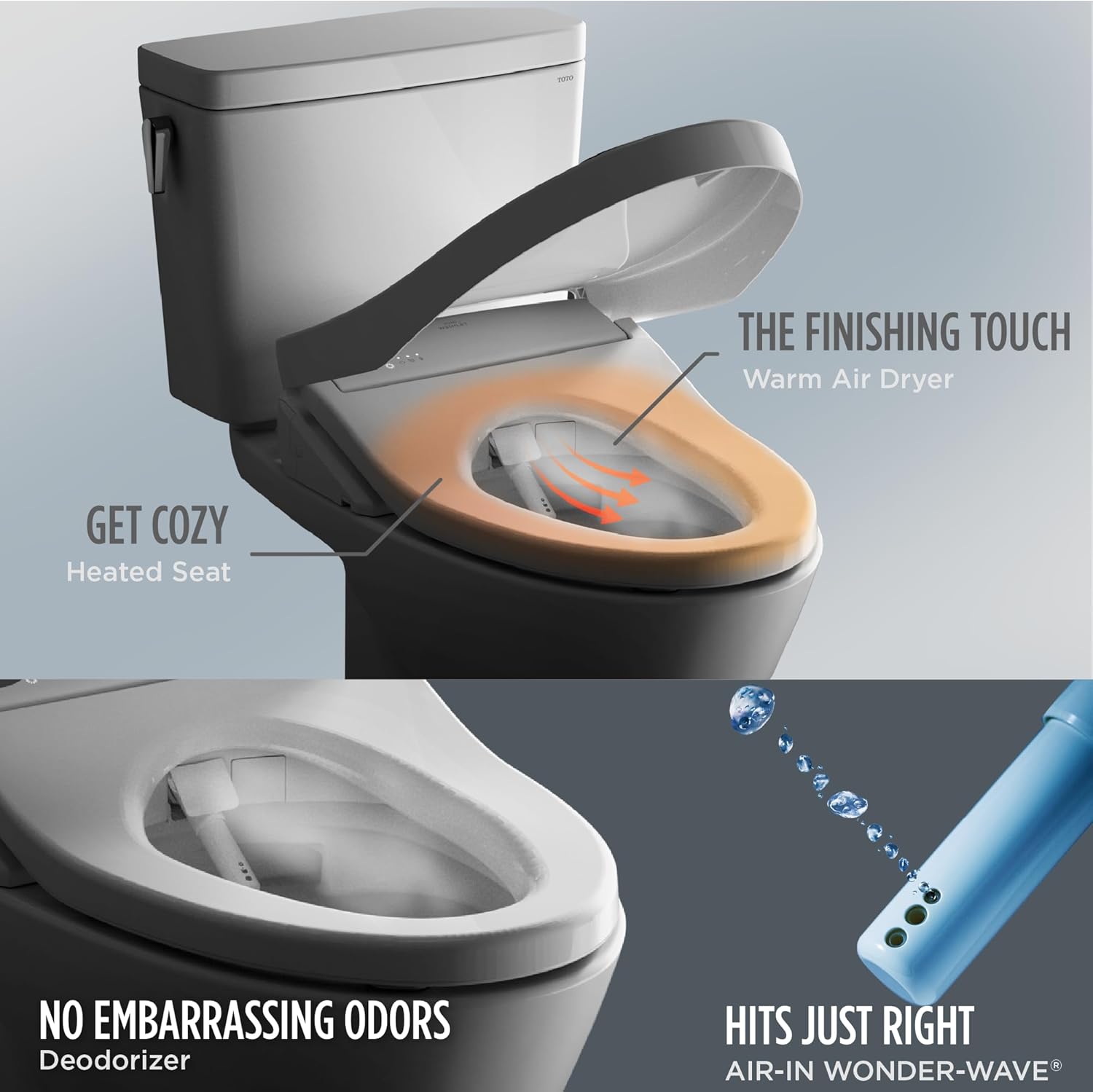

Heated Seat and Five-Setting Dryer

The seat is heated with its own temperature control, and the warm-air dryer offers five variable temperature settings.

EWATER+ on the Wand and the Bowl

EWATER+ cleans the wand and the bowl after every use on the S7, where the S2 and S5 clean the wand only — that is the real step up between the tiers.

TOTO Drake S7 MW7764726CEGA Installation

TOTO Drake Washlet+ S7 Two-Piece dimensions

TOTO Drake Washlet+ S7 Two-Piece Compatibility

The TOTO Drake WASHLET+ S7 is a two-piece elongated smart toilet with an integrated bidet seat. Confirm these four things before ordering:

Rough-in measurement: 12-inch standard installation.
Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
Water supply: Standard ½-inch connection at the base of the toilet.
Electrical outlet: GFCI 120V within 3 feet (powers the integrated WASHLET+ S7 bidet seat).

Installation steps

Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
Set the wax ring. Place a new wax ring on the flange, centered over the drain.
Seat the bowl. Lower onto the flange, press down firmly, and hand-tighten the bolts evenly.
Attach the tank and test. Bolt the tank to the bowl, reconnect the supply line, and plug the S7 into the GFCI outlet.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO Drake Washlet + S7 Two-Piece Downloads

TOTO Drake Washlet + S7 Two-Piece Installation Manual

TOTO Drake Washlet + S7 Two-Piece Spare Parts Manual

TOTO Drake Washlet + S7 Two-Piece Spec Sheet

Frequently Asked Questions about TOTO Drake S7 MW7764726CEGA

What is the difference between Toto Drake and Drake 2?

The difference between Toto Drake and Drake 2 is that the Drake 2 has a more updated design and improved flushing system, while the original Drake is a more basic and classic model.

What is the difference between TOTO WASHLET and washlet+?

The difference between TOTO WASHLET and Washlet+ is that Washlet+ is designed to pair with specific TOTO toilets to hide cords and hoses for a cleaner look.

What's the difference between the TOTO S7 and S7A?

The difference between the TOTO S7 and S7A is that the S7A includes an automatic lid and added convenience features, while the S7 focuses on the core cleaning and comfort functions.

Why is Toto Drake so good?

The Toto Drake is so good because it combines a powerful flush, reliable performance, and an easy-to-clean design for everyday use.

Is the Toto Drake loud?

The Toto Drake is not loud because it uses a smooth and efficient flush system that keeps noise levels lower than many standard toilets.

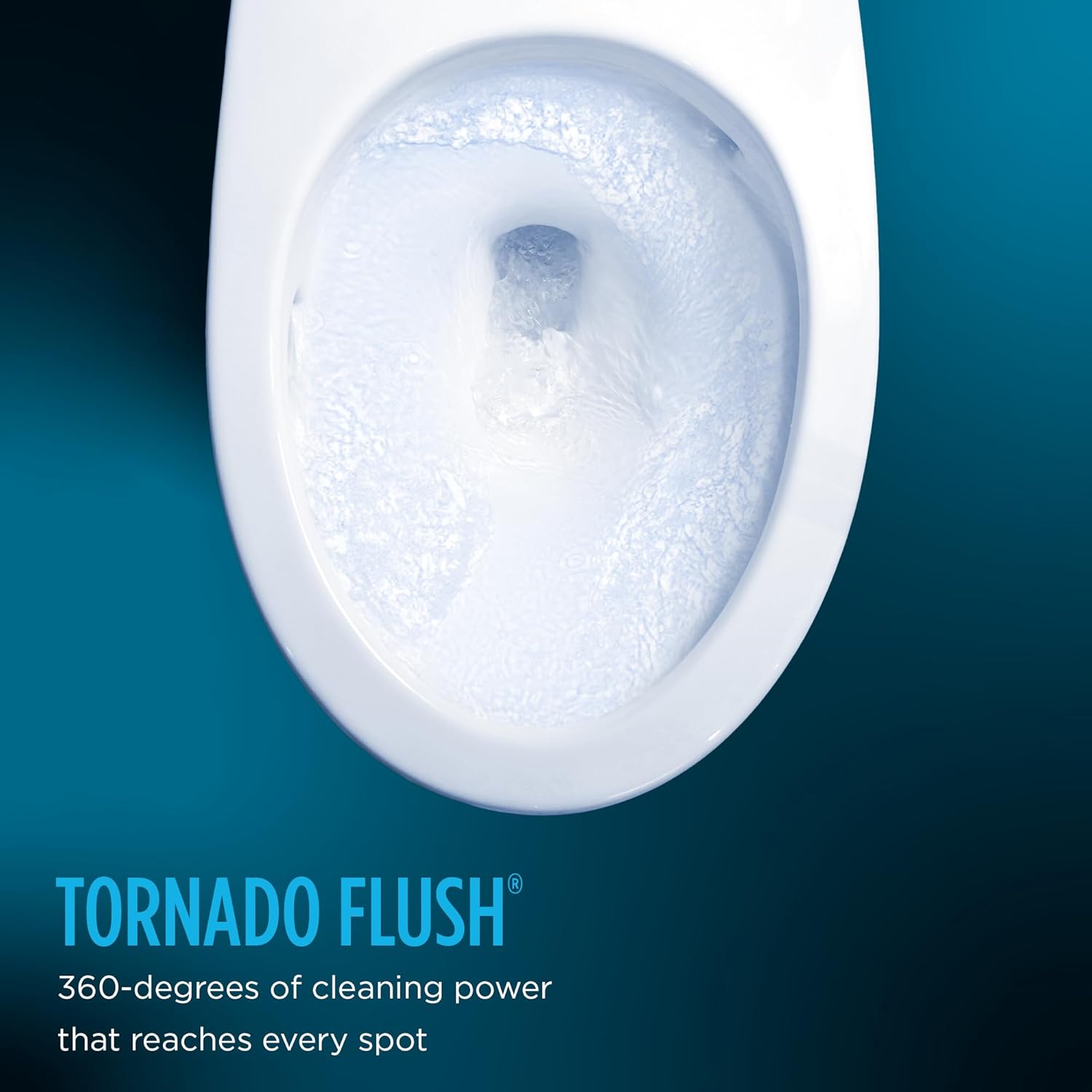

TORNADO FLUSH® at 1.28 GPF

TOTO builds this Drake on its TORNADO FLUSH system, which the sheet describes as high-efficiency at 1.28 GPF.

This is a single-flush toilet: one volume, 1.28 GPF (4.8 LPF), with no reduced-flush setting to choose between.

The flush is operated by a chrome plated trip lever on the side of the tank, and the trap measures 2-1/8" across.

High-efficiency TORNADO FLUSH system
Single 1.28 GPF (4.8 LPF) flush
Chrome plated trip lever flush control

CEFIONTECT® Glaze on a Two-Piece Drake

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, supporting easier bowl cleaning between flushes.

This is a two-piece toilet, so the tank and bowl are separate components: the C776CEGT40 elongated bowl with the ST776EA tank.

TOTO lists this model as a regular height toilet, with a seat height of 16" [407mm]. The WASHLET+ supply connection is concealed for a seamless installation.

CEFIONTECT glazed elongated bowl
Two-piece tank and bowl construction
Concealed WASHLET+ supply connection

Adjustable Warm-Water Cleansing with Heated Seat and Dryer

The S7 fitted to this regular height Drake cleanses front and rear using gentle aerated warm water, with both oscillating and pulsating features.

Spray position, water temperature and water pressure each adjust on their own, and the water range runs 86ºF–104ºF.

An instantaneous water heater supplies continuous warm water, the seat is heated across 82ºF–97ºF, and the warm air dryer offers five variable settings.

Front and rear aerated warm water
Oscillating and pulsating spray modes
Five-setting warm air dryer

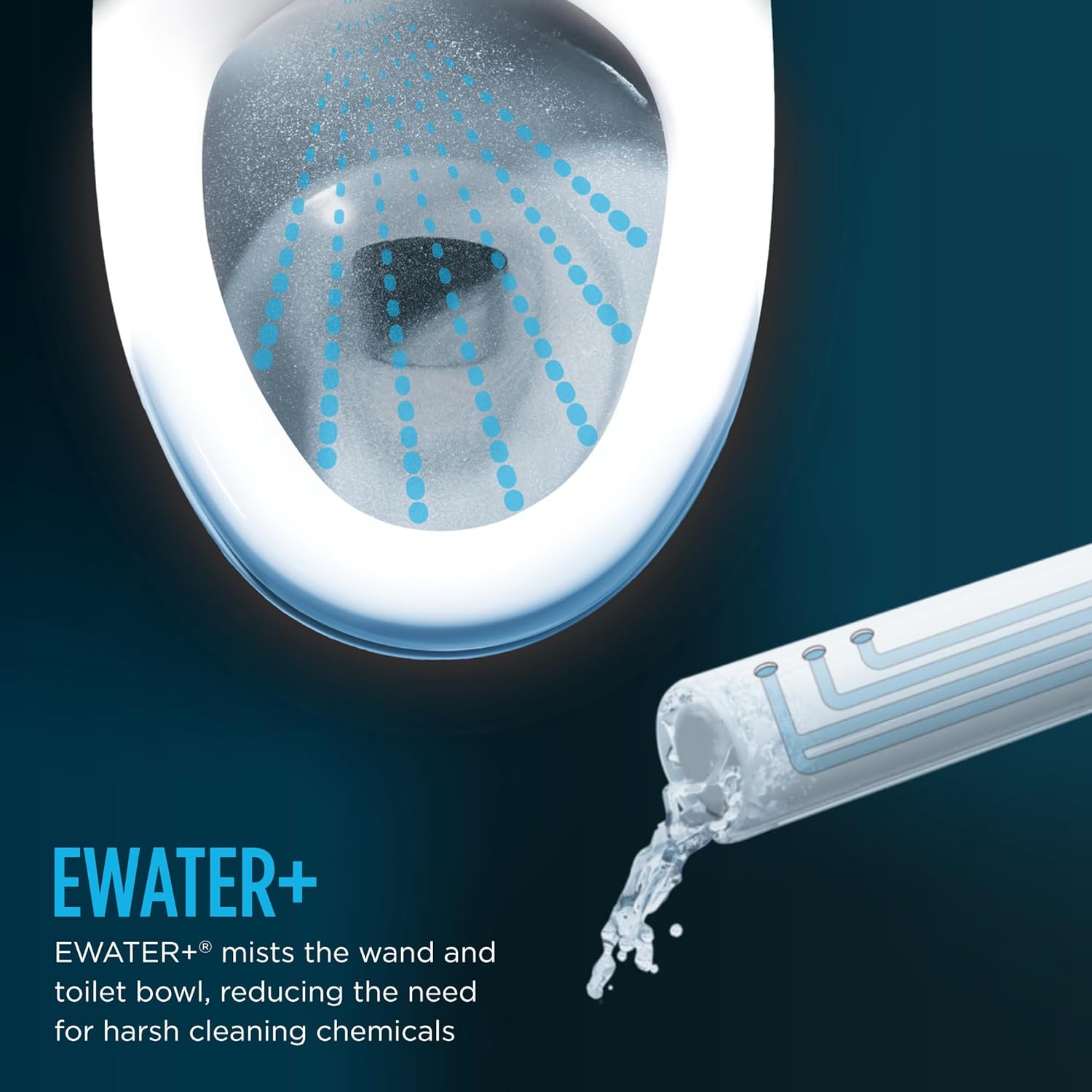

EWATER+® on the Wand and Bowl with Remote Convenience

EWATER+ auto-cleans the wand and the bowl after every use, and PREMIST automatically mists the bowl before each one.

The wand also cleans itself inside and out before and after every use.

Controls are handled by a multifunction pearl white block-style remote control, and CLEAN RESIN keeps the wand and seat easier to maintain. Night light.

EWATER+ on the wand and bowl
PREMIST before every use
Memory settings for up to four users

What do you get with the Drake WASHLET+ S7?

This is combination MW7764726CEGA#01: the two-piece Drake with the C776CEGT40 elongated CEFIONTECT bowl, the ST776EA tank, and the SW4726AT40 WASHLET+ S7, in Cotton.

TOTO lists it as a regular height toilet — not Universal Height — and it flushes once at 1.28 GPF (4.8 LPF), with a seat height of 16" [407mm].

The bowl sets on a 12" rough-in and the trap measures 2-1/8" across.

The auto-flush model adds TOTO's THU857 Auto Flush Kit; the standard model does not include it, and TOTO lists it as an available upgrade.

TOTO Drake WASHLET+ S7 Two-Piece Toilet Features

Feature	Details
Drake Toilet Features
TORNADO FLUSH®	High-efficiency TORNADO FLUSH system - 1.28 GPF (4.8 LPF).
Water Use	Single flush, 1.28 GPF (4.8 LPF).
CEFIONTECT®	Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Trap Diameter	2-1/8".
WASHLET+ Concealed Connection	Concealed supply connection for seamless installation.
Two-Piece Construction	Elongated front bowl toilet and tank with WASHLET+ S7 set.
Height	Regular Height Toilet — seat height 16" [407mm].
Flush Control	Chrome plated trip lever.
Electrical	GFCI outlet of 120V, 15A; the WASHLET power cord is 4' long with 3 prongs.
Auto Flush	Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model.
WASHLET S7 Features
Front and Rear Cleansing	Gentle aerated, warm water, front and rear spray with oscillating and pulsating features.
Adjustable Cleansing	Adjustable spray position, water temperature, and water pressure.
Instantaneous Water Heating	Instantaneous water heater for continuous warm water and energy savings.
Warm Air Dryer	Five variable temperature settings, 95ºF–140ºF.
Heated Seat	Heated seat with temperature control, 82ºF–97ºF.
Automatic Deodorizer	Automatic air deodorizer.
EWATER+®	Auto-cleans the wand and bowl after every use.
PREMIST®	Automatically mists the bowl before each use.
Self-Cleaning Wand	Cleans itself inside and out before and after every use.
CLEAN RESIN®	Keeps wand and seat cleaner, more hygienic, and effortless to maintain.
Seamless Seat	Seamless seat design eliminates the gap where dirt collects.
Night Light	Night light.
Controls	Multifunction pearl white block-style remote control.
User Memory	Personalized memory settings for up to 4 users.
Auto Energy Saver	Adjusts the seat temperature when inactive.

TOTO Drake WASHLET+ S7 Two-Piece Toilet Specifications

Specification	Details
Combination Model	MW7764726CEGA#01
Series	Drake
Toilet Construction	Two-Piece
Bowl Model	C776CEGT40
Tank Model	ST776EA
WASHLET Model	SW4726AT40 (WASHLET+ S7)
Bowl Shape	Elongated
Color	#01 Cotton
Height Classification	Regular Height Toilet
Seat Height	16" [407mm]
Rough-In	12"
Trap Diameter	2-1/8"
Water Use	1.28 GPF (4.8 LPF)
Flush System	TORNADO FLUSH®
Flush Control	Chrome plated trip lever
Auto Flush	Included with the auto-flush model (THU857 kit); available as an upgrade on the standard model
Electrical	GFCI outlet of 120V, 15A; the WASHLET power cord is 4' long with 3 prongs
ADA Compliance	Not stated on this sheet
Warranty	One Year Limited Warranty (combination)
