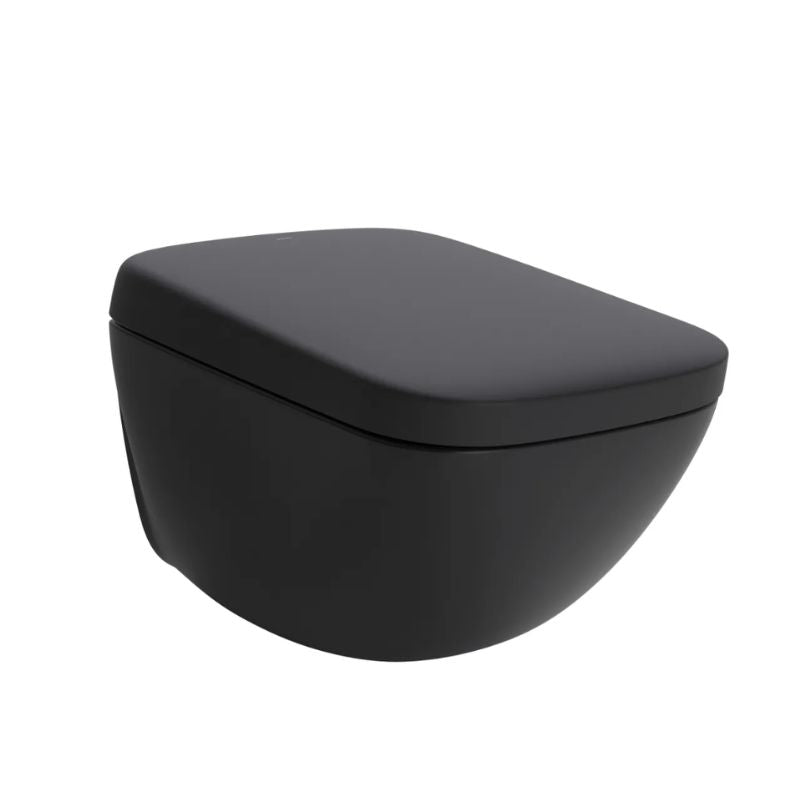

Matte Black Made to Order (MTO)

Matte White Made to Order (MTO)

Authorized TOTO National Dealer

Fast & Free Shipping On All Orders

Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.

Hundreds of 5-Star Reviews Dedicated Customer Support

Questions? Talk to a Real Person.

(877) 420-3443 Message Us

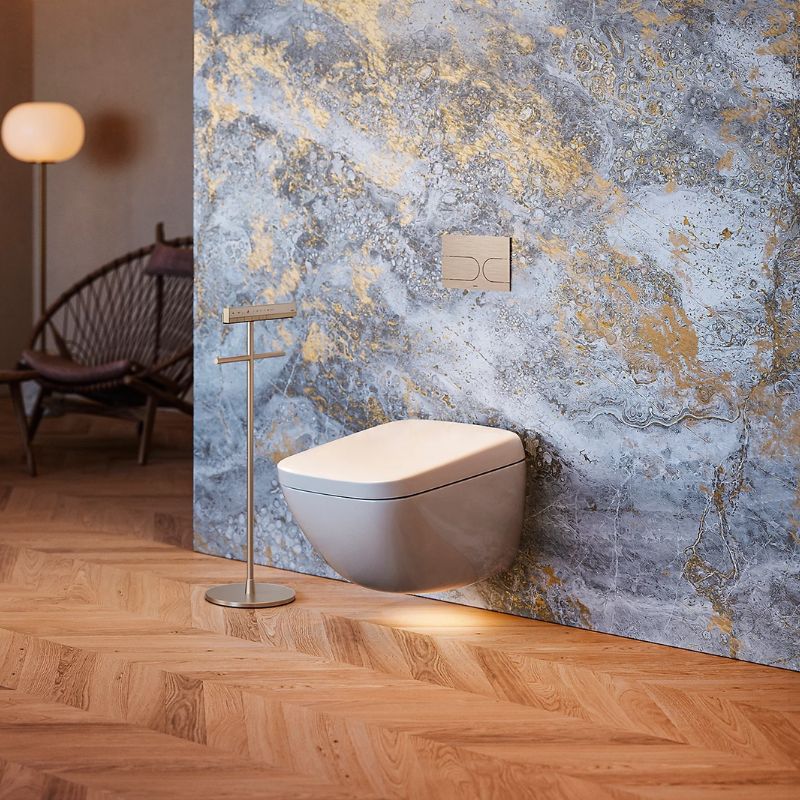

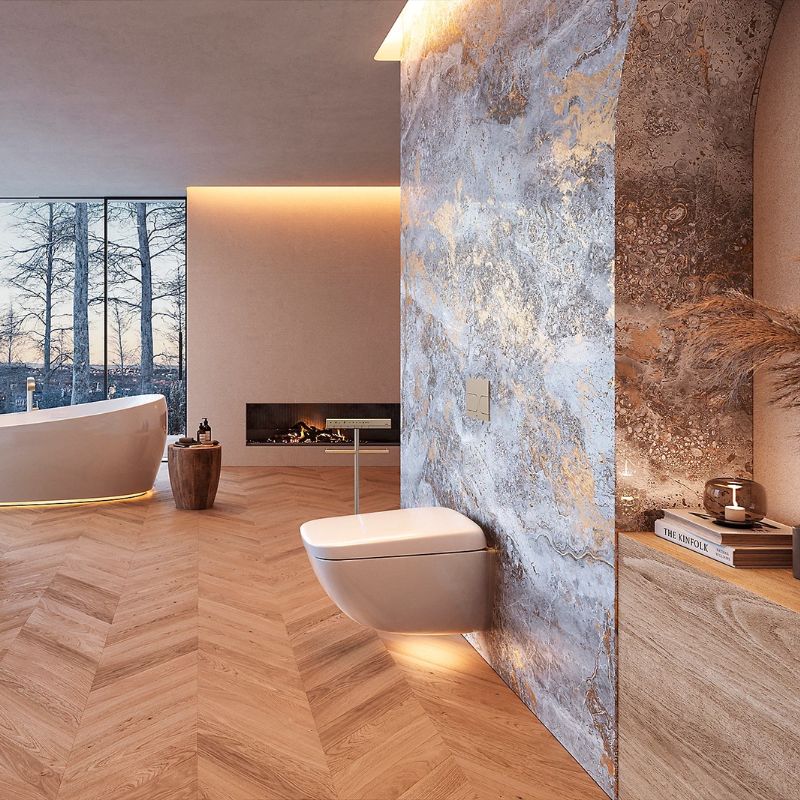

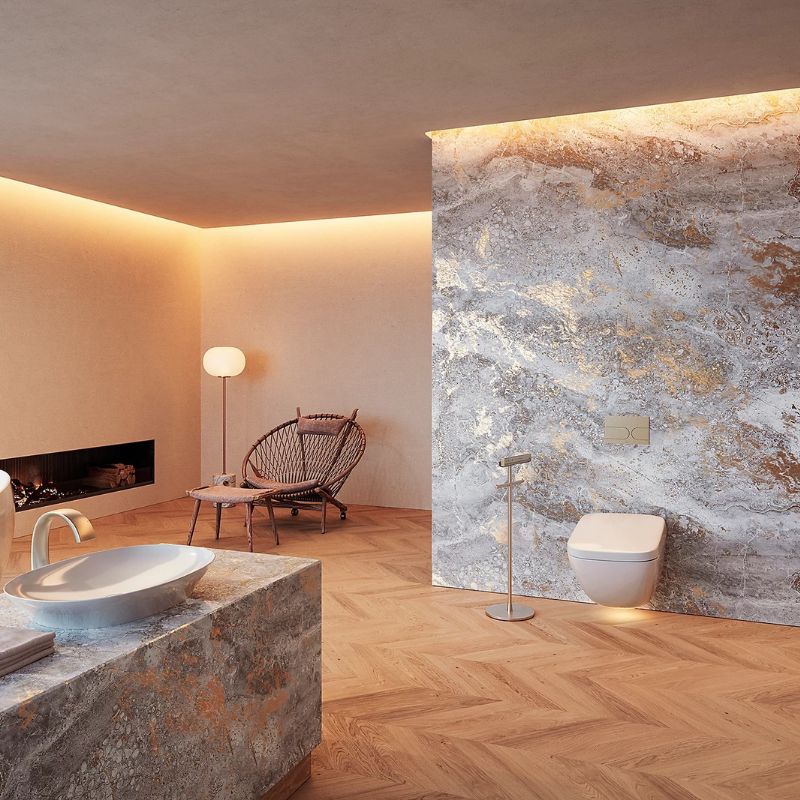

TOTO Neorest WX1 Wall-Hung

The TOTO NEOREST WX1 brings the full NEOREST smart toilet experience to a sleek wall-hung design, creating a clean, floating appearance while freeing up floor space beneath the toilet.

Its concealed in-wall tank keeps the plumbing out of sight, while the mounting height can be adjusted during installation for a more customized fit.

The WX1 also combines EWATER+®, PREMIST, CEFIONTECT® and TORNADO FLUSH® to help keep the bowl and wand cleaner with less routine maintenance.

Beyond its minimalist design, the WX1 includes automatic lid opening and flushing, continuous warm-water washing, a heated seat, warm-air dryer, deodorizer and personalized settings for up to four users.

Sleek Wall-Hung Design

Creates a clean, floating look while opening up floor space.

Adjustable Installation Height

Mount the toilet at a height that better fits your bathroom and comfort needs.

Cleans Before & After Every Use

PREMIST, EWATER+ and CEFIONTECT help reduce buildup and keep the bowl cleaner.

Fully Hands-Free

The lid opens, flushes and closes automatically.

Unlimited Warm Water

Enjoy continuous warm-water washing with adjustable pressure and temperature.

Comfort From Start to Finish

A heated seat, warm-air dryer and deodorizer add everyday comfort.

NEOREST WX1 Installation

TOTO NEOREST WX1 Wall-Hung Toilet Compatibility

Plan the TOTO Neorest WX1 for the renovation phase when walls are open. This wall-hung smart toilet requires in-wall installation with a carrier system and electrical support.

Wall framing: 2x4 residential or 2x6 commercial wall studs to support the in-wall carrier and tank assembly.
In-wall carrier system: TOTO in-wall tank and carrier system required; sold separately. Verify rough-in location with your contractor.
Electrical outlet: GFCI 120V outlet within reach of the wall-hung unit (powers integrated bidet, heater, and controls).
Drain configuration: Wall-mounted drain outlet; coordinate with plumber to ensure P-trap location matches the in-wall carrier.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO NEOREST WX1 Downloads

TOTO NEOREST WX1 Manual

TOTO NEOREST WX1 Installation Manual

TOTO NEOREST WX1 Spec Sheet

Frequently Asked Questions about NEOREST WX1

What is the difference between TOTO Neorest WX1 and WX2?

The difference between the TOTO Neorest WX1 and WX2 is that the WX2 includes ACTILIGHT® technology, while the WX1 does not. Aside from that feature, both models share very similar smart functions, design, and comfort features.

Are WX1 and WX2 the same in terms of comfort and smart features?

Yes. Both models include similar comfort features such as heated seating, warm water washing, air drying, auto lid, auto flush, and remote control operation. The main difference remains the ACTILIGHT® feature on the WX2.

Do WX1 and WX2 look different?

No. Both models have the same wall-hung, minimalist design and look almost identical when installed. The difference is mainly internal technology, not appearance.

Modern Wall-Hung Design & Everyday Comfort

The sleek wall-hung design creates a clean, open, and modern bathroom look while saving space. Enjoy everyday comfort with a heated seat, warm water washing, warm air dryer, and personalized settings for a relaxing and convenient experience.

Powerful & Efficient Flush System

The TORNADO FLUSH® system uses powerful cyclonic rinsing action to thoroughly clean the bowl while using less water. Its ultra high-efficiency dual flush helps maintain strong performance while supporting water savings.

Smart Water-Wash & Maintenance Features

CEFIONTECT® glaze helps reduce waste buildup on the bowl surface. PREMIST® wets the bowl before use, while EWATER+® automatically rinses key components like the wand and bowl after use for easier routine care.

Smart Automatic Features

The lid opens and closes automatically, and auto flush adds hands-free convenience after use. The ergonomic remote control allows easy adjustment of settings, while the built-in night light adds visibility and convenience during nighttime use.

Comparing Neorest Models

All 7 models, side by side.

Standard on every Neorest

TORNADO FLUSH with CEFIONTECT
EWATER+ on wand, bowl, under seat
PREMIST before every use
Instant tankless water heating
Auto open and close lid
Auto flush with manual backup
Heated seat, warm air dryer, deodorizer
3-year residential warranty
4 saved user presets
Energy saver timer
ADA compliant
Night light

How does the NEOREST WX1 compare to the other Neorest models?

TOTO NEOREST models compared by price, installation, base, flush volume, seat height, actilight, remote, and finishes.
Features	RS	AS	LS	NX1	NX2	WX1 you're here	WX2
Price	$2,652	$2,547	$5,006	$11,452	$26,279	$10,897	$25,957
Model number	MS8341CUMFG	MS8551CUMFG	MS8732CUMFG	MS902CUMFG	MS903CUMFX	CWT9538CEMFG	CWT9548CEMFX
Installation	Floor mount	Floor mount	Floor mount	Floor mount	Floor mount	Wall hung	Wall hung
Base	Skirted, removable side panels	Skirted, removable side panels	Skirted, finish-matched side trim	Fully skirted ceramic	Fully skirted ceramic	In-wall tank	In-wall tank
Flush volume	1.0 / 0.8 GPF	1.0 / 0.8 GPF	1.0 / 0.8 GPF	1.0 / 0.8 GPF	1.0 / 0.8 GPF	1.2 / 0.8 GPF	1.2 / 0.8 GPF
Seat height	17-11/16 in.	17-1/4 in.	17-5/16 in.	17-5/16 in.	17-5/16 in.	Set at install	Set at install
ACTILIGHT	—	—	—	—	✓	—	✓
Remote	Block style	Stick style	Stick style, trim matched	Stick style	Stick style	Stick style	Stick style
Finishes	Cotton	Cotton	Cotton with silver, nickel or black trim, Matte Black, Matte White	Cotton	Cotton	Cotton, Matte Black, Matte White	Cotton

View all Neorest models (opens in a new window)

What do you get with the TOTO NEOREST WX1?

The TOTO NEOREST WX1 is sold as a complete wall-hung smart toilet system, including the bowl, integrated bidet top unit, concealed in-wall tank and matching flush plate. The complete set is sold as model CWT9538CEMFG.

Because the tank and carrier are installed inside the wall, the WX1 should be planned early in a bathroom remodel or new build. The carrier position, water supply and electrical connection should all be finalized before the wall is closed.

The bidet top unit operates on 120V AC power and uses a 1.6-foot power cord, so the outlet should be positioned close to the toilet during installation.

Checkout all the Neorest WX1 features and specs below.

TOTO NEOREST WX1 Features

Feature	Details
Flushing and Bowl
Flush System	HYBRID ECOLOGY SYSTEM™ with TORNADO FLUSH®
Water Use	1.2 / 0.8 GPF (4.5 / 3.0 LPF)
Auto Flush	Auto flush, with back-up manual flush for power outages.
CEFIONTECT®	Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Bowl Design	Sleek, space-saving wall-hung design.
In-Wall Tank	WT175MA in-wall tank system (copper pipe)
Load Rating	Supports up to 880 lbs
Trap Diameter	2-1/4"
Trap Seal	2"
Water Surface	5-5/8" x 4-1/8"
Cleansing
Front and Rear Wash	Gentle aerated, warm water, front and rear spray.
Oscillating and Pulsating	Both spray features are listed on this sheet.
Adjustable Spray Position	Spray position is adjustable.
Adjustable Pressure	Water pressure is adjustable.
Adjustable Water Temperature	Water temperature is adjustable, Approx. 86ºF - 104ºF (30ºC - 40ºC).
Comfort
Instantaneous Water Heating	Instantaneous water heater, for continuous warm water and energy savings.
Heated Seat	Heated seat with temperature control, Approx. 82ºF - 97ºF (28ºC - 36ºC).
Warm-Air Dryer	Five variable temperature settings, Approx. 95ºF - 140ºF (35ºC - 60ºC).
Automatic Deodorizer	Automatic air deodorizer.
Universal Height	Universal Height, ADA compliant — ADA compliant when the seat height is between 17" and 19".
Cleaning and Hygiene
EWATER+®	Auto-cleans the wand, bowl and under-seat after every use.
PREMIST®	Automatically mists the bowl before each use.
Self-Cleaning Wand	Cleans itself inside and out before and after every use.
CLEAN RESIN®	Keeps the wand and seat cleaner and easier to maintain.
Seamless Seat	Seamless seat design eliminates the gap where dirt collects.
Controls and Convenience
Remote Control	Multifunction ergonomic stick-style remote control.
User Memory	Personalized memory settings for up to 4 users.
Touchless Auto Open/Close Lid	Touchless auto open/close lid.
Night Light	Illuminates beneath the toilet and inside of the bowl.
Energy Saving	Automatic and programmable energy saving systems.

TOTO NEOREST WX1 Specifications

Specification	Details
Model	TOTO NEOREST WX1
Part Numbers	Set CWT9538CEMFG · bowl CT9538CEFG · top unit SN9538M · in-wall tank WT175MA · push plate YT990 (nickel, black or white to match)
Finishes	#01 Cotton (nickel push plate), #MBL Matte Black (black push plate), #MW Matte White (white push plate)
Installation	Wall-hung
Flush System	HYBRID ECOLOGY SYSTEM™ with TORNADO FLUSH®
Water Use	1.2 / 0.8 GPF (4.5 / 3.0 LPF)
In-Wall Tank	WT175MA in-wall tank system (copper pipe)
Mounting Height	15" - 19" adjustable mounting height (in-wall tank WT175MA)
ADA	ADA compliant when the seat height is between 17" and 19"
Load Rating	Supports up to 880 lbs
Water Surface	5-5/8" x 4-1/8"
Trap Diameter	2-1/4"
Trap Seal	2"
Water Supply Pressure	Min 7.25 PSI (dynamic) / max 108.75 PSI (static)
Power Rating	AC 120 V, 60 Hz
Power Consumption	1294 W (1452 W maximum)
Power Cord Length	1.6 ft (0.5 m)
Seat Temperature	Approx. 82ºF - 97ºF (28ºC - 36ºC)
Water Temperature	Approx. 86ºF - 104ºF (30ºC - 40ºC)
Dryer Temperature	Approx. 95ºF - 140ºF (35ºC - 60ºC)
Deodorizer	Automatic air deodorizer
Bowl Shipping Weight and Carton	88.4 lbs · 31-1/4" x 18-3/8" x 19-1/4"
Top Unit Shipping Weight and Carton	28.7 lbs · 31-1/4" x 20-5/8" x 9-7/8"
Warranty	Three Year Limited (Residential); One Year Limited (Commercial)
