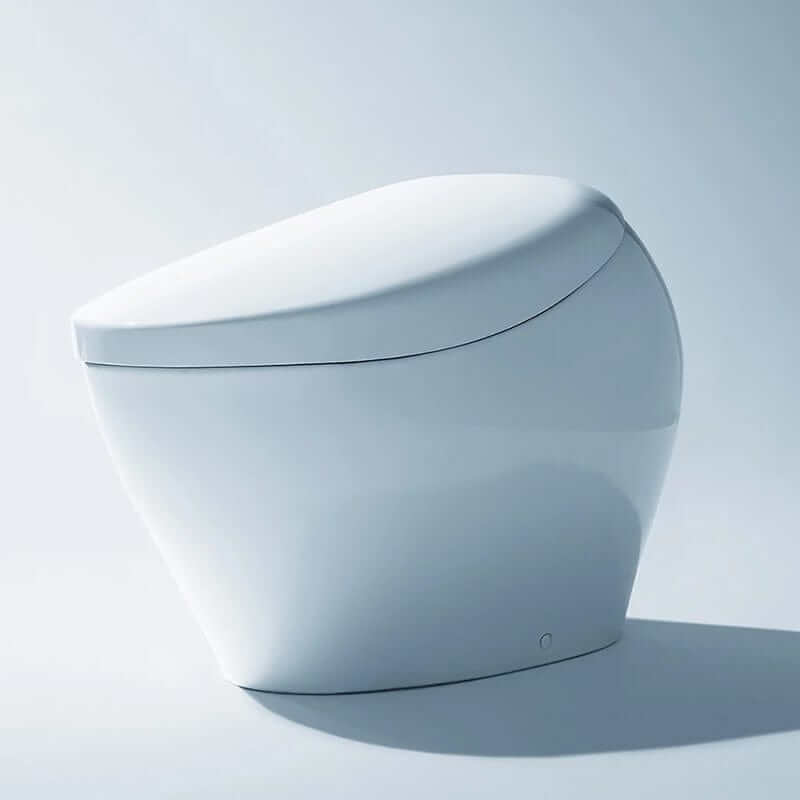

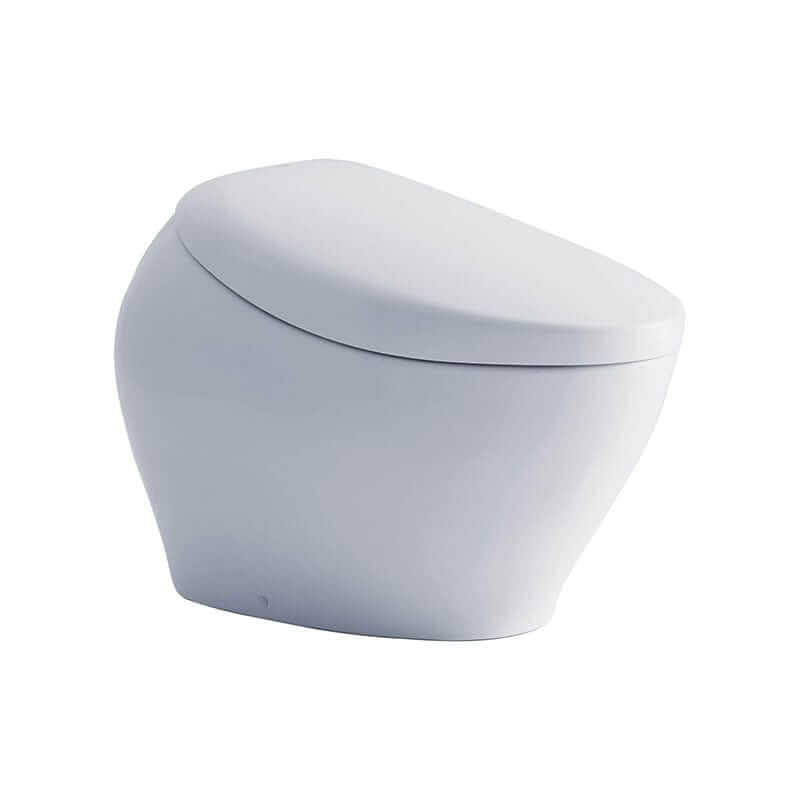

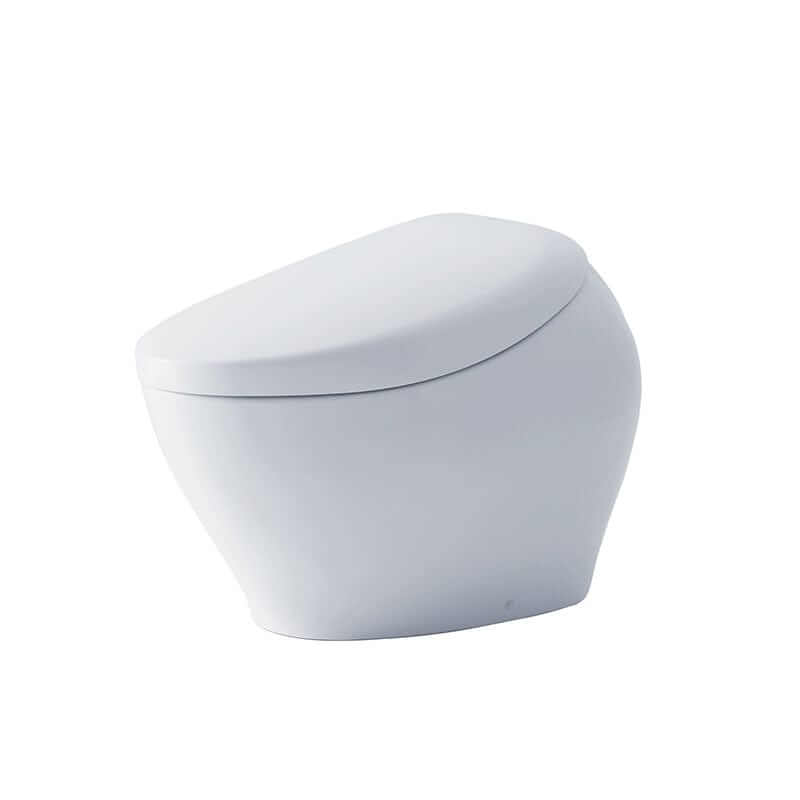

TOTO Neorest NX1 Dual Flush Bidet Toilet - Modern toilet bowl with closed lid on a light gray background

TOTO Neorest NX1 Dual Flush Bidet Toilet

TOTO
SKU: MS902CUMFG#01

FREE Shipping + No Sales Tax

$11,452.00
Authorized TOTO National Dealer
Fast & Free Shipping On All Orders
Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.
Hundreds of 5-Star Reviews Dedicated Customer Support
Questions? Talk to a Real Person.
(877) 420-3443 Message Us

TOTO NEOREST NX1 MS902CUMFG#01

The TOTO NEOREST NX1 is one of TOTO's most luxurious smart toilets, combining the sculpted design of the flagship NX Series with advanced cleaning, comfort and hands-free features.

Its wide, flowing one-piece design creates a more substantial presence than the NEOREST LS, AS and RS, while PREMIST, EWATER+, automatic flushing, endless warm water and personalized wash settings handle nearly everything for you.

For shoppers who love the NX2 design but don't need ACTILIGHT, the NX1 delivers nearly the same premium experience at a significantly lower price.

Flagship NX Design

Sculpted, fully skirted styling creates a bold luxury look.

Cleans Before & After Every Use

PREMIST, EWATER+ and CEFIONTECT help keep the bowl cleaner.

Fully Hands-Free

The lid opens, flushes and closes automatically.

Unlimited Warm Water

Enjoy continuous warm-water washing with no reheating wait.

Personalized for Every User

Adjust spray, pressure and temperature to your preference.

Comfort From Start to Finish

Heated seating, warm-air drying and deodorizing add everyday comfort.

NEOREST NX1 Installation

TOTO Neorest NX1 Dual Flush Bidet Toilet dimensions

TOTO Neorest NX1 Dual Flush Bidet Toilet Compatibility

The TOTO Neorest NX1 is a one-piece smart bidet toilet with an elongated bowl. Confirm these four things before ordering:

  • Rough-in measurement: 12 inches standard. No 10-inch or 14-inch adapter is available for this model.
  • Floor clearance: 21 inches in front of the bowl, 15 inches on each side.
  • Water supply: Standard ½-inch connection at the base of the toilet.
  • Electrical outlet: GFCI 120V within 3 feet; dedicated 15-amp circuit recommended (powers integrated bidet seat and heated functions).

Installation steps

  1. Prep. Shut off the water supply, flush to empty the tank, then disconnect the supply line.
  2. Remove the old toilet. Unbolt from the floor and scrape the old wax ring from the flange.
  3. Set the wax ring. Place a new wax ring on the flange, centered over the drain.
  4. Seat the new toilet. Lower onto the flange, press down firmly, and hand-tighten the bolts evenly.
  5. Connect and test. Reconnect the supply line, restore water, and plug into the GFCI outlet.

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO Neorest NX1 Downloads

TOTO Neorest NX1 Manual

TOTO Neorest NX1 Installation Manual

TOTO Neorest NX1 Spec Sheet

Frequently Asked Questions about NEOREST NX1

Why is TOTO Neorest so expensive?

TOTO Neorest is expensive because it has built-in smart features like auto cleaning, heated seat, warm water wash, and air dryer. It’s made for comfort and convenience.

What is the difference between Toto Neorest LS and NX1?

The difference between Toto Neorest LS and NX1 is the design. The LS looks more modern and straight, while the NX1 is more curved and rounded.

What is the difference between Toto LS and NX1?

The difference between Toto LS and NX1 is mainly the style. The NX1 is bigger and curved, while the LS is slimmer and more modern.

Is the Toto Neorest NX1 a smart choice for a bidet toilet?

Yes, the Toto Neorest NX1 is a smart choice because it has strong flushing, self-cleaning, and comfort features like a heated seat and dryer.

TOTO Neorest NX1 Dual Flush Bidet Toilet

HYBRID ECOLOGY SYSTEM™ — A Flush That Does Not Depend On Your Water Pressure

Most high-efficiency toilets are only as strong as the supply feeding them.

The NX1 uses TOTO's HYBRID ECOLOGY SYSTEM, which TOTO describes as an advanced pressure-independent electric flushing system delivering exceptionally powerful, optimized performance.

It is paired with ultra high-efficiency TORNADO FLUSH, and TOTO states the combination provides powerful waste removal and enhanced bowl cleaning at 1.0/0.8 GPF.

Why the flush engine matters here:

  • Pressure-independent electric flushing
  • TORNADO FLUSH rinse at 1.0 GPF / 0.8 GPF
  • Automatic flush, with a manual back-up for power outages
TOTO Neorest NX1 Dual Flush Bidet Toilet

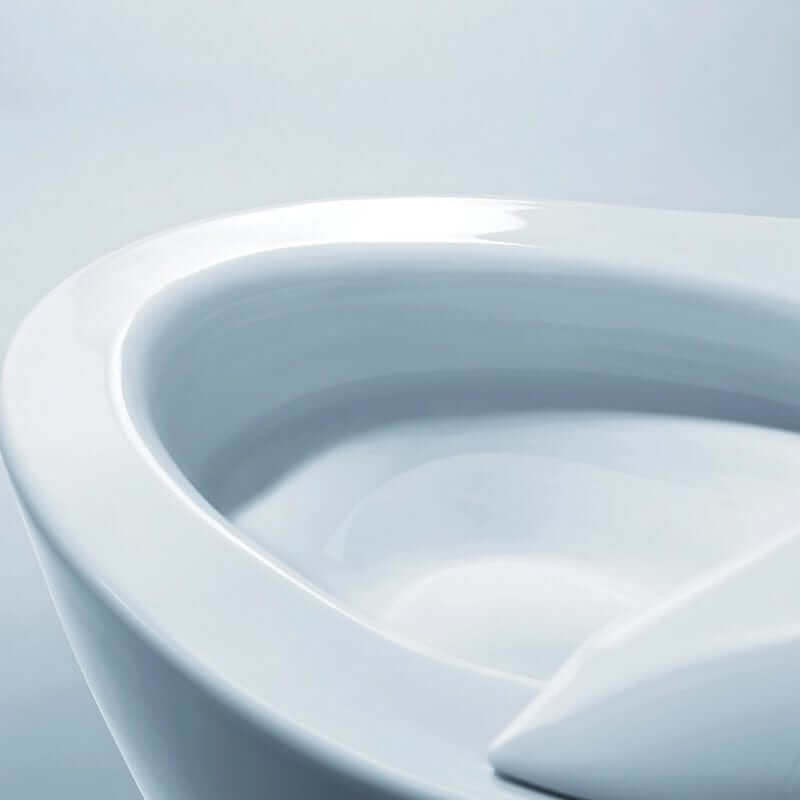

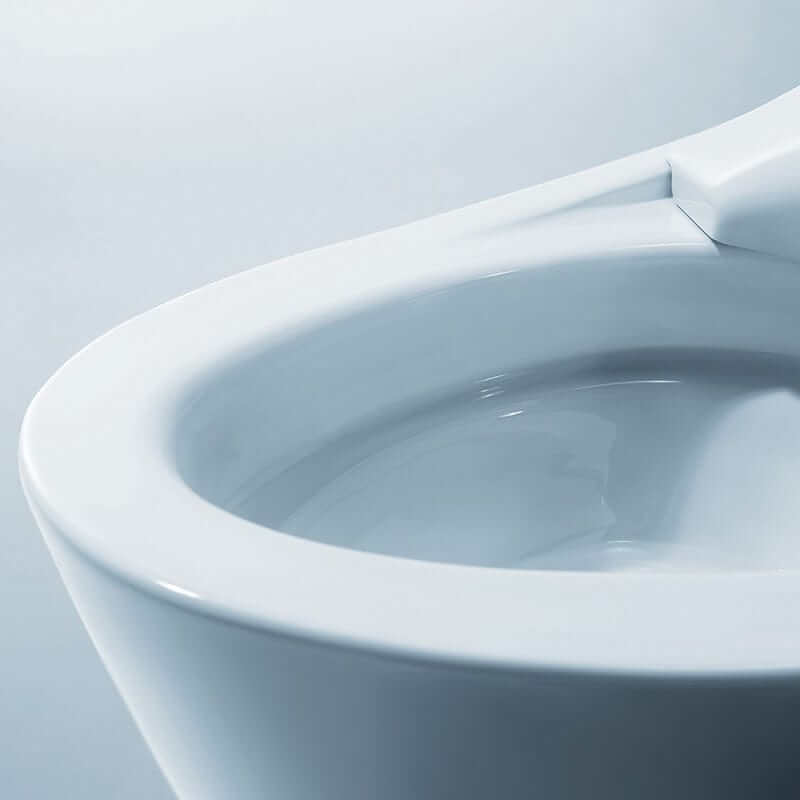

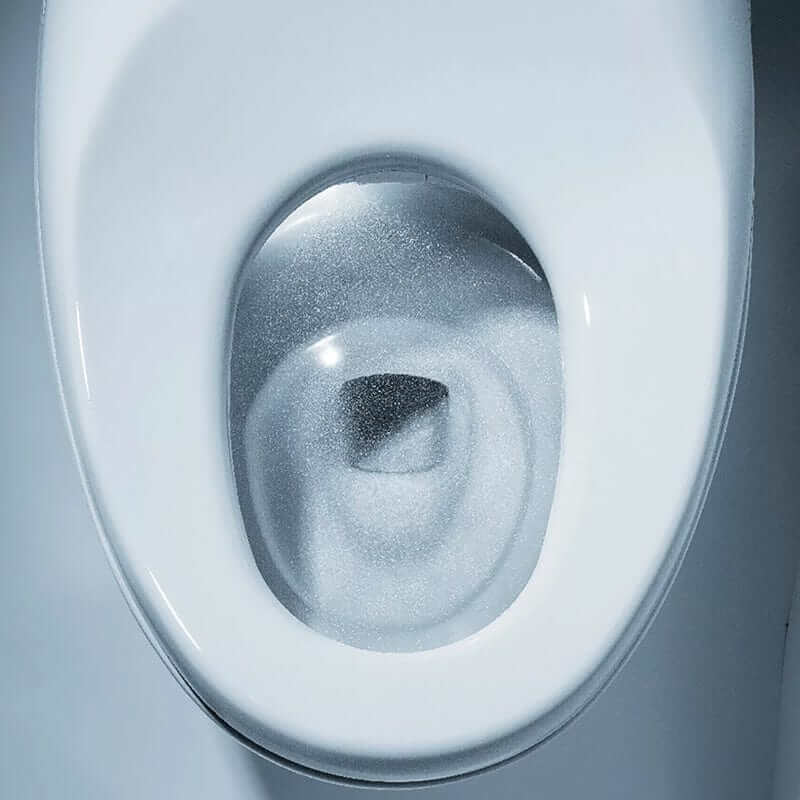

A Bowl Built To Stay Clean

CEFIONTECT ceramic glaze minimizes waste from sticking to porous ceramic surfaces, and PREMIST automatically mists the bowl before each use so there is already a film of water in the way.

After every use EWATER+ auto-cleans the wand, the bowl and the under-seat, and the wand cleans itself inside and out both before and after.

CLEAN RESIN keeps the wand and seat easier to maintain.

Cleaning that happens without you:

  • EWATER+® on the wand, the bowl and the under-seat
  • PREMIST® before every use
  • Self-cleaning wand, inside and out
  • Seamless seat with no gap for dirt to collect
TOTO Neorest NX1 Dual Flush Bidet Toilet

Warm Water That Does Not Run Out

The NX1 washes with gentle aerated warm water front and rear, with oscillating and pulsating features, and lets you adjust spray position, water temperature and water pressure independently of one another.

Because the heater is instantaneous rather than a reservoir, the warm water is continuous.

Drying is a warm air dryer with five variable temperature settings, and the heated seat carries its own temperature control.

TOTO Neorest NX1 Dual Flush Bidet Toilet

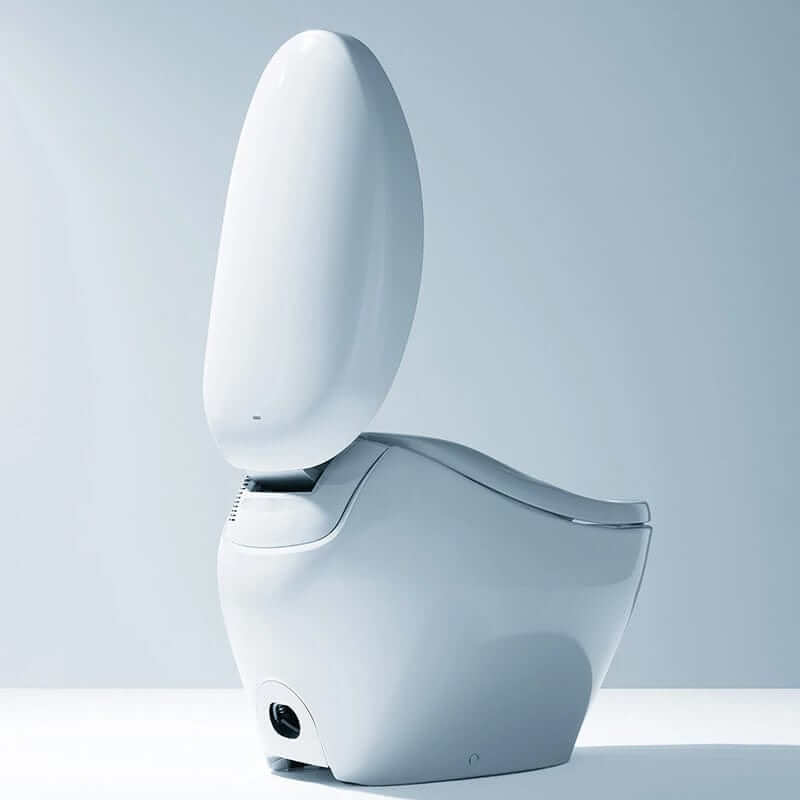

Everyday Use, Designed Down To The Details

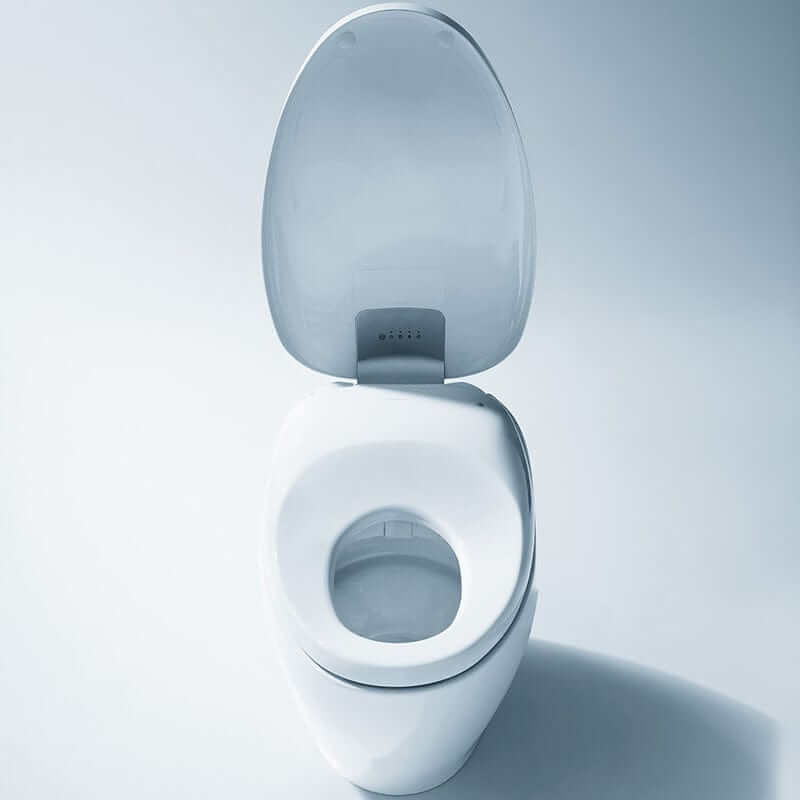

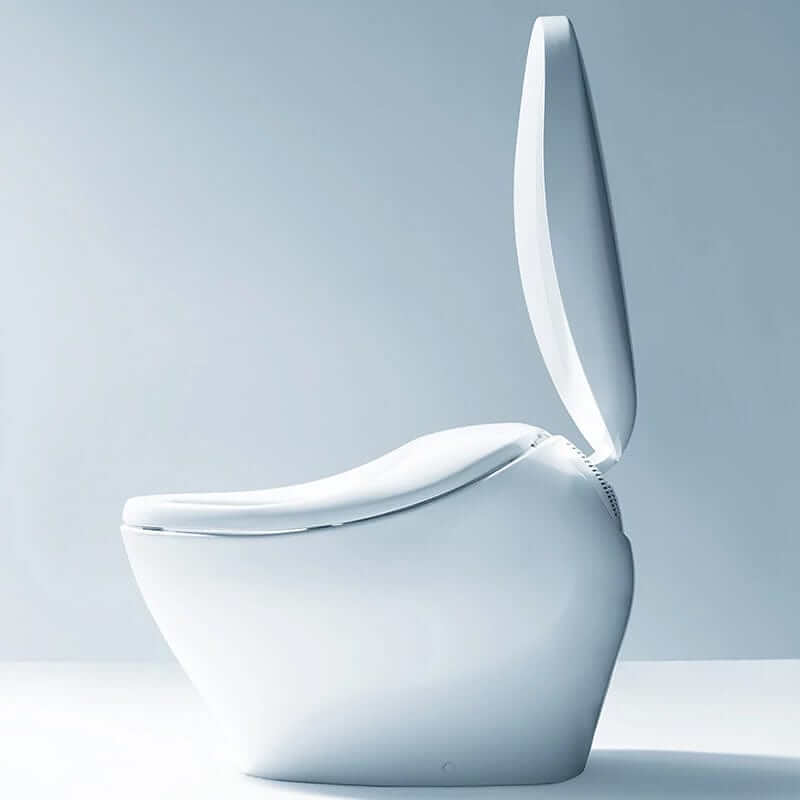

The lid opens and closes automatically, and the ergonomic stick-style remote stores personalized memory settings for up to four users.

A night light illuminates behind the toilet and inside of the bowl.

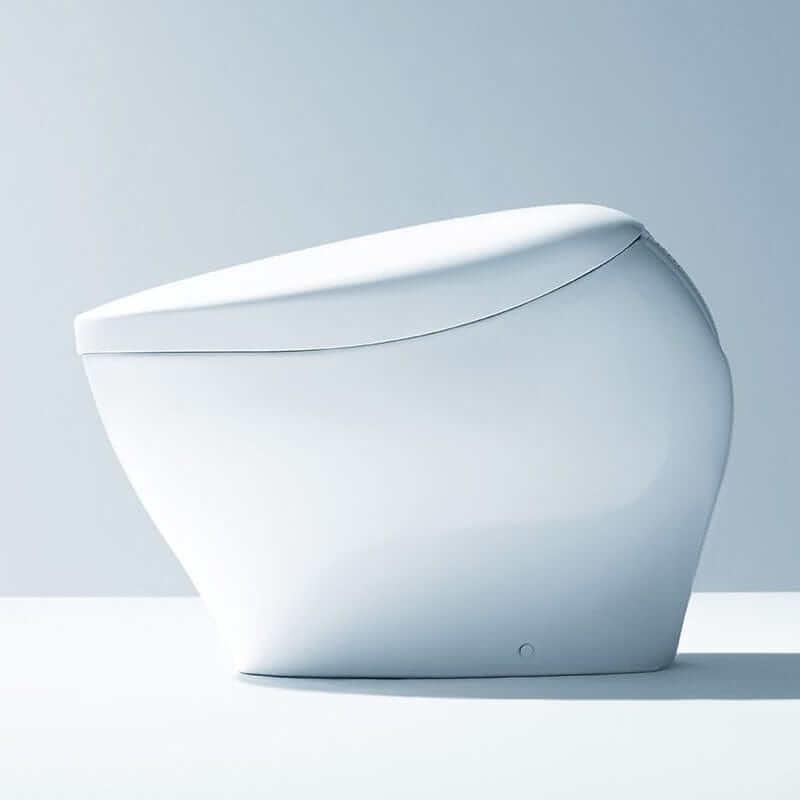

The body is a sleek, low profile one-piece skirted design, so there is no exposed trap way and nothing behind the bowl to reach around.

Automatic and programmable energy saving systems run in the background.

Comparing Neorest Models

All 7 models, side by side.

Standard on every Neorest

  • TORNADO FLUSH with CEFIONTECT
  • EWATER+ on wand, bowl, under seat
  • PREMIST before every use
  • Instant tankless water heating
  • Auto open and close lid
  • Auto flush with manual backup
  • Heated seat, warm air dryer, deodorizer
  • 3-year residential warranty
  • 4 saved user presets
  • Energy saver timer
  • ADA compliant
  • Night light

How does the TOTO Neorest NX1 compare to the other Neorest models?

TOTO NEOREST models compared by price, installation, base, flush volume, seat height, actilight, remote, and finishes.
FeaturesRSASLSNX1 you're hereNX2WX1WX2
Price$5,199 $6,783 $8,007 $11,452 $26,279 $10,897 $25,957
Model numberMS8341CUMFGMS8551CUMFGMS8732CUMFGMS902CUMFGMS903CUMFXCWT9538CEMFGCWT9548CEMFX
InstallationFloor mount Floor mount Floor mount Floor mount Floor mount Wall hung Wall hung
BaseSkirted, removable side panels Skirted, removable side panels Skirted, finish-matched side trim Fully skirted ceramic Fully skirted ceramic In-wall tank In-wall tank
Flush volume1.0 / 0.8 GPF 1.0 / 0.8 GPF 1.0 / 0.8 GPF 1.0 / 0.8 GPF 1.0 / 0.8 GPF 1.2 / 0.8 GPF 1.2 / 0.8 GPF
Seat height17-11/16 in. 17-1/4 in. 17-5/16 in. 17-5/16 in. 17-5/16 in. Set at install Set at install
ACTILIGHT————✓—✓
RemoteBlock style Stick style Stick style, trim matched Stick style Stick style Stick style Stick style
FinishesCotton Cotton Cotton with silver, nickel or black trim, Matte Black, Matte White Cotton Cotton Cotton, Matte Black, Matte White Cotton

The NX1 is the NX2 without ACTILIGHT — and with a flush engine the NX2 does not list. TOTO pairs TORNADO FLUSH here with the HYBRID ECOLOGY SYSTEM, a pressure-independent electric flush that does not weaken on a low-pressure supply.

View all Neorest models (opens in a new window)

What do you get with the TOTO NEOREST NX1?

The TOTO NEOREST NX1 is a complete integrated smart toilet, with the bidet, heated seat, dryer, deodorizer and automatic functions built directly into the fixture. There is no separate WASHLET seat to purchase or install.

The NX1 includes the wireless remote control and is finished in TOTO Cotton White as model MS902CUMFG#01.

For installation, plan for a 12" rough-in, a water connection and a nearby 120V GFCI outlet. The NX1 has a 3.9-foot power cord and a seat height of 17-5/16".

Checkout all the features and specifications below.

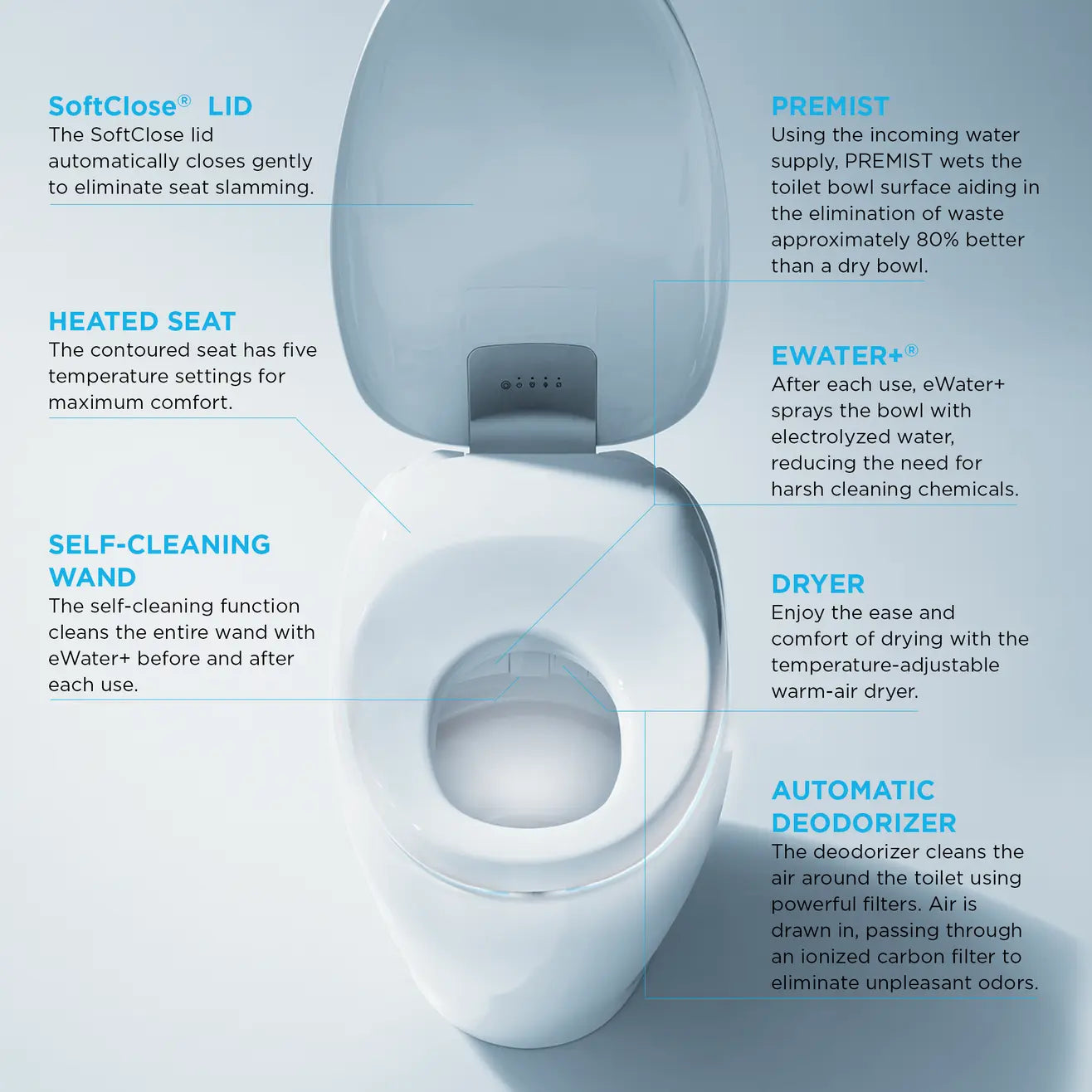

TOTO NEOREST NX1 Features

Feature Details
Flushing and Bowl
Flush System HYBRID ECOLOGY SYSTEM™ with TORNADO FLUSH®
Water Use 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
Auto Flush Auto flush, with back-up manual flush for power outages.
CEFIONTECT® Ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Bowl Design Sleek, low profile one-piece skirted design.
Trap Diameter 2" (51 mm)
Trap Seal 2-1/8" (54 mm)
Water Surface 8-1/2" x 7-1/2"
Cleansing
Front and Rear Wash Gentle aerated, warm water, front and rear spray.
Oscillating and Pulsating Both spray features are listed on this sheet.
Adjustable Spray Position Spray position is adjustable.
Adjustable Pressure Water pressure is adjustable.
Adjustable Water Temperature Water temperature is adjustable, Approx. 86ºF - 104ºF (30ºC - 40ºC).
Comfort
Instantaneous Water Heating Instantaneous water heater, for continuous warm water and energy savings.
Heated Seat Heated seat with temperature control, Approx. 82ºF - 97ºF (28ºC - 36ºC).
Warm-Air Dryer Five variable temperature settings, Approx. 95ºF - 140ºF (35ºC - 60ºC).
Automatic Deodorizer Automatic air deodorizer (O2 Deodorizer).
Universal Height Universal Height, ADA compliant, 17-5/16" (440mm) floor to seat.
Cleaning and Hygiene
EWATER+® Auto-cleans the wand, bowl and under-seat after every use.
PREMIST® Automatically mists the bowl before each use.
Self-Cleaning Wand Cleans itself inside and out before and after every use.
CLEAN RESIN® Keeps the wand and seat cleaner and easier to maintain.
Seamless Seat Seamless seat design eliminates the gap where dirt collects.
Controls and Convenience
Remote Control Multifunction ergonomic stick-style remote control.
User Memory Personalized memory settings for up to 4 users.
Touchless Auto Open/Close Lid Touchless auto open/close lid.
Night Light Illuminates behind the toilet and inside of the bowl.
Energy Saving Automatic and programmable energy saving systems.


TOTO NEOREST NX1 Specifications

Specification Details
Model TOTO NEOREST NX1
Part Number MS902CUMFG#01
Color Cotton
Flush System HYBRID ECOLOGY SYSTEM™ with TORNADO FLUSH®
Water Use 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
Rough-In 12" Modular Rough-In
Floor to Seat Height 17-5/16" (440mm)
Water Surface 8-1/2" x 7-1/2"
Trap Diameter 2" (51 mm)
Trap Seal 2-1/8" (54 mm)
Water Supply Pressure Min 7.25 PSI (0.05MPa) flowing / max 108.75 PSI (0.75MPa) static
Power Rating AC 120 V, 60 Hz, 1290 W
Power Cord Length 3.9 ft (1.2m)
Seat Temperature Approx. 82ºF - 97ºF (28ºC - 36ºC)
Water Temperature Approx. 86ºF - 104ºF (30ºC - 40ºC)
Dryer Temperature Approx. 95ºF - 140ºF (35ºC - 60ºC)
Deodorizer O2 Deodorizer
Product Weight 141 lbs
Shipping Weight 161 lbs
Shipping Dimensions 36-3/4" L x 21-1/2" W x 31-5/8" H
Warranty Three Year Limited (Residential); One Year Limited (Commercial)
