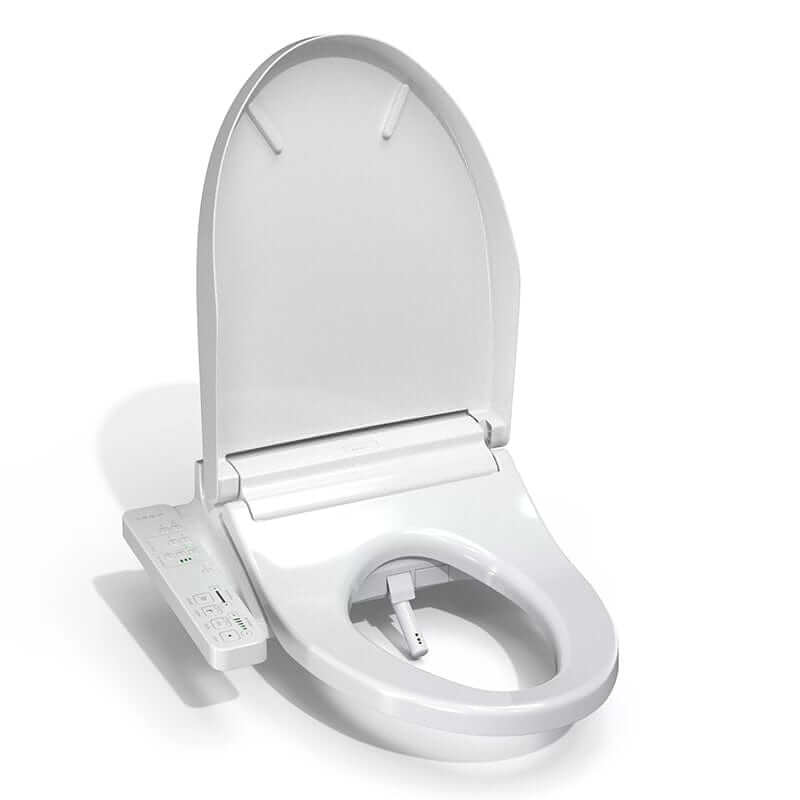

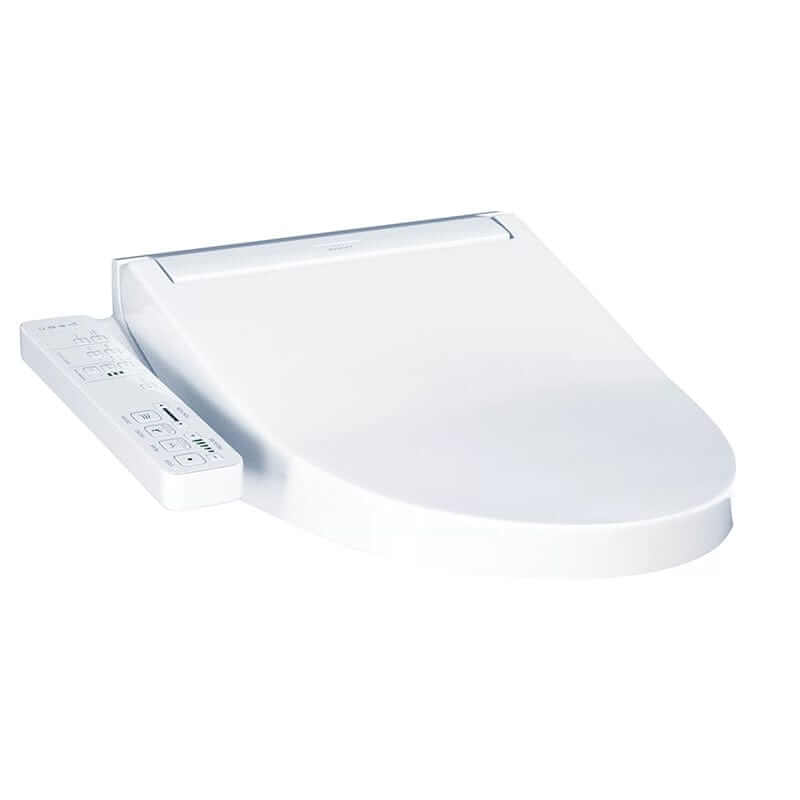

TOTO Washlet KC2 Bidet Toilet Seat - Corner view of bidet toilet seat on a white background

TOTO Washlet KC2 Bidet Toilet Seat

TOTO
SKU: SW3024#01

FREE Shipping + No Sales Tax

$674.00
$450.00
Seat Shape
Authorized TOTO National Dealer
Fast & Free Shipping On All Orders
Pay How You Want Credit Card, Shop Pay, PayPal, HSA/FSA with Truemed and more.
Dedicated Customer Support Hundreds of 5-Star Reviews
Questions? Talk to a Real Person.
(877) 420-3443 Message Us

TOTO Washlet KC2 — SW3024#01

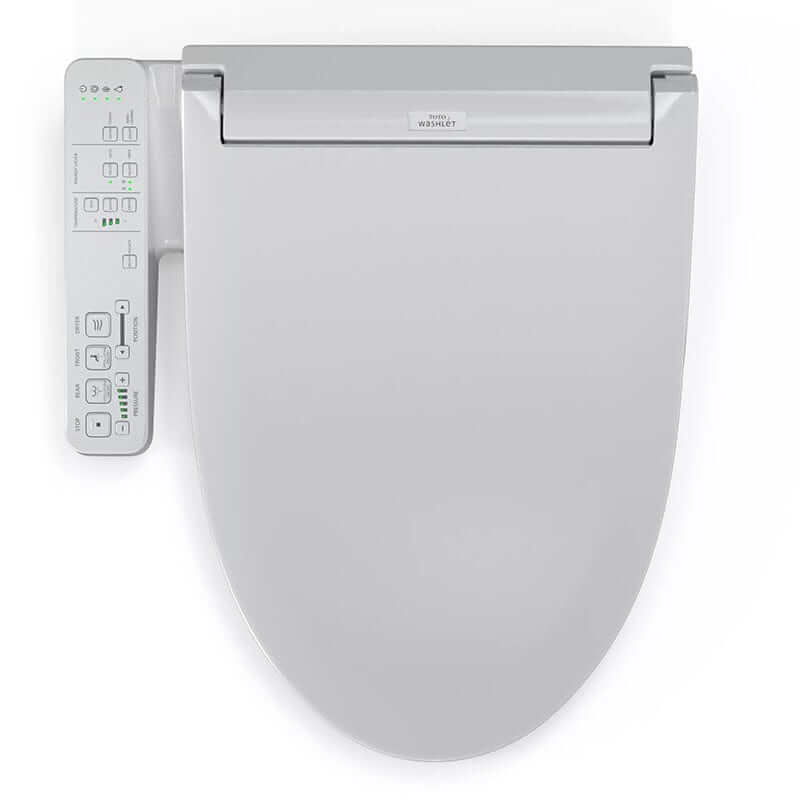

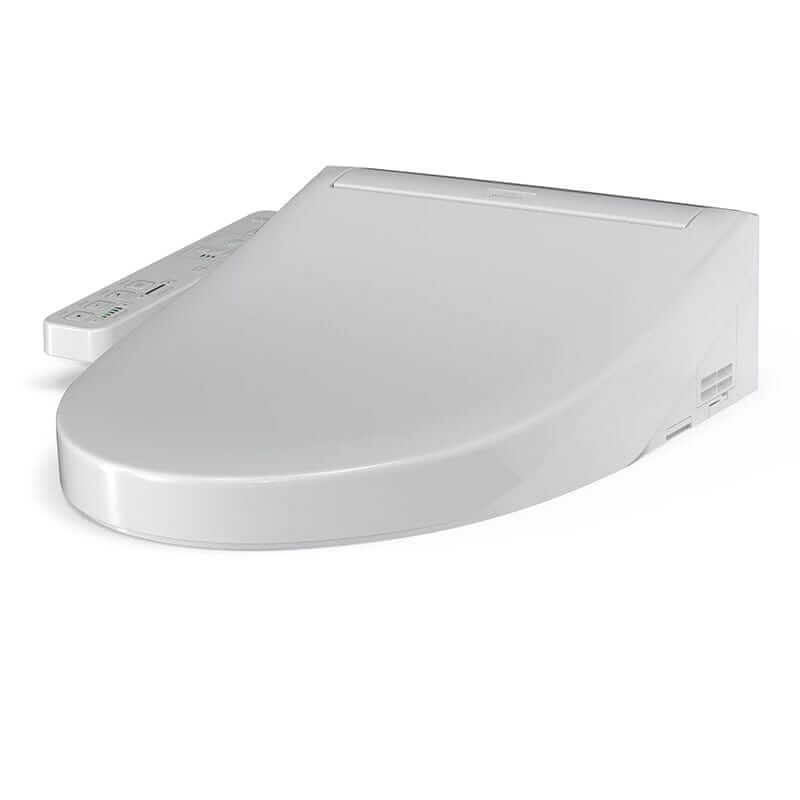

The TOTO Washlet KC2 is an electronic bidet seat with an arm control panel and a three-setting warm-air dryer, in elongated and round shapes.

It covers warm-water cleansing, a heated seat and a dryer at the entry end of TOTO's range. The elongated seat is SW3024#01 and the round seat SW3023#01, both in Cotton.

  • Available Shapes: Elongated and round
  • Water Heating: Warm water, adjustable 95ºF–104ºF (TOTO does not state the heating type)
  • Controls: Arm control panel
  • Warm-Air Dryer: Three settings, 95ºF–140ºF
  • Cleaning Technology: Self-cleaning wand and CLEAN RESIN®
  • Compatibility: Compatible with most elongated toilets
  • Power: AC 120V, 60Hz · 403 W
  • Warranty: One Year Limited Warranty

Front and Rear Cleansing

Front and rear spray in gentle aerated warm water, oscillating and pulsating, with adjustable position, temperature and pressure.

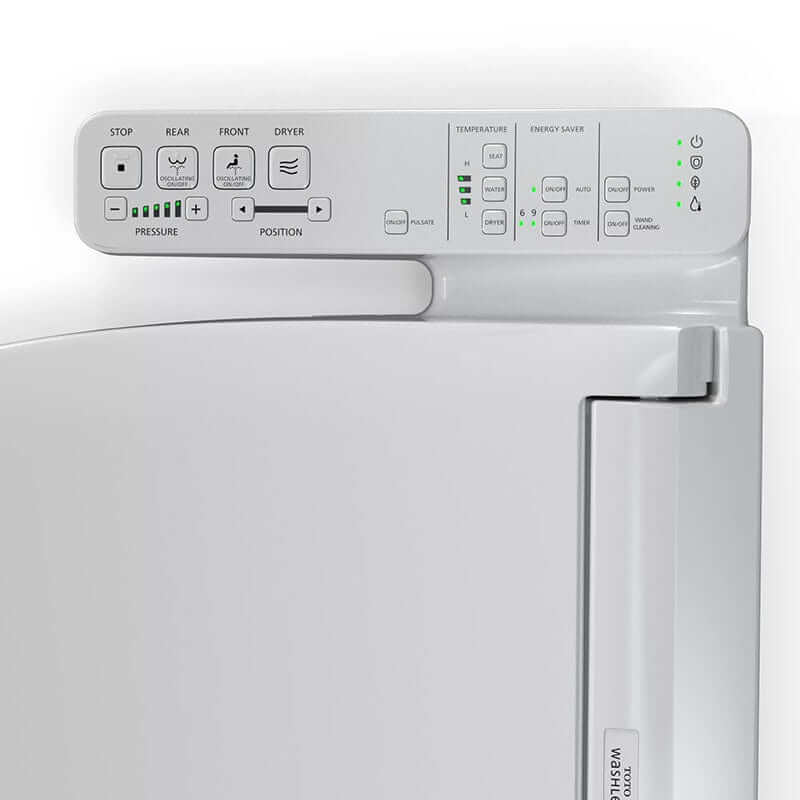

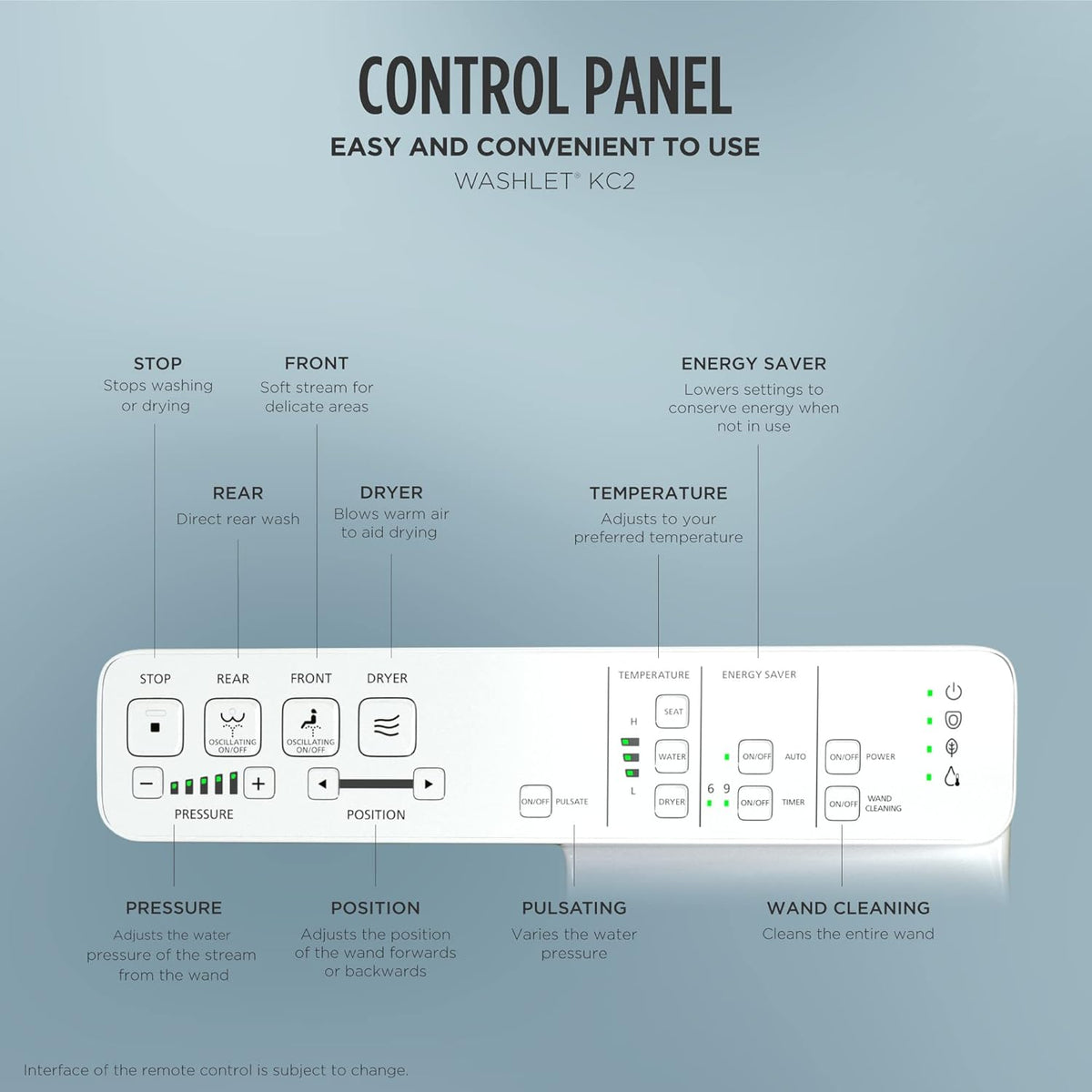

Arm Control Panel

The panel sits on the side of the seat, and on the round model TOTO lists illuminated buttons.

Warm-Air Dryer

The dryer offers three variable temperature settings, from 95ºF to 140ºF. Dryer air is listed between 95ºF and 140ºF on the same sheet.

Heated Seat with Temperature Control

Seat temperature adjusts between 82ºF and 97ºF, and auto energy saver mode lowers it when the seat is inactive.

Self-Cleaning Wand and CLEAN RESIN®

The wand cleans itself inside and out before and after every use, in a CLEAN RESIN® body TOTO says stays cleaner.

Seamless Seat and SoftClose®

The seamless design eliminates the gap where dirt collects, and the seat is SoftClose®. Both are listed on TOTO's spec sheet for this model.

TOTO KC2 Installation

TOTO Washlet KC2 Bidet Toilet Seat dimensions

TOTO Washlet KC2 Compatibility

The TOTO Washlet KC2 works with most standard toilets. Confirm these four things before ordering:

  • Bowl shape: Available in round and elongated; order the version that matches your toilet's bowl shape.
  • Tank profile: Your tank should meet the bowl at roughly a 90° angle. French curve tanks that slope into the bowl are not compatible.
  • Mounting hole spacing: Measure between the two seat bolt holes at the back of your bowl. They should be 5.5 inches apart.
  • Tank clearance: You need at least 2 inches of flat space (elongated) or 2.5 inches (round) between the front of the tank and the seat mounting holes.

For reference: Standard round toilets measure about 16.5 inches from bolts to bowl front; elongated toilets are about 18.5 inches.

Installation steps

  1. Remove old seat. Clean the surface around the mounting holes.
  2. Install the seat mounting bracket.
  3. Slide the Washlet onto the bracket.
  4. Connect the hose.
  5. Turn the Washlet on.

Before you start you will need:

  • A wrench
  • A Phillips-head & flat-head screwdriver
  • A ground-fault 120-volt outlet within three feet of your toilet
  • To turn off your water supply and flush your toilet

Need a Professional Installer near you?

If you need help finding a professional installer in your area, checkout Licensed TOTO Installers page to find one near you.

TOTO KC2 Downloads

TOTO KC2 Manual

TOTO KC2 Installation Manual

TOTO KC2 Spec Sheet

Frequently Asked Questions about TOTO KC2

What is the Toto KC2?

The TOTO KC2 is an electronic bidet toilet seat that provides warm water cleansing, a heated seat, and a warm air dryer for everyday comfort and hygiene.

What is the difference between Toto KC2 and C2?

The difference between TOTO KC2 and C2 is that the C2 includes additional features like a deodorizer and more advanced cleaning technology, while the KC2 is a simpler model focused on the core bidet functions.

What is the difference between Toto KC2 and A2?

The difference between TOTO KC2 and A2 is that the KC2 adds more spray options like pulsating and oscillating wash, while the A2 is a more basic bidet seat with fewer cleaning modes.

TOTO Washlet KC2 Bidet Toilet Seat

Arm Control Panel with Warm-Water Cleansing

The KC2 is operated from a convenient arm control panel.

On the round model TOTO lists that panel with illuminated buttons.

The spray runs between 95ºF and 104ºF.

TOTO does not state a water-heating type on this sheet, so this page does not claim one.

TOTO lists supply pressure between 7.25 and 108.75 PSI.

  • Arm panel with illuminated buttons
  • Illuminated buttons on the round model
  • Spray 95ºF to 104ºF
TOTO Washlet KC2 Bidet Toilet Seat

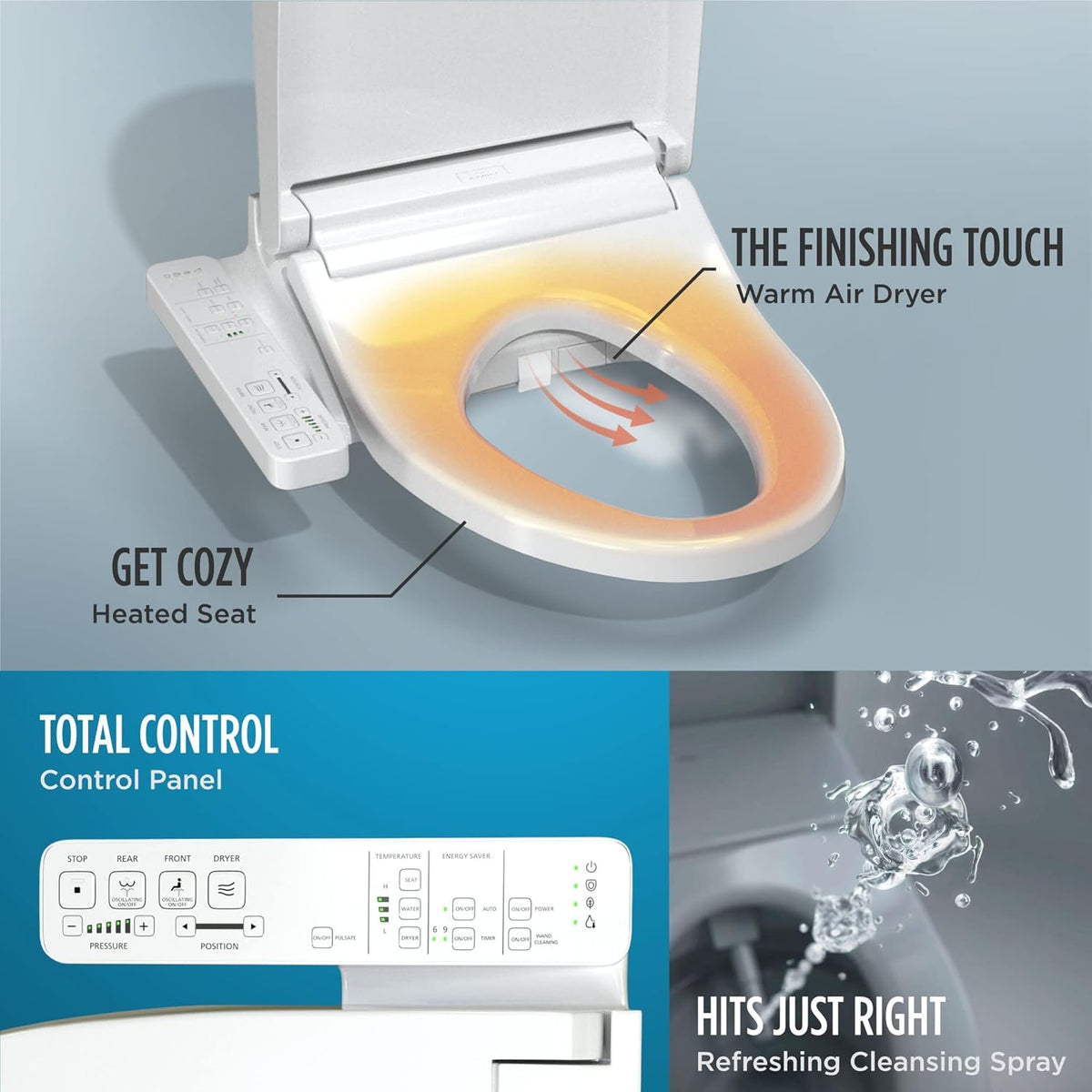

Heated Seat with Warm Air Dryer

The seat heats to an adjustable 82ºF to 97ºF.

The warm-air dryer offers three variable temperature settings, from 95ºF to 140ºF.

When the seat is inactive, auto energy saver mode adjusts its temperature.

The KC2 does not include an automatic deodorizer, and TOTO lists no night light for it.

The seat closes on SoftClose®.

Ambient temperature is listed at 32ºF to 104ºF.

  • Seat heats 82ºF to 97ºF
  • Three dryer settings, 95ºF to 140ºF
  • Energy saver mode listed
TOTO Washlet KC2 Bidet Toilet Seat

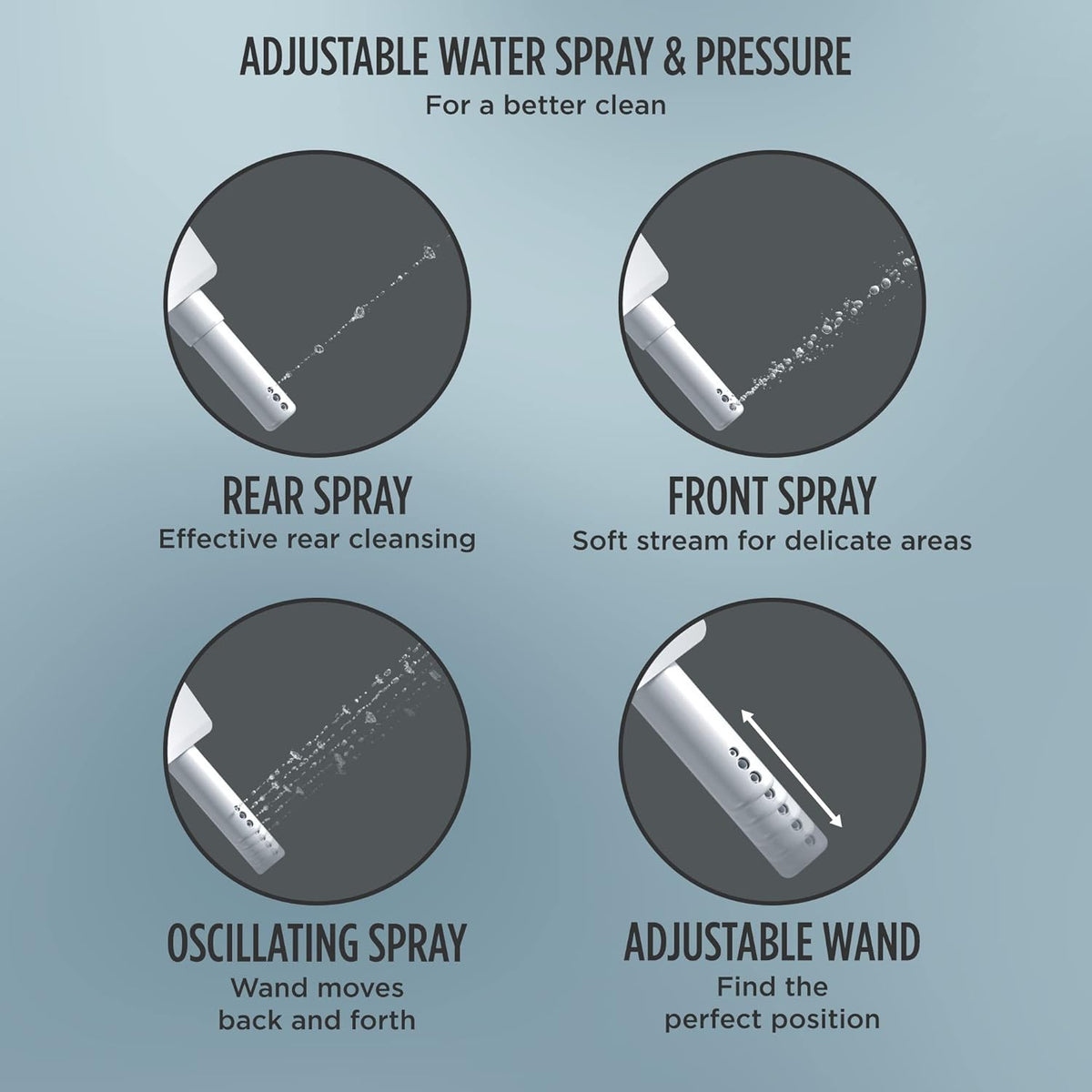

Adjustable Cleansing with Oscillating and Pulsating Spray

The KC2 washes front and rear with oscillating and pulsating features.

Spray position, water temperature and water pressure are adjustable from the panel.

Rear cleansing runs from 0.07 to 0.11 gallons per minute, front from 0.08 to 0.11.

The elongated and round versions share the same cleansing functions.

TOTO calls the spray gentle aerated warm water.

  • Oscillating and pulsating, front and rear
  • Position, pressure and temperature adjustable
  • Same functions, elongated and round
TOTO Washlet KC2 Bidet Toilet Seat

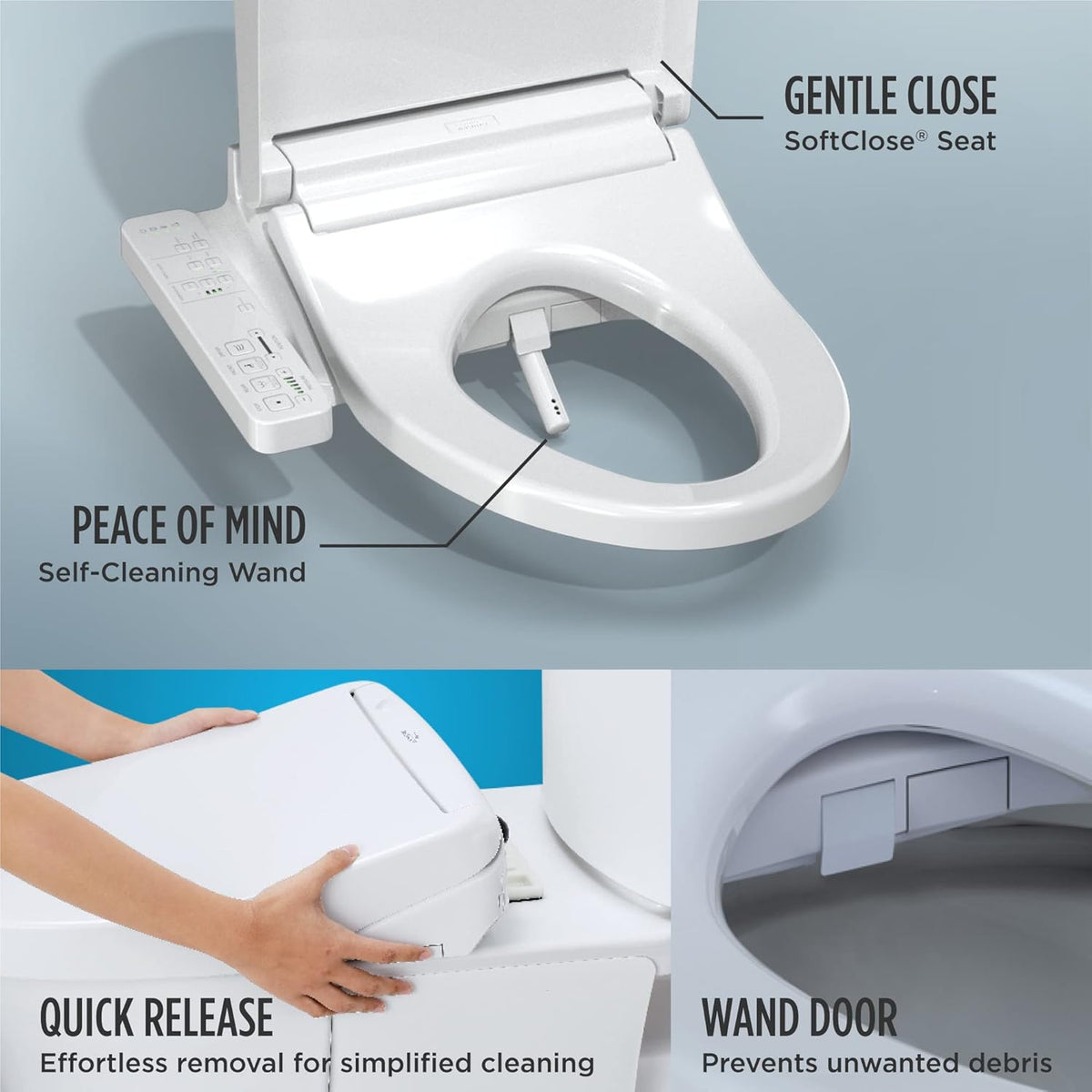

Self-Cleaning Wand & CLEAN RESIN Technology

The wand is cleaned inside and out before and after each use.

The wand and seat are CLEAN RESIN®, which TOTO says stays cleaner and is easier to maintain.

A docking station is part of the design, listed for cleaning and installation.

TOTO does not list EWATER+® or PREMIST® on this model.

A seamless seat design eliminates the gap where dirt would collect.

  • Wand cleaned inside and out
  • CLEAN RESIN® on wand and seat
  • Docking station in the design

What do you get with the TOTO Washlet KC2?

The TOTO Washlet KC2 is a standalone electronic bidet seat, sold on its own rather than as part of a toilet set.

It comes elongated as SW3024#01 and round as SW3023#01, in Cotton.

Every function is set from the arm control panel. TOTO's warranty on the standalone seat is One Year Limited.


TOTO Washlet KC2 Features

Feature Details
Cleansing
Rear Wash Rear washing.
Front Wash Front washing.
Oscillating Wash Oscillating wash mode.
Pulsating Wash Pulsating wash mode.
Adjustable Spray Position Spray position is adjustable.
Adjustable Pressure Water pressure is adjustable.
Adjustable Water Temperature Water temperature is adjustable, 95ºF–104ºF.
Comfort
Heated Seat Heated seat with temperature control, 82ºF–97ºF.
Warm-Air Dryer Three variable temperature settings, 95ºF–140ºF.
Cleaning + Hygiene
Self-Cleaning Wand Cleans itself inside and out before and after every use.
CLEAN RESIN® Keeps the wand and seat cleaner and easier to maintain.
Seamless Seat Seamless seat design eliminates the gap where dirt collects.
Controls + Convenience
Arm Control Panel Convenient arm control panel with illuminated buttons (round sheet).
SoftClose® Seat SoftClose® seat.
Docking Station Docking station for easy cleaning and installation.
Auto Energy Saver Adjusts the seat temperature when inactive.


TOTO Washlet KC2 Specifications

Specification Details
Model TOTO Washlet KC2
Part Numbers Elongated: SW3024#01 · Round: SW3023#01
Seat Shape Elongated and round
Color Cotton (#01)
Water Heater Type Not stated by TOTO
Power Rating AC 120V, 60Hz
Power Consumption 403 W (max 512 W) elongated · 409 W (max 520 W) round
Power Cord Length 3.93 ft (1.2 m)
Water Supply Pressure Min 7.25 PSI flowing / max 108.75 PSI static
Seat Temperature 82ºF–97ºF
Water Temperature 95ºF–104ºF
Dryer Temperature 95ºF–140ºF
Warranty One Year Limited Warranty
